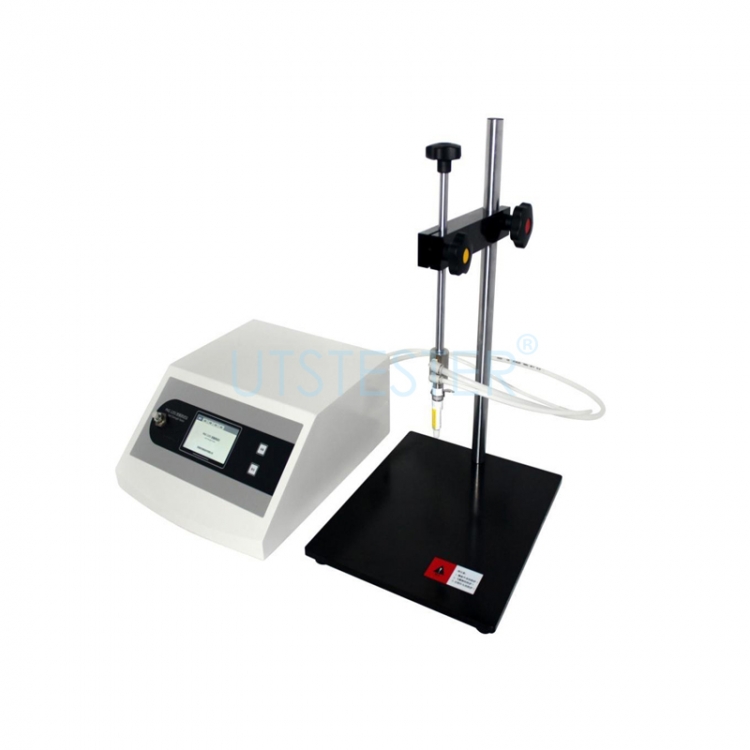

Seal strength tester for determining the ability of packages to withstand internal pressurization. For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates. For the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which may be empty or enclose solid product.
Features
1. Embedded system control, patent technology.
2. Touch screen operation.
3. Real color TFT LCD display.
4. Burst, standard creep, creep-to-burst test.
5. Open package test is available. (optional)

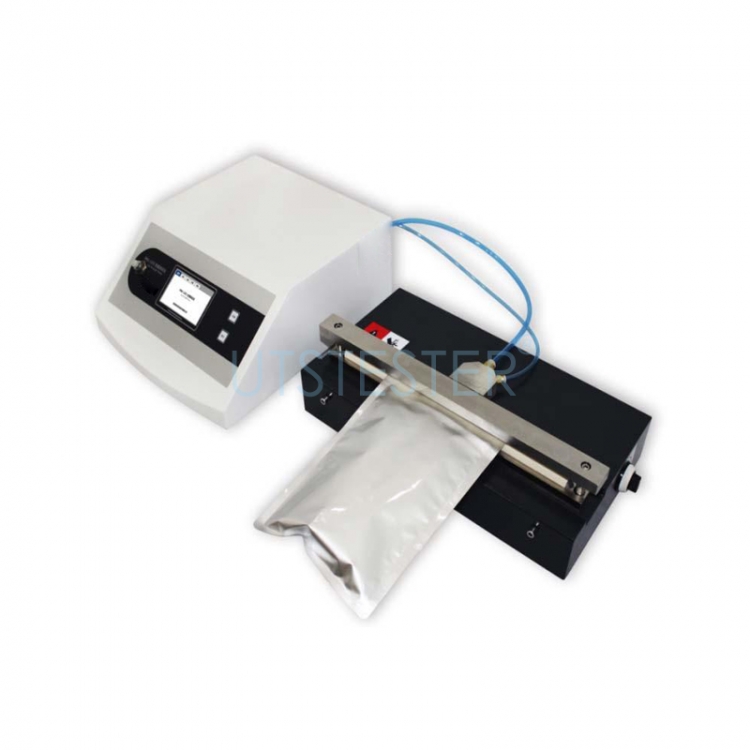

6. With and without restraining plates test is available. (optional)
7. High speed sampling for test accuracy warranty.
8. Over pressure protection.
9. Low power consumption.
10. RS232 communication port.
11. DSM computer software support. (optional)
Standards
ASTM F2054, ASTM F1140, ASTM F2095, ISO 11607-1, ISO 11607-2, GB 18454、GB 19741, GB 10440, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T1871, YBB 00162002, YBB 00252005

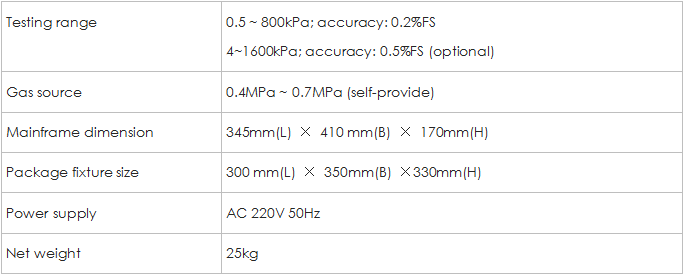

Key Parameters
Applications
Seal strength tester is used to nonporous film, foil, or laminate flexible pouches and foil sealed trays.
