Outsole Belt Flexing Tester H034

Outsole Belt Flexing Tester H034

  • Model :

    H034
  • Brand :

    UTS
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    SATRA PM133
Inquiry

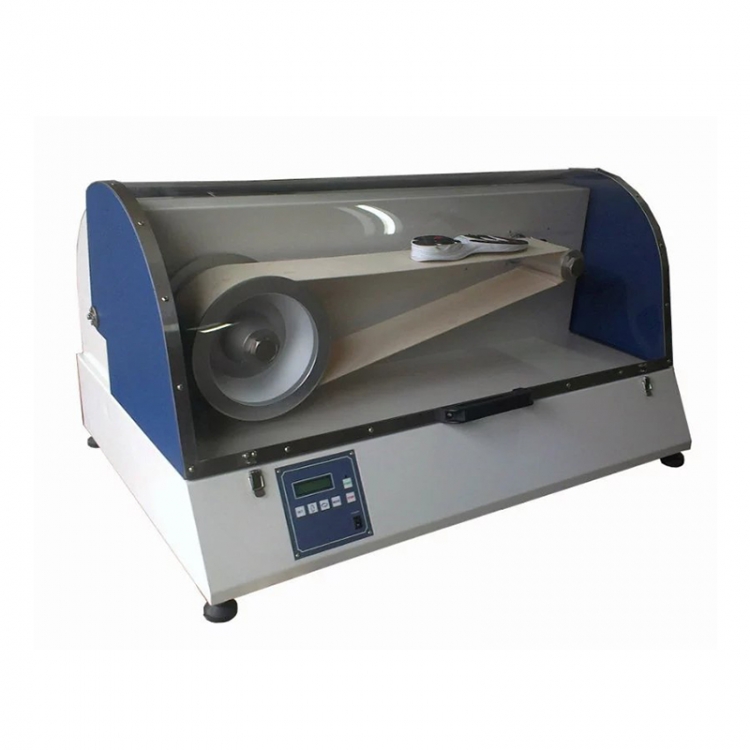

H034 Outsole Belt Flexing Tester is to determine resistance to flex property for shoes outsole. Simulating walking state with wearing shoes to do test, so as to measure sample shoes outsole the property of resistance to bend. Testing times can be set freely, machine stop to work automatically when test times reached. Available to test multiple samples simultaneously to improve working efficiency.

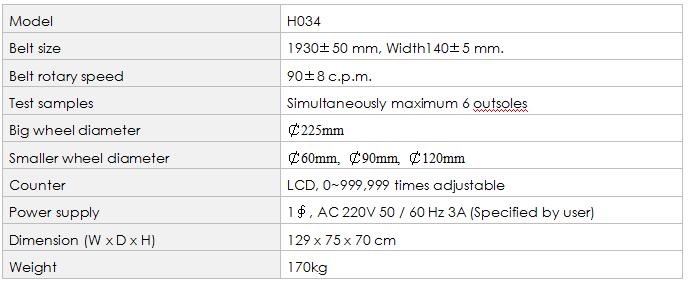

Key Specifications

H034 Outsole Belt Flexing Tester


Test Principle

To stick or sew the outsole of non leather materials onto canvas belt surface, and belt is installed on the rotor shaft. Start the machine and rotor shaft, outsole will be flexed. After flexing for a certain of times, inspect the damage and crack condition for outsole, so as to assess its resistance to flex property. The belt rotating due to big rotary wheel drives small rotary wheel. Three different small rotary wheels with different diameter are optional to meet test requirements.



Standards

SATRA PM133

1. Flexing times can be set on the panel, real impact times can be displayed as well.

2. With memory function. When haven’t reached preset testing times, if stop the testing manually, the present testing times will be saved until manually zero the testing times or continue to test. If switch off machine and restart the machine, real test times will be cleaned and presetting times will be the times set last time.

3. Machine stop automatically when test times completed. And counter stop counting.

4. Easy operation: Easy understandable operational process.

H034 Outsole Belt Flexing Tester is applicable to the determination of:

kinds of shoes outsole..
