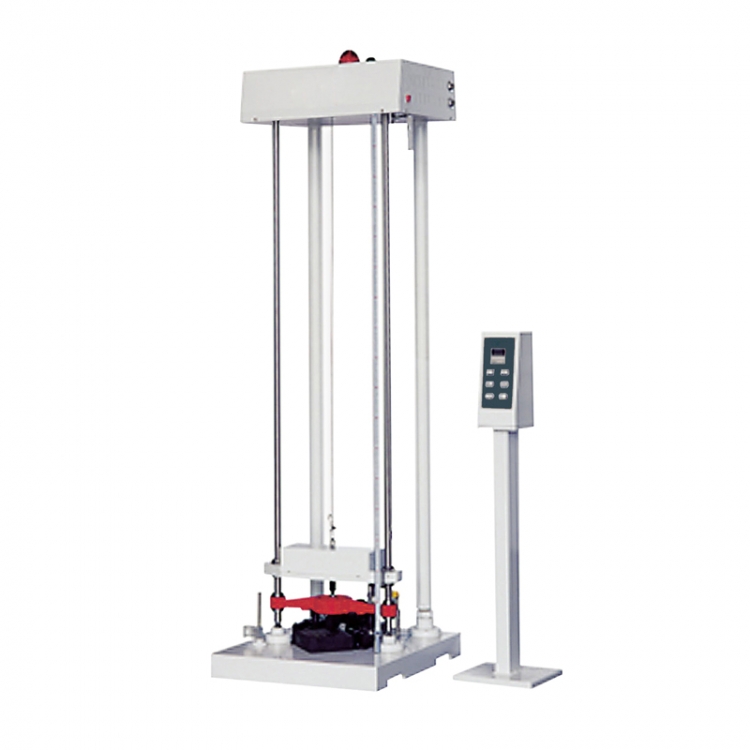

Safety Shoes Impact Tester H028

H028 Safety Shoes Impact Tester is to test resistance of steel head of safety shoes to impact and inspect its sinking degree to determine shoes safety quality.

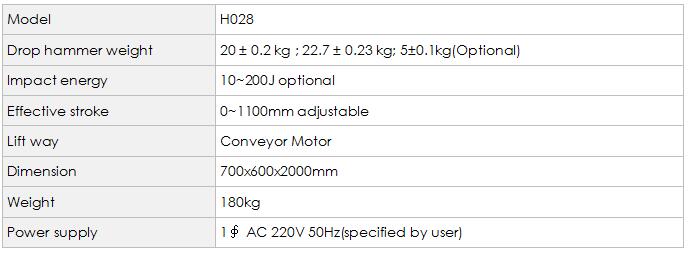

Key Parameters

Test Principle

This instrument control pendulum up and down via electromagnet, under specified speed to strike the steel head of safety shoes, so as to inspect strike resistance strength of steel head of safety shoes.

Standards

ANSI-Z4, ASTM F2412-11, CSA-Z195, BS EN-344, ISO-20344, LD-50, EN ISO 20344:2004, LD50-1994, EN12568-2010, CNS 6863-82, GB 4014-1983, JIS-T8101:2000

1. Testing times can be set on the panel, real impact times can be displayed as well.

2. With memory function. When haven’t reached preset testing times, if stop the testing manually, the present testing times will be saved until manually zero the testing times or continue to test. If switch off machine and restart the machine, real test times will be cleaned and presetting times will be the times set last time.

3. Machine stop automatically when test times completed. And counter stop counting.

4. Easy operation: Easy understandable operational process.

H028 Safety Shoes Impact Tester is applicable to the determination of:

Safety shoes.
