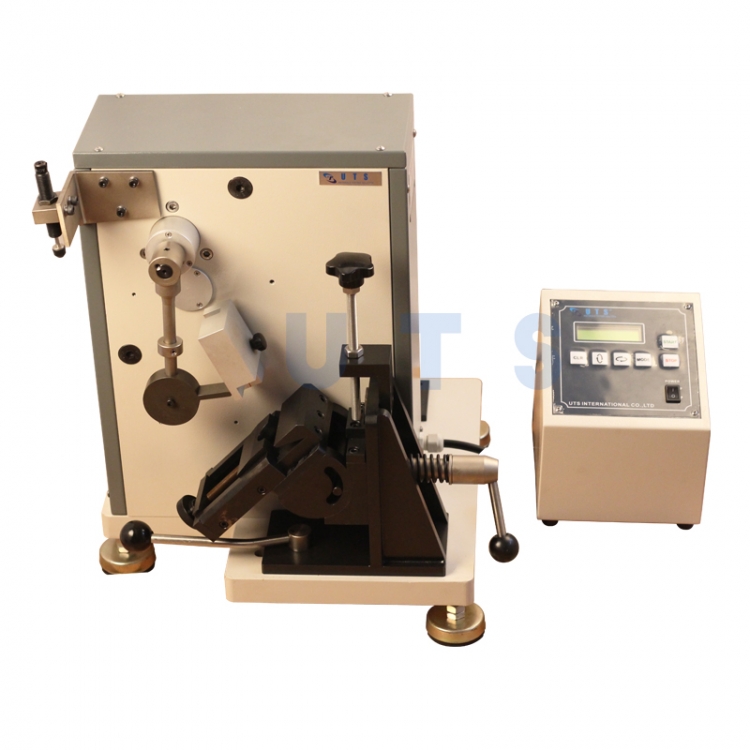

Heel Fatigue Tester H026

H026 Heel Fatigue Tester is to test resistance to repeated impact property for medium and high heels of female’s shoes at wearing state.

Key Specification

Test Principle

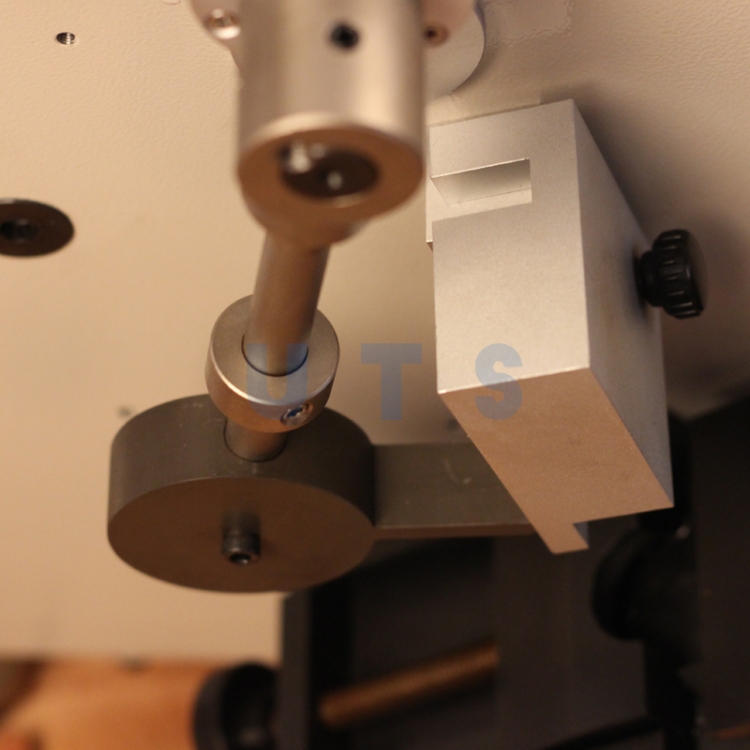

Under once per second, free fall motion, 0.68J energy, pendulum bob fall down to the vertical position from horizontal position, this machine impact female’s shoe heel until heel rupture / breakage or required fatigue times reached.

Standards

QB/T 2864  BS-5131  SATRA TM21

1. Impact times can be set on the panel, real impact times can be displayed as well.

2. With memory function. When haven’t reached preset testing times, if stop the testing manually, the present testing times will be saved until manual zero the testing times or continue to test. If switch off machine and restart the machine, real test times will be cleaned and presetting times will be the times set last time.

3. Machine stop automatically when test times completed. And counter stop counting.

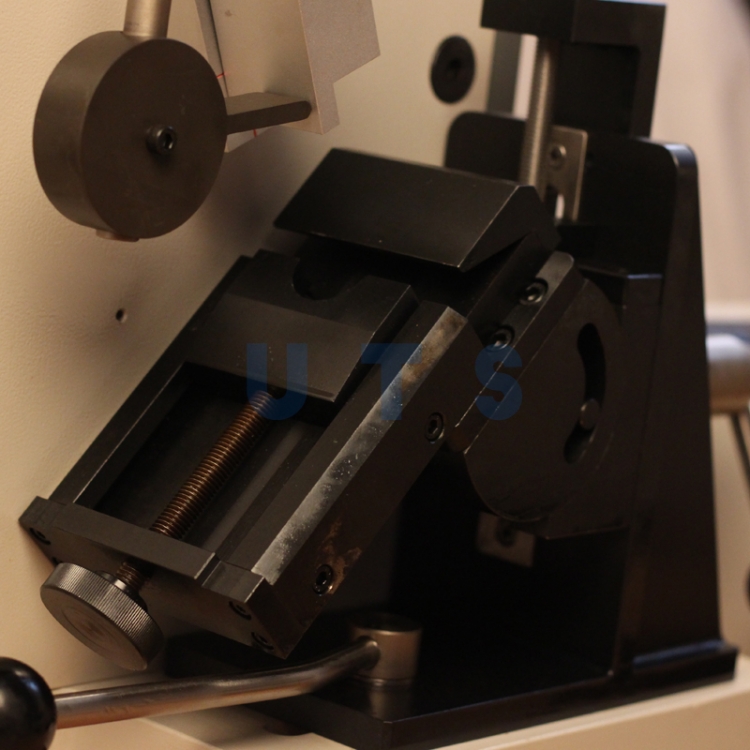

4. Equipped with fixture position line device, which ensure the sample will be impact vertically .

H026 Heel Fatigue Tester is applicable to the determination of:

medium and high heels of female’s shoes at wearing state.
