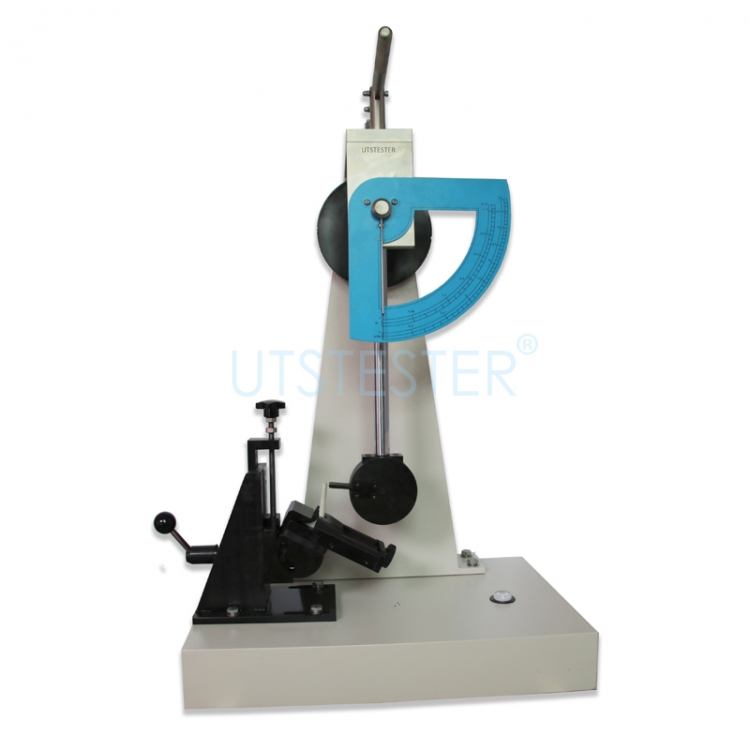

Heel Impact Tester H025

H025 Heel Impact Tester is to determine resistance of sole to impact load. When test, each time increase impact energy until heal break / rupture and read impact index.

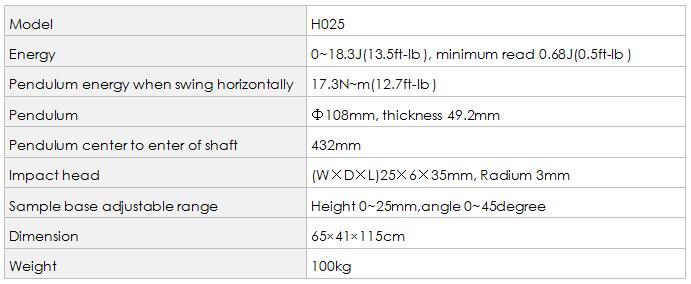

Key Parameters

Test Principle

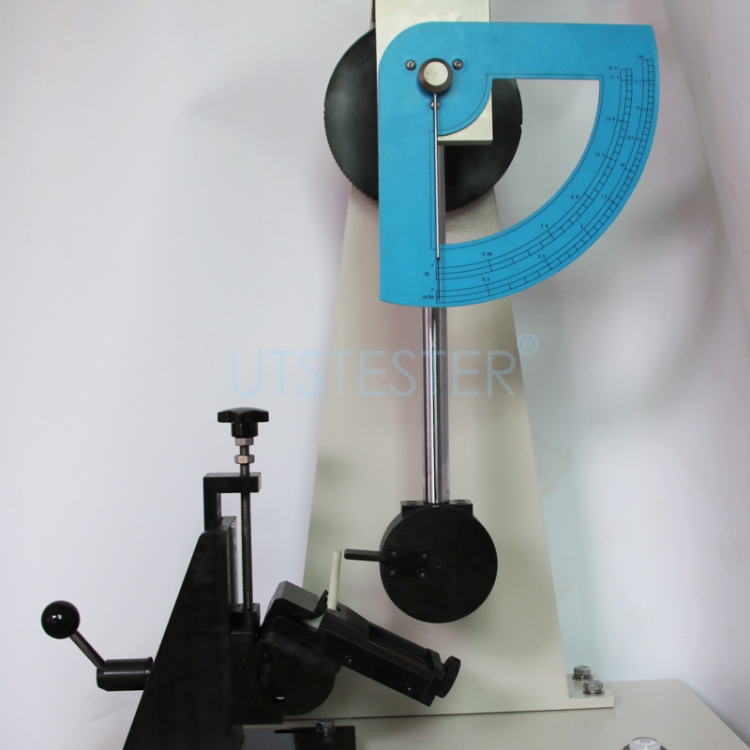

Place heel upwards vertically and fix it onto the fixed board. Increasing impact hammer energy from low to high to impact heel until heel damaged or bend or reach the maximum energy. This test energy result is the maximum strength the heel can bear when heel got occasional impact.

Standards

BS-5131, ISO 19953, QB/T 2863, SATRA TM20

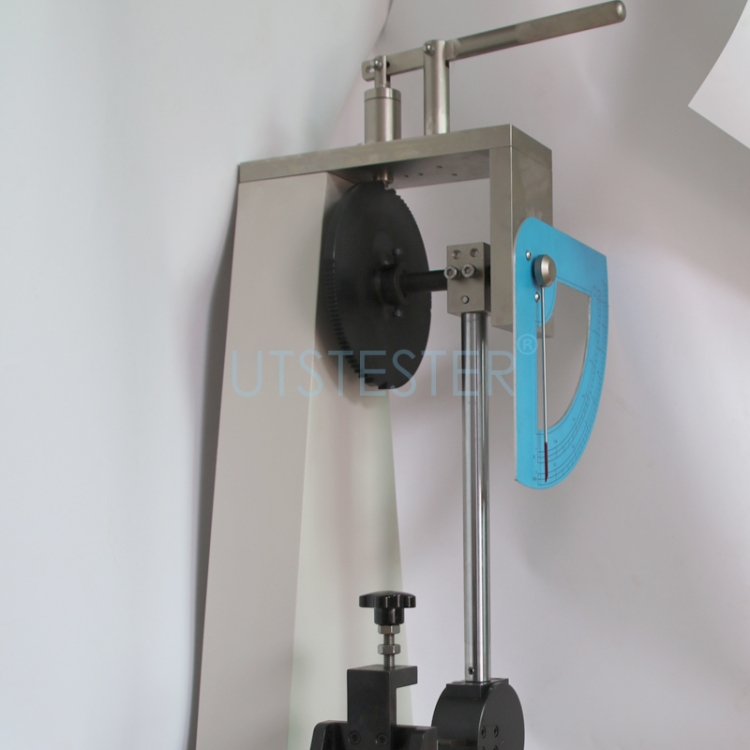

1.Durable: Impact head adopts SKD 11 with strong resistance to impact ability to reduce impact lose. Wheel gear adopts 45# steel with strong resistance to abrasion ability to reduce gear lose, so as to improve service life.

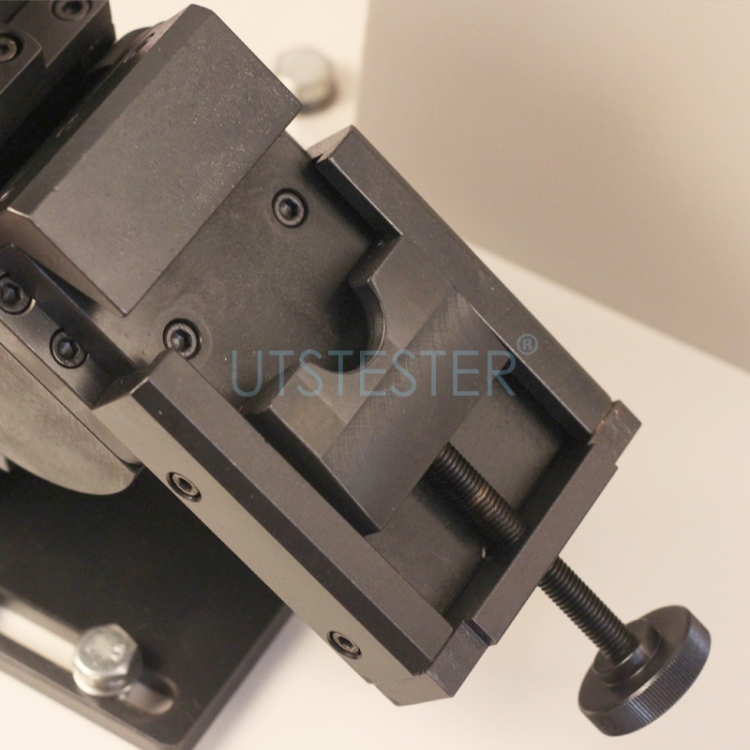

2.Harmony: Fixtures device is able to move up and down and rotate to a certain of angle to make the clamping position have better harmony.

3.Easy operation: Easy understandable operational process.

4.Accuracy: Energy accurate to 0.68J to make test results more accurate.

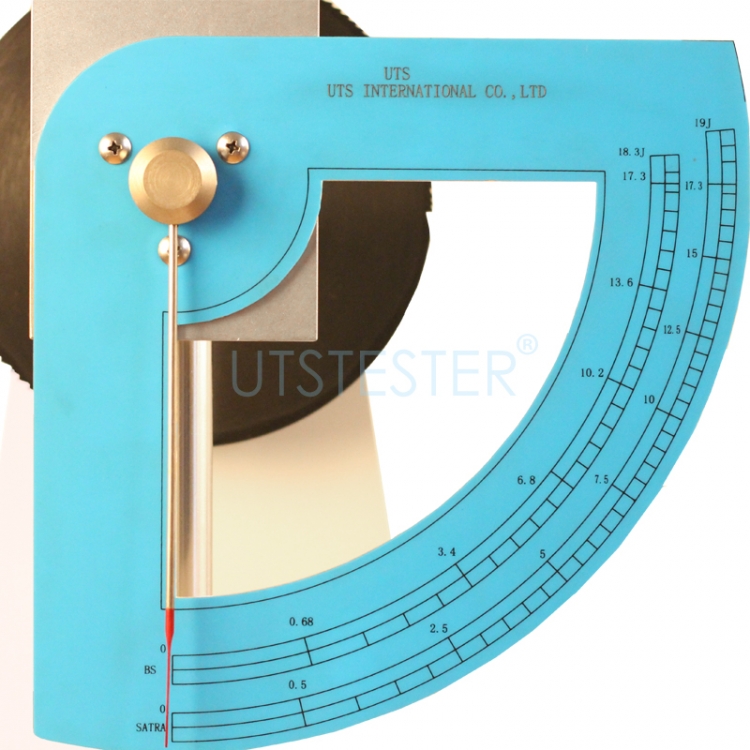

5.5. Substantivity: Test results can be read out directly from scale.

H025 Heel Impact Tester is applicable to the determination of:

All kinds of female high heel shoes with heel above 38mm.
