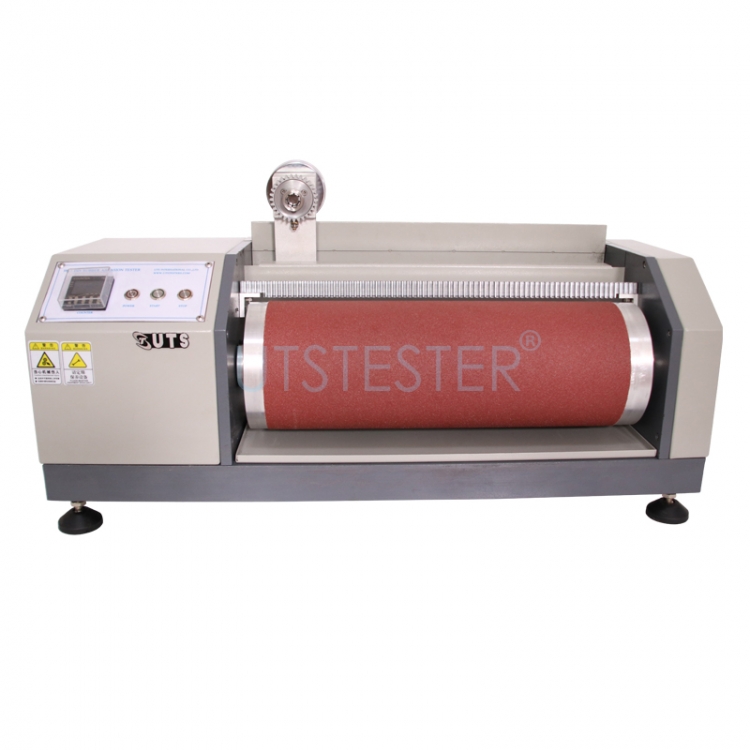

DIN Abrasion Tester H015

Din abrasion tester is mainly to test the abrasion-resistance to specimen by specify sand papers, and measure the condition

of abrasion, loss of weight, loss of volume, thickness of abrasion etc. to compare the result of standard rubber and obtain result.

With abrasion and tearing function, this device is applicable for testing elastic material, rubber, tire, conveyor belt, shoe sole,

transmission belt, and shoe sole, soft synthetic leather, etc.

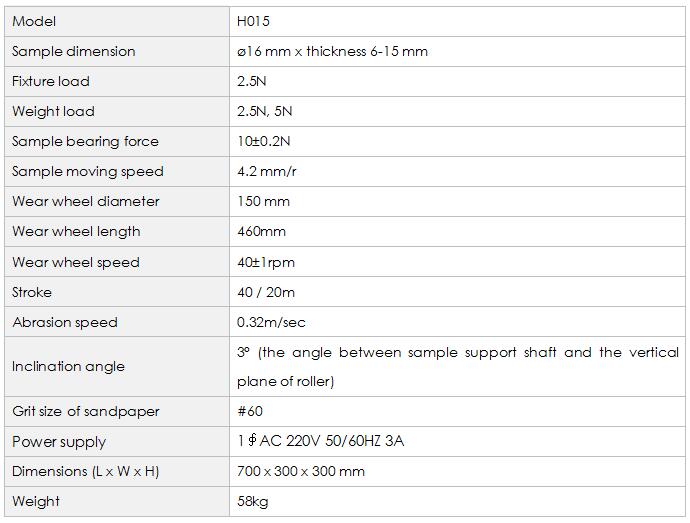

Key Parameters

Test Principle

The abrasion resistance is measured by moving a test piece across the surface of an abrasive sheet mounted to a revolving drum,

and is expressed as volume loss in mm3 or abrasion resistance index in percent. For volume loss, a smaller number indicates better

abrasion resistance, while for the abrasion resistance index; a smaller number denotes poorer abrasion Resistance.

Standards

DIN-53516, GB/T9867, BS-903, GB/T 9867, ISO-4649, JIS-K6264, SATRA TM174,

ASTM-D5963, QB/T 2884-2007, ISO 20871:2001, BS EN 12770:2000

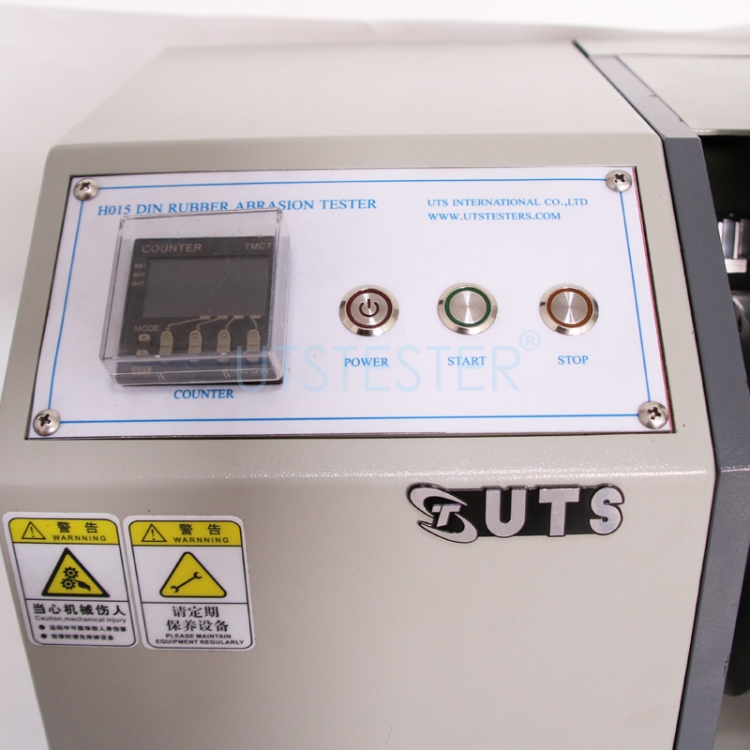

1. Testing times can be set on the panel, real impact times can be displayed as well.

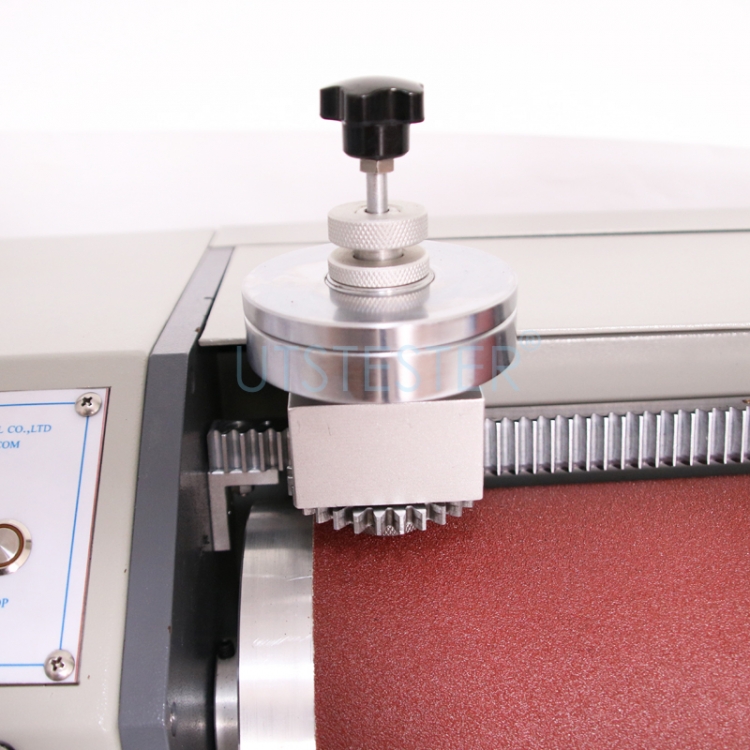

2. Din abrasion tester provides a specific load to rub the material to evaluate the abrasive

character such as outsole of shoes, track belt, tire conveyor.

3. Machine stop automatically when test times completed. And counter stop counting.

4. Easy operation: Easy understandable operational process.

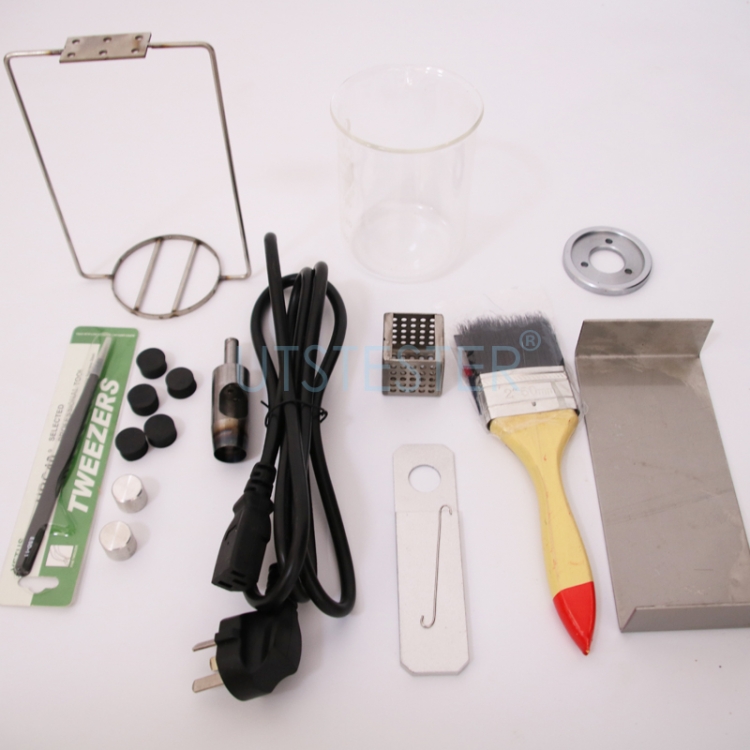

5. Cooperate with standard rubber and specific gravity gear to accurately calculate the loss of abrasion.

H015 DIN Rubber Abrasion Tester is applicable to the determination of:

the abrasion-resistance to specimen by specify sand papers, and measure the condition of abrasion, loss of weight, loss of volume, thickness of abrasion etc.
