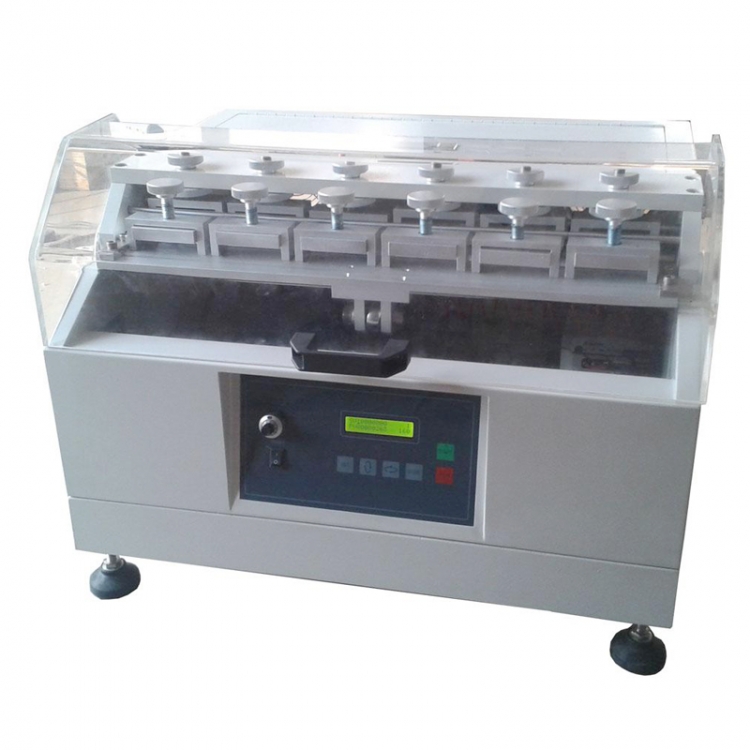

Low Temperature ROSS Flexing Tester H017B

Flexing tests are sometimes required to be carried out at low temperatures below 0°C.

This low temperature version of the Ross flex test is built into a low temperature cabinet. It is used for the flex testing of sole unit samples(including rubber products, shoe soles, PVC, PU, TPR foam and other materials) to assess the effect of flexing under low temperature conditions. After repeatedly flexing and bending, check its degree of damage, crack and deterioration. It has 12 stations for small samples but can also accommodate larger samples by adjusting the mechanism.

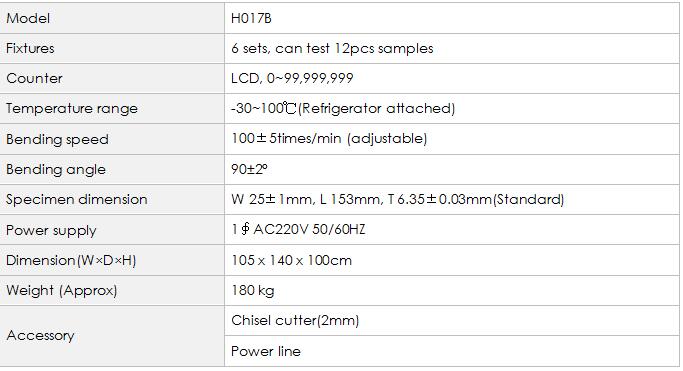

Key Parameters

Standards

ASTM D1052, SATRA TM60, ISO 5423

Electrical control and drive systems outside the freezer area where moisture cannot impair electrical safety, which ensures maximum operator safety. The control system cosists of a digital temperature controller which can be set to achieve the required temperature from ambient down to -30°C, as well as a counter indicating the flexing number carried out. Machine stop automatically when test completed by counter.

H017B Low Temperature ROSS Flexing Tester is applicable to the determination of:

rubber, shoe soles, PVC, PU, TPR foam and other materials.
