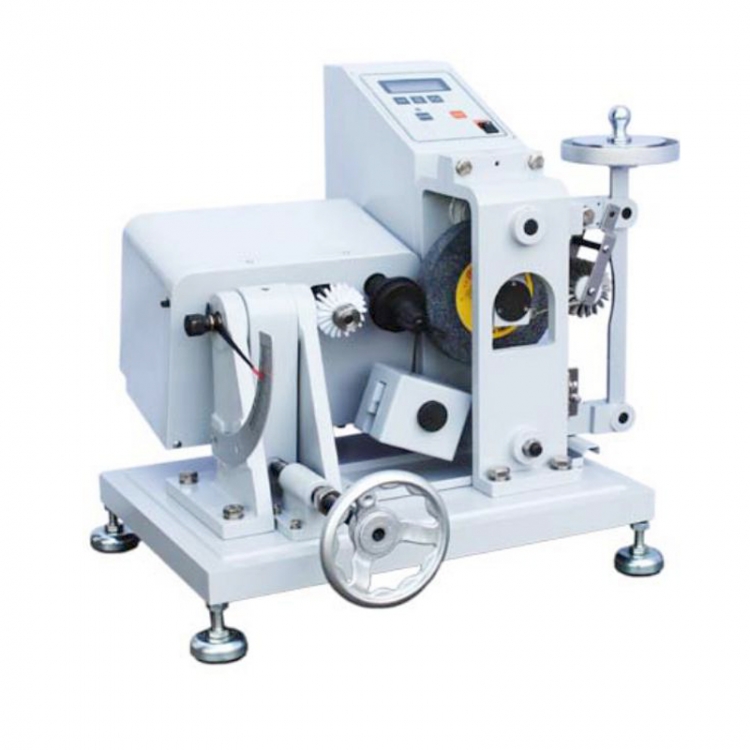

AKRON Abrasion Tester H016

UTS H016 Akron Abrasion Tester combines with balance to use. Designed to test the abrasion resistance property of shoe sole, tire which is made of rubber and elastic materials. Counter adopts electronic automatic type, able to set abrasion revolution, machine stop automatically after reach preset revolution. It is to determine abrasion resistance property via measure the abrasion volume after sample wear grinding wheel.

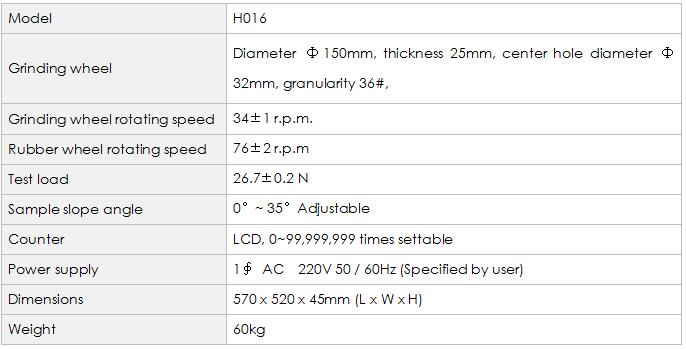

Key Specification

Test Principle

It is to determine abrasion resistance property via measure the abrasion volume after sample wear grinding wheel.

Standards

GB/T 1689

1. Testing times can be set on the panel, real impact times can be displayed as well.

2. With memory function. When haven’t reached preset testing times, if stop the testing manually, the present testing times will be saved until manually zero the testing times or continue to test. If switch off machine and restart the machine, real test times will be cleaned and presetting times will be the times set last time.

3. Machine stop automatically when test times completed. And counter stop counting.

4. Easy operation: Easy understandable operational process.

H016 Akron Abrasion Tester is applicable to the determination of:

the abrasion resistance property of shoe sole, tire which is made of rubber and elastic materials.
