Safety insole board folding tester H094

Safety insole board folding tester H094

  • Model :

  • Brand :

  • Certificate :

    CE, ISO 17025, ISO 9001
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

  • Port Of Dispatch :

    China Port
  • Standards :

    ISO 203445 ; EN 12568

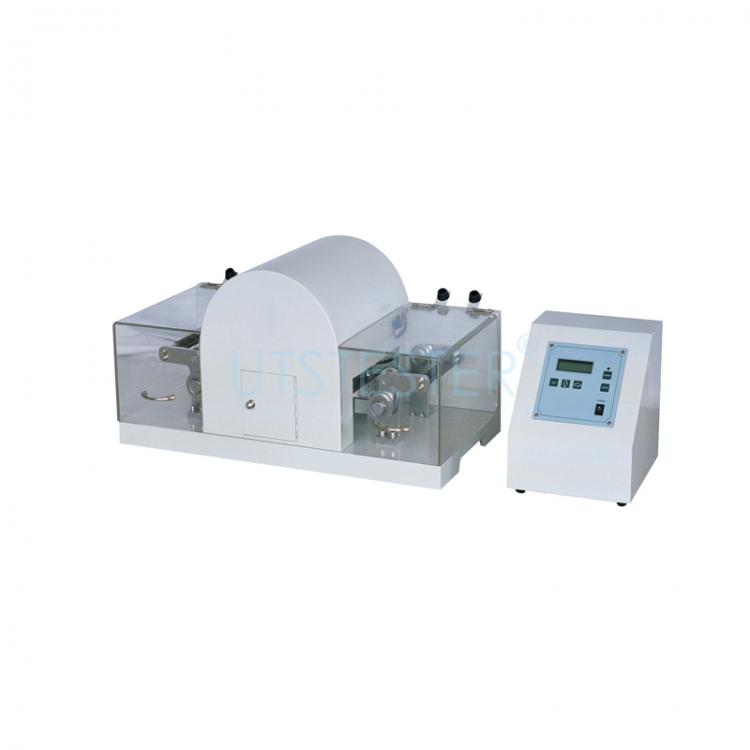

Safety insole board folding tester used for measuring the folding resistance of safety insole board.


1. Safety insole board folding tester has two clamps, which can be used to make two samples at the same time.

2. The machine has automatic stop function. When the set number of times arrives, the machine will stop automatically.

3. The machine has the function of manual adjustment and reset.

4. The machine is equipped with a protective cover to prevent the test piece from flying out at high speed and harming the operator.

Test principle:

Fix and clamp the middle part of the insole board, 70mm away from the clamping place (the front end of the insole board), and fix with two pieces

The fixed bar clamps the specimen, and the fixed bar can do reciprocating winding around the clamping position.


ISO 203445.9 ; EN 12568:7.2.3

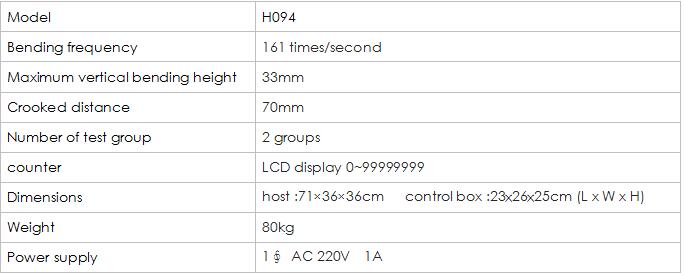

Key Parameters


safety insole board
