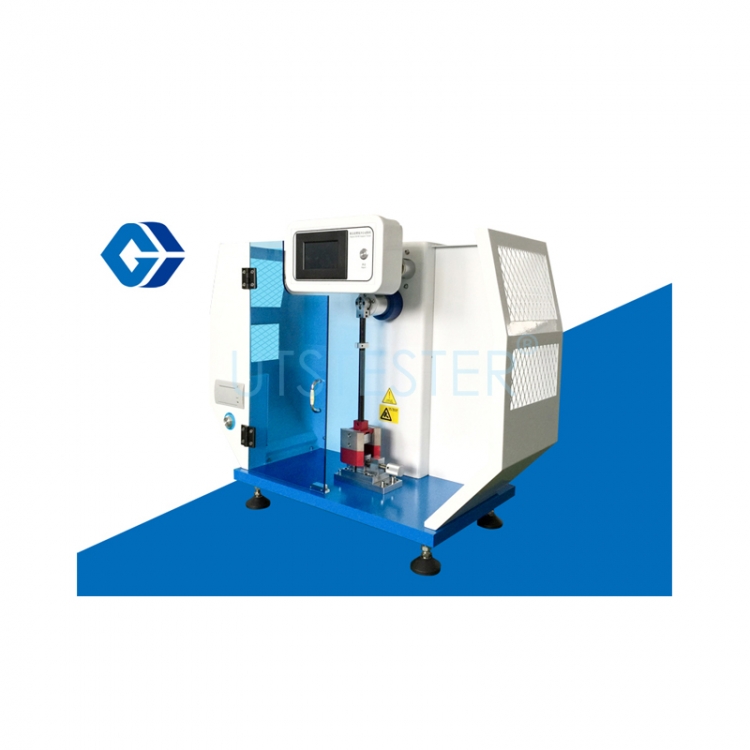

ASTM D256 PVC izod impact tester HP04

PVC Izod Impact Tester is used to test the impact toughness of non-metal materials including  plastic, reinforced nylon, glass steel, ceramics, plastics appliance, cast stone, electrical insulating materials, etc.

Pendulum impact testing machine is a common device in scientific research units, universities, non metal materials manufacturers to carry out quality inspection. This machine is a kind of simple structure, convenient operation, high precision testing instrument. Digital impact test machine adopts high precision encoder technology, with high precision, good stability and wide measurement range etc. Digital measurements shoe the impact strength and the average energy loss, automatic correction, print test reports and other functions.

Standards

ISO180—2000

GB/T1843—2008

JB/T8761—1998

ASTM D256-2010

Features

1.High precision intelligent controller, and is equipped with liquid crystal display, intuitive, accurate reading of the data.

2.It is the first domestic carbon fiber rod (patented), , increase the rigidity in the direction of impact, and the impact quality is maximum concentrated on the centroid of the pendulum, which is truly no vibration impact test, and increased service life.

3.Adopt the imported digital encoder with high resolution, the accuracy of angle measurement is higher and more stable.

4.The aerodynamic principle of impact hammer and imported ball bearing, greatly reducing the friction loss caused by mechanical.

5.Automatic calculate the final result, 12 groups of testing data can be saevd and calculated the average.

6.The IZOD impact test machine can choose the operation interface in English & Chinese, test results can choose J/m, KJ/, kg-cm/cm, ft-ib/in square meters, etc.

7.The built-in printer is able to print the test data

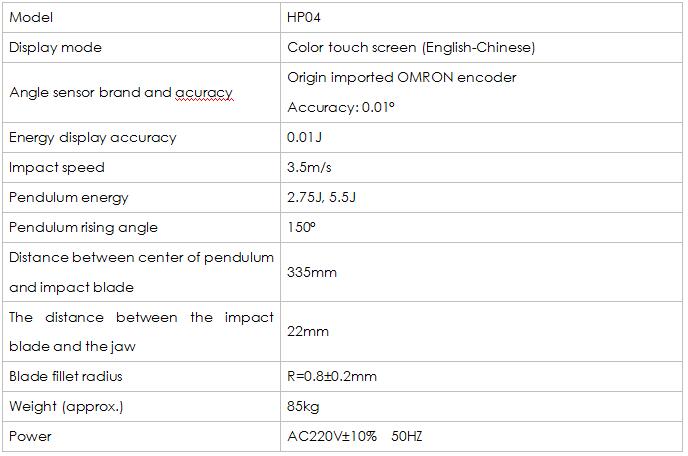

Key Specifications

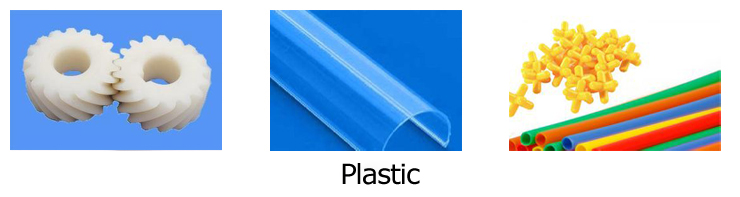

Applications

it is apply to plastic, reinforced nylon, glass steel, ceramics, plastics appliance, cast stone, electrical insulating materials, etc.
