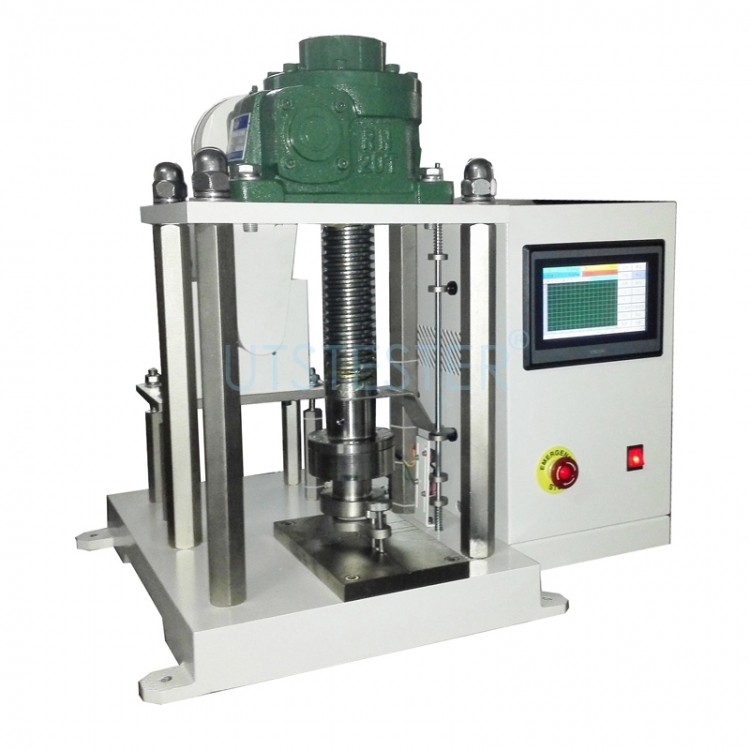

Safety Footwear Compression and Puncture Tester H023

Safety Footwear Compression and Puncture Tester H023

  • Model :

    H023
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS,etc
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    EN ISO 20344 , EN12568 , EN 344-1 , EN 388 ASTM F2412 , ASTM F2413 ANSI Z41, LD50, AS/NZS2210.2 GB/T 20991 , GB/T 12017 BS-953
Inquiry

Support Services

Safety Footwear Compression and Puncture Tester H023

Application

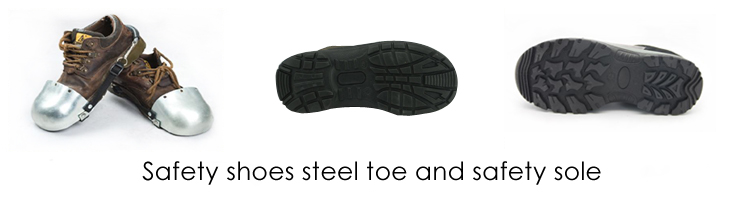

To determine the compression strength of safety shoe steel toecap

and resistance to puncture property for safety shoes’ sole.


Test Principle

The steel head of the safety shoe is placed between the upper and

lower pressure plates, and then the specified pressure is applied to

detect the degree of sinking of the steel head so as to ensure the

safety of the toes when wearing.


Standards

EN ISO 20344 , EN12568 , EN 344-1 , EN 388

ASTM F2412 , ASTM F2413

ANSI Z41, LD50, AS/NZS2210.2

GB/T 20991 , GB/T 12017

BS-953


Features

1. With the function of limit protection of mechanical beam.

2. The stress - strain, stress - time, intensity - time and other data

can be selected according to the requirements.

3. Potentiometer speed regulation, can be controlled quickly, realizing

the positioning function of various clamping displacement.

4. Adopt the famous brand load cell, repeatability error is 0.01%,

allowable temperature range - 20 ~ 70 ℃, 100% safety coefficient ,

120% ultimate overload.

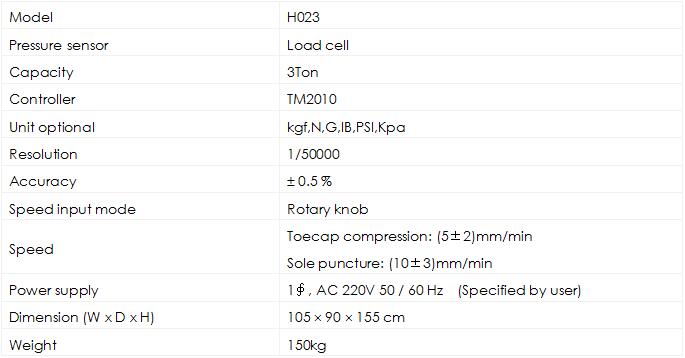

Key Specifications

Safety Footwear Compression and Puncture Tester H023



Standard Accessory

Safety Footwear Compression and Puncture Tester H023


Application

Safety Footwear Compression and Puncture Tester H023
