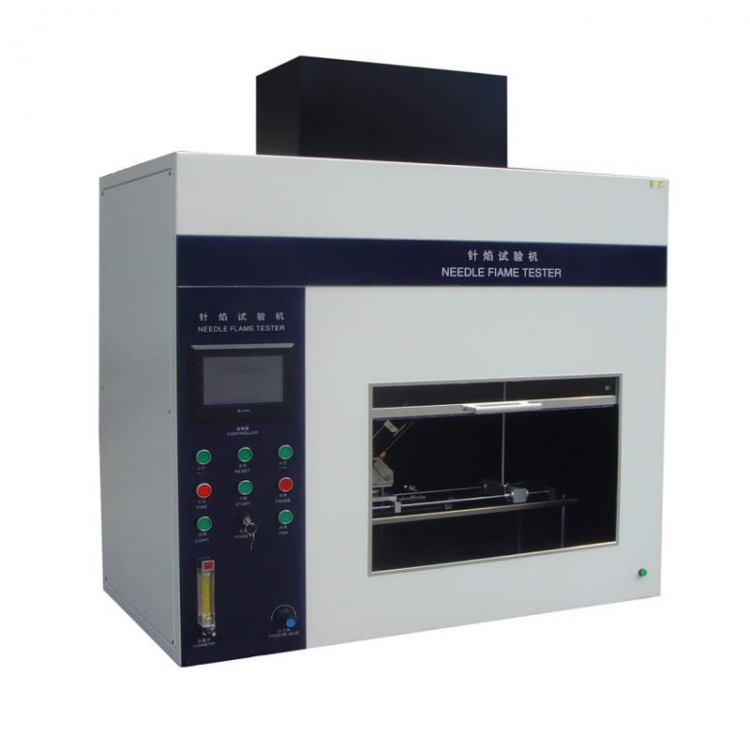

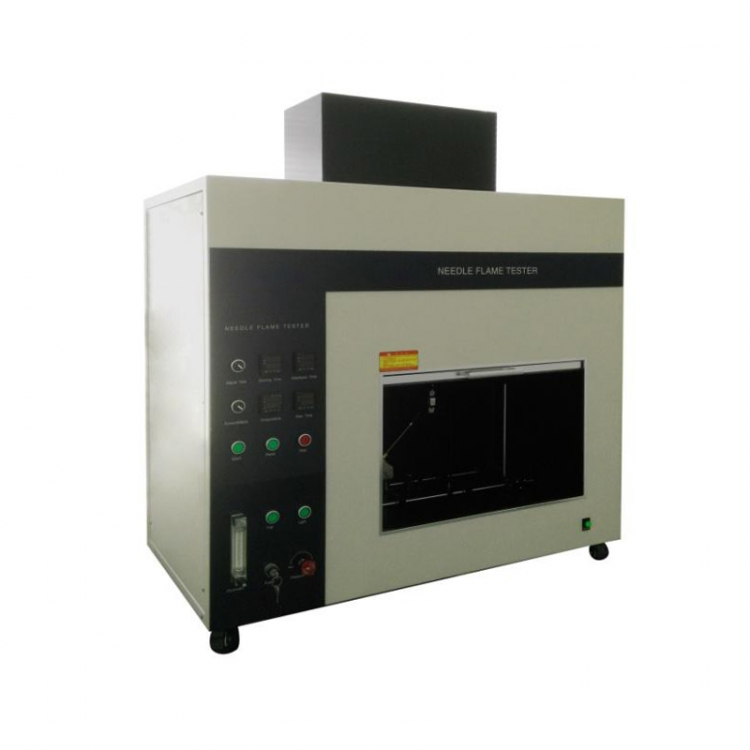

Needle Flame Tester TF02

TF02 Needle Flaming Tester is made based on standards IEC60695, GB5169. Mainly used to simulate products internal generates small flame under the breakdown situation, and assess its ignition hazard. Applicable for testing flammability of electronic electrical equipment and its components and elements, solid electrical insulation or other combustible materials. Needle flame test method can be used for the situation when small parts or component are not suitable to do glow wire test or horizontal vertical combustion test method.

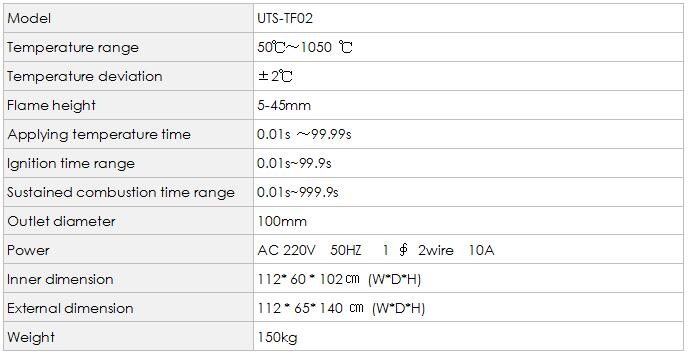

Key Parameters

Support Services

UTS provide the complete support for the full life of your TF02 Needle Flaming Testing Equipment:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Working Principle

Due to breakdown situation, for example, A fault current that flows through the leakage path, overheating of components or parts, and poor contact, are possible to lead to flame and shoot into nearby components. Needle flame test is to simulate internal sample generates small flame under breakdown situation, using simulating technology to assess its ignition hazard. Needle flame test method can be used for the situation when small parts or component are not suitable to do glow wire test or horizontal vertical combustion test method. If sample is ignited when doing glow wire test , then need to conduct needle flame test.

Standards

IEC 60695-2-2

GB/T5169.5

1. Adopt 2mm thick galvanized cold plate which shaped by Germany trumpf CNC machining center, with beautiful and high grade appearance.

2. Outdoor grade powder baking technology, which enhance anti-smog corrosion resistance ability. High quality and without color changing.

3. Equipped with German imported temperature sensor used in airplane and resistance to high temperature with longer service life.

4. High precision temperature control technology to control temperature error within 2℃.

5. Step motor control stroke, accurate location and without buffer.

6. With the function of program parameter setting, the test parameters can be programmed to be stored in the controller

Needle flaming testing Machine is applicable to electrical products, components, parts and components of electrical appliances, such as terminal, centrifugal switch and socket.
