Crush Tester A015

A015 Crush Tester is designed to test Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT), Pin Adhesion Test(PAT) and Concora Medium Test(CMT). It’s a basic equipment to test the crushing strength for various papers, including corrugated board, tubes, paper and plastics.

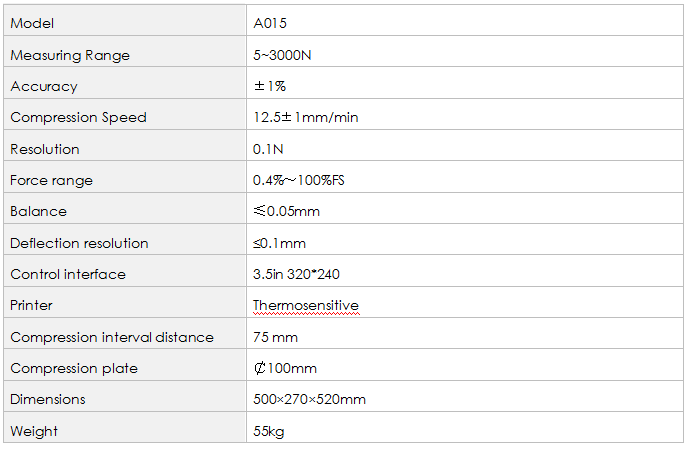

Key Parameters

Support Services

UTS provide the complete support for the full life of your A015 Crush Tester:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Standards

ISO 3035       ISO 3037        ISO 7263

TAPPI-T472     JIS-P8126        TAPPI 811

1.Servo motor control, low noise. high precise.

2.Provided with auto return function after test finished, to determine crushing force and save test data automatically.

3.Available to input related data and auto convert ring crush strength and edge crush strength.

4.Available to set force, time directly and machine stop automatically when test finished.

5.Display the pressure force, deflection and crush graph at real time on the LCD display screen.

6.Equipped with thermal micro-printer, convenient to get the result without noise.

7.Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.

8.Adopting high precision weighing sensor fixed on upper platen, to ensure collecting data rapidly and accurately.

9.Adopting high-speed ARM processor, to ensure the high degree of automation and intelligentize, very easy to operate. It has power data processing function, can get all the statistical results.

10.Finishing test, the measuring head can revert automatically.

A015 Crush Tester is applicable to the determination of:

various papers, including corrugated board, tubes, paper and plastics.
