Sharp Point Tester T004

  • Model :

    T004
  • Brand :

    UTS
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    EN 71-1 16 CFR 1500 ASTM F 963 GB 6675-2
Inquiry

T004 Sharp Point Tester is to determine whether accessible sharp points on child-related products are likely to cause injury.

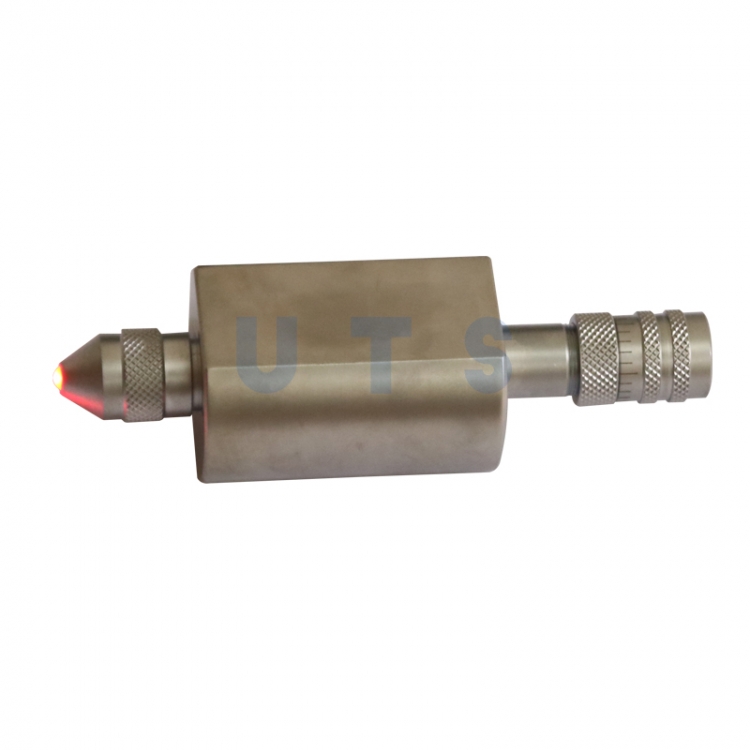

If the accessible sharp point penetrates a specified depth into the small rectangular opening of the tester, the LED is illuminated to indicate that the point is unacceptably sharp.

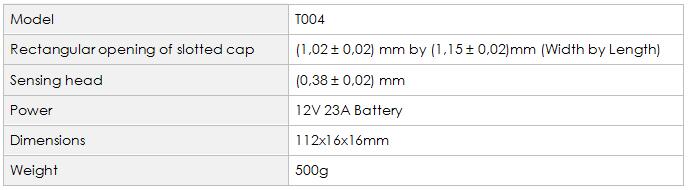

Key Specifications

T004 Sharp Point Tester


Test Principle

Put the sharp point tester onto accessible sharp point articles, detect whether the sharp point can insert the slot of sharp point tester and reach specified depth. If the tested point inserts testing slot and penetrates a distance of 0,50 mm or more into the gauging slot, causing the indicator lamp to light, and the point maintains its original shape while under a force of 4,5 N, the point tested is considered to be a sharp point.



Standards

EN 71-1

16 CFR 1500

ASTM F 963

GB 6675-2


T004 Sharp Point Tester  is applicable to the determination of:


Wooden toys and toys suitable for 96 months or under 96 months children.
