Kinetic Energy Tester T011

T011 Kinetic Energy Tester is used to test the maximum energy produced from projectile toy shoot bullets or launched bows, so as to evaluate ejection articles will cause injury for children or not.

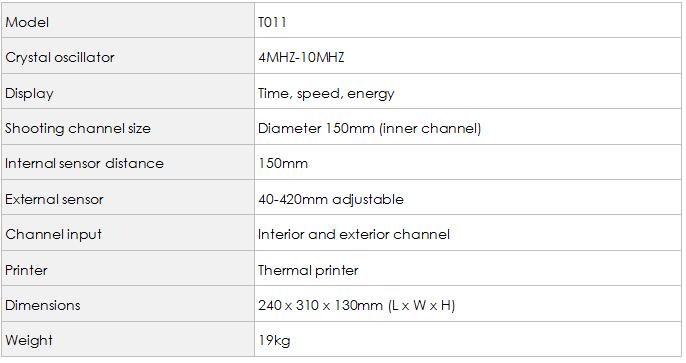

Key Specifications

Test Principle

1. Kinetic energy of projectiles

Measure the kinetic energy of the toy under normal conditions of use by a means that is capable of determining the energy to an accuracy of 0,005 J. Take five measurements. Take the kinetic energy as the maximum of the five readings. Ensure that the readings are taken in such a way that the maximum energy is determined.

If more than one type of projectile is supplied with the toy, the kinetic energy of each type of projectile shall be measured.

2. Kinetic energy of bows and arrows

For bows, use an arrow intended for the bow and stretch the bow string, using a force of 30 N or less, as far as the arrow allows but to no more than 70 cm.

Measure the kinetic energy of the toy under normal conditions of use by a means that is capable of determining the energy to an accuracy of 0,005 J. Take five measurements. Take the kinetic energy as the maximum of the five readings. Ensure that the readings are taken in such a way that the maximum energy is determined.

Standards

ISO 8124-1

GB 6675-2

EN 71-1

ASTM F963

Features

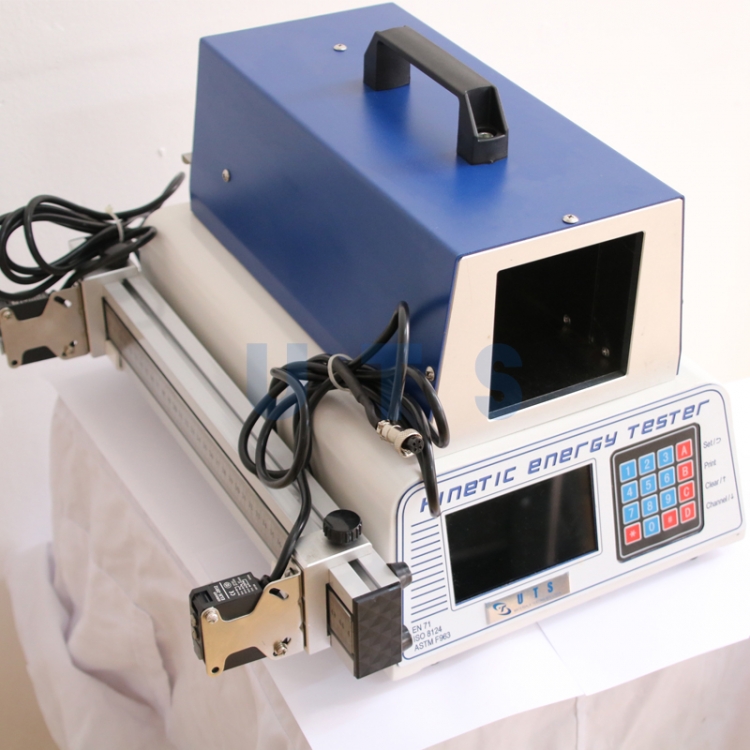

1.Equip with 2 test channels including interior sensor channel and exterior sensor channel to adapt different size of toys.

2.Adopts microcomputer control to achieve automatically calculate test speed and kinetic energy after input weight of testing samples.

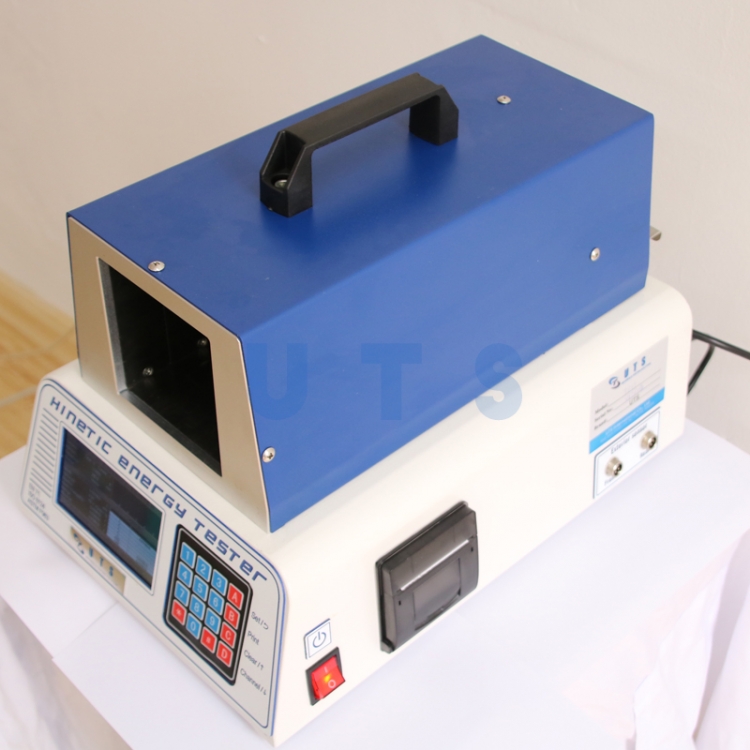

3.Equip with thermal printer to print out test results directly.

T011 Kinetic Energy Tester  is applicable to the determination of:

projectile toy shoot bullets or launched bows.
