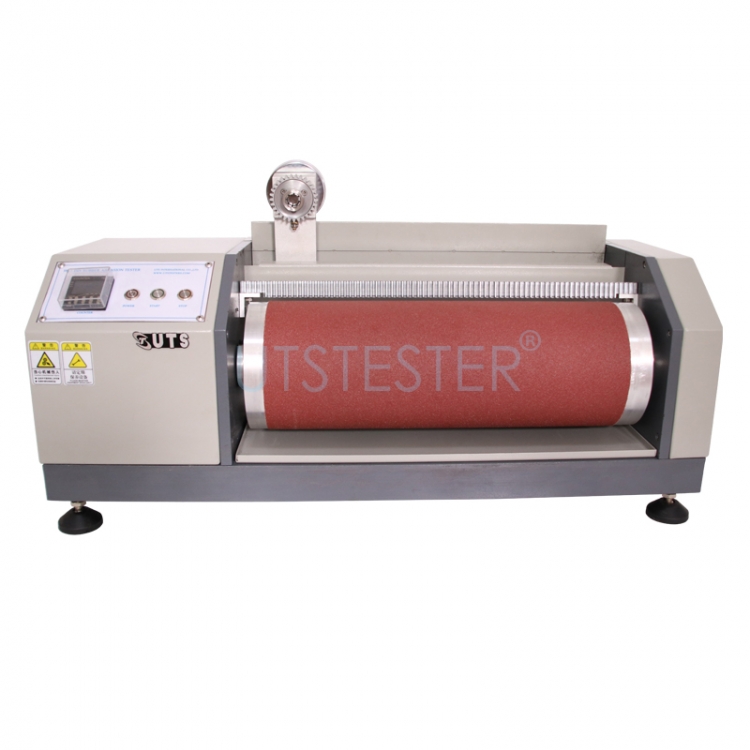

DIN Abrasion Tester H015

Application

The machine is used to test rubber and polyurethane to assess its wear resistance in

everyday wear. The testing principle is very simple.

Structure & Principle

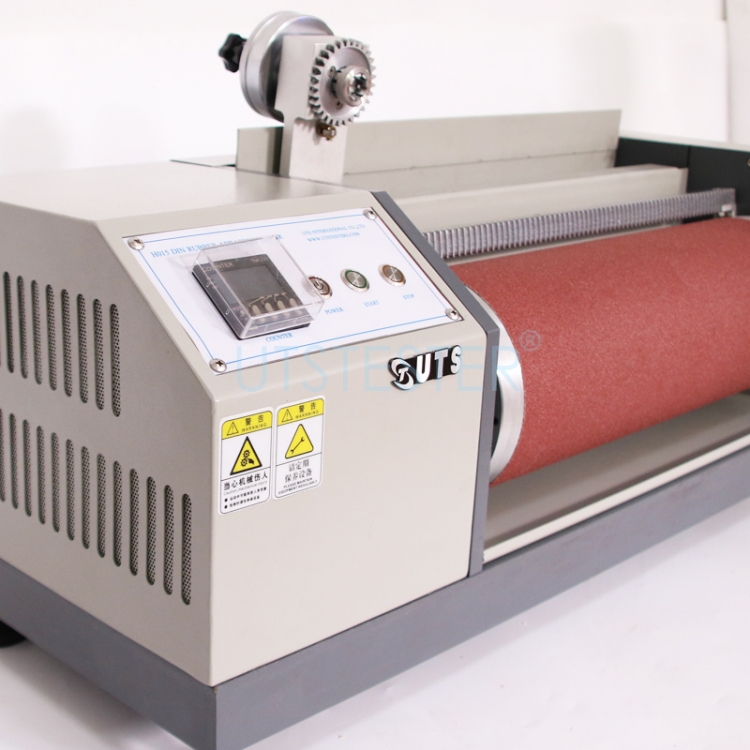

The 150mm diameter cylinder is driven by a precision AC motor with variable speed

control and rotates at a speed of 40 revolutions per minute.

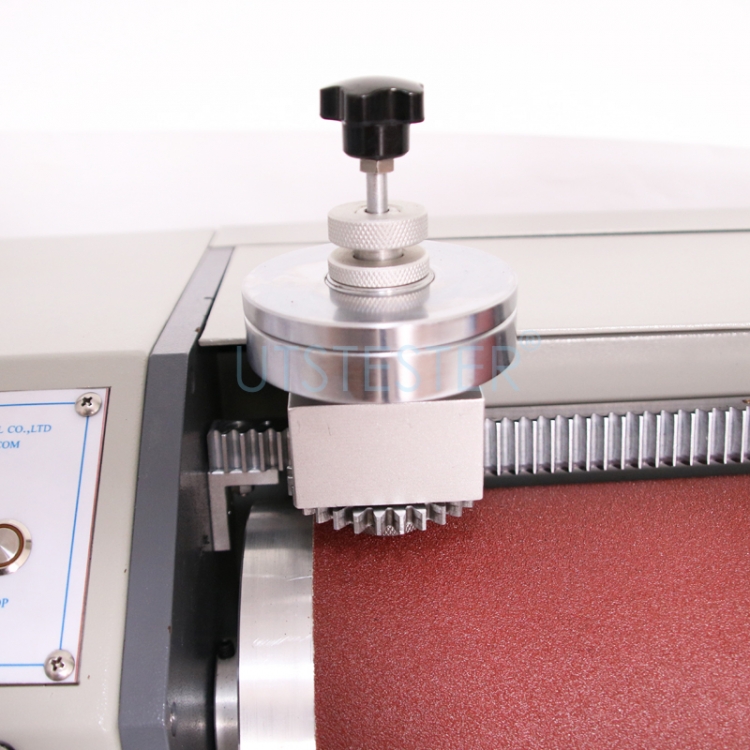

Use double-sided adhesive to attach a specified P60 sandpaper to the cylinder. Insert a

fixed-size cylinder sample into the sample frame and use the integral rangefinder to

adjust and set its outstretched length. The sample holder (fixed or rotating) moves at

a speed of 0.32 m/s on the surface of the sandpaper with a load force of 5 or 10 newtons

and a set distance. The sample can move 10, 20, 30 and 40 meters with an adjustable

rotating CAM. After the test, the samples were taken off and weighed and calculated to

determine the loss.

Then, the wear resistance of the tested compound was determined by comparing the test

results with the data of the comparison compound.

Features

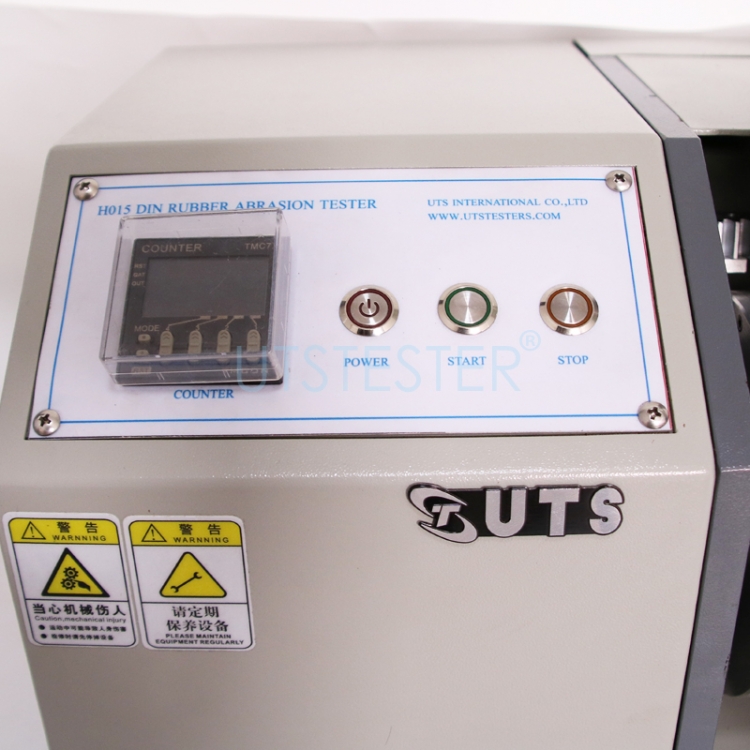

Automatic Counting

Equip with digital counter, automatically stop after test finished.

New Version Available

New version with a self-tracking suction head that can be connected to a standard vacuum

cleaner without the operator having to keep an eye on it.

Necessary Accessory

Necessary accessory provided to conduct tests after receive our instrument.

Simple Operation

Sample installation, testing times preset, then you can start your test in ease.

Standards

DIN 53516, SATRA TM174, BS 903 A9 , ASTM D5963,EN ISO 20344 ,

AS NZS 2210.2 , ISO 4649, ISO20871

GB T 20991 ,GB T 20265, GB20266 2006, GB T 9867, QB T2884

JIS K6369, JIS K6264 2

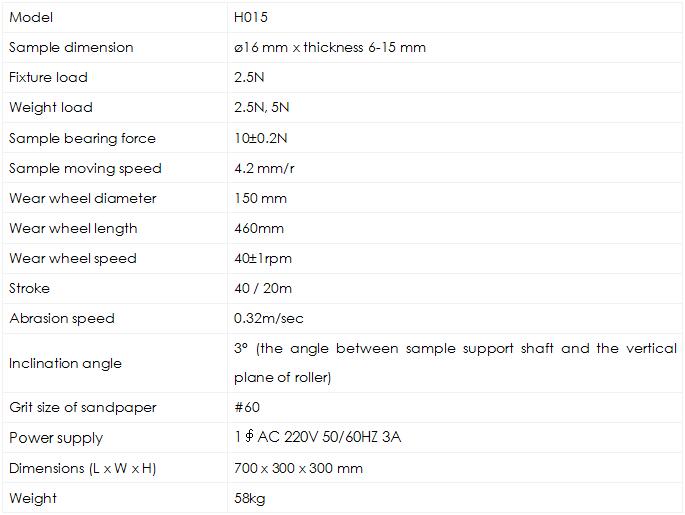

Key Parameters

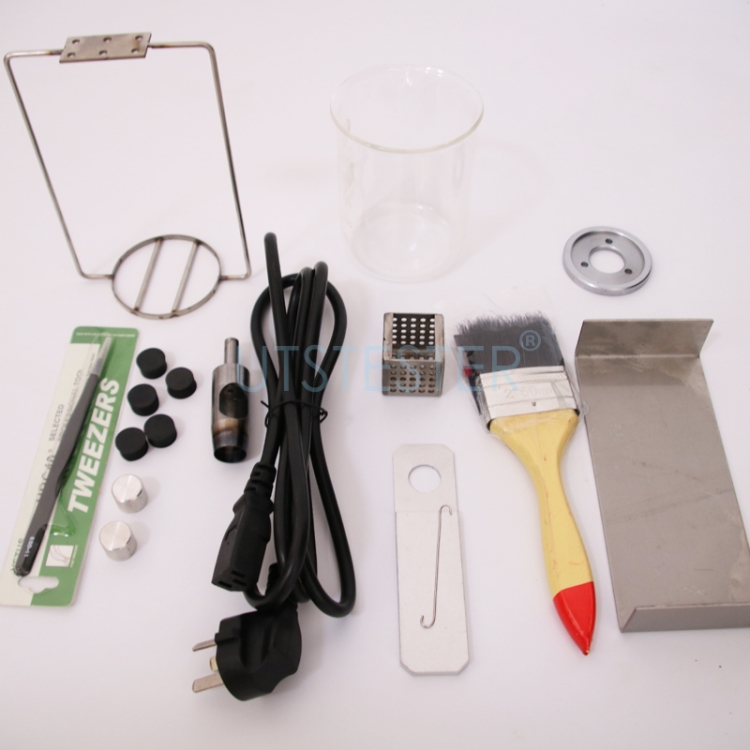

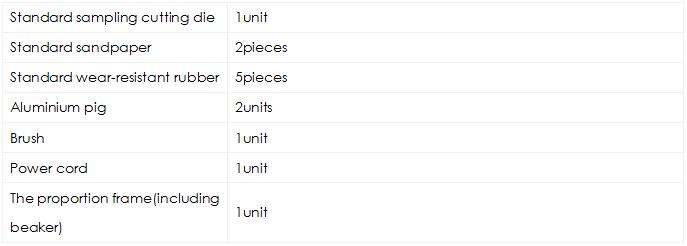

Accessory

Optional Accessory

Application
