Automatic Digital Rockwell Hardness Tester UTS-HRS-150 Automatic Digital Rockwell Hardness Tester UTS-HRS-150 Automatic Digital Rockwell Hardness Tester UTS-HRS-150 Automatic Digital Rockwell Hardness Tester UTS-HRS-150 Automatic Digital Rockwell Hardness Tester UTS-HRS-150

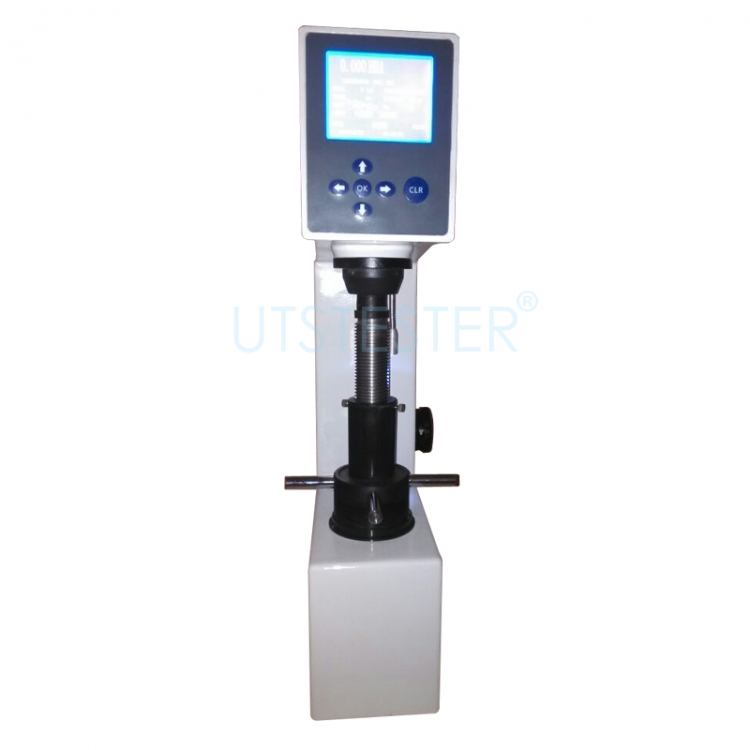

Automatic Digital Rockwell Hardness Tester UTS-HRS-150

  • Model :

    UTS-HRS-150
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS,etc
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
Inquiry

Support Services

Automatic Digital Rockwell Hardness Tester UTS-HRS-150

Application


Model HRS-150 Rockwell hardness tester is a high-tech product with

novel appearance and stable performance. The industry-leading

superficial Rockwell hardness tester has real-time display function of

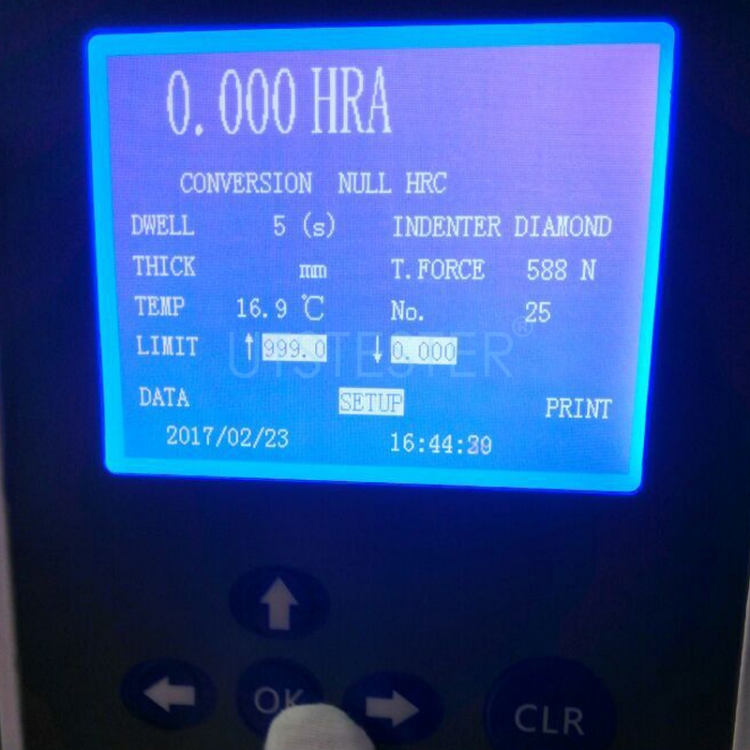

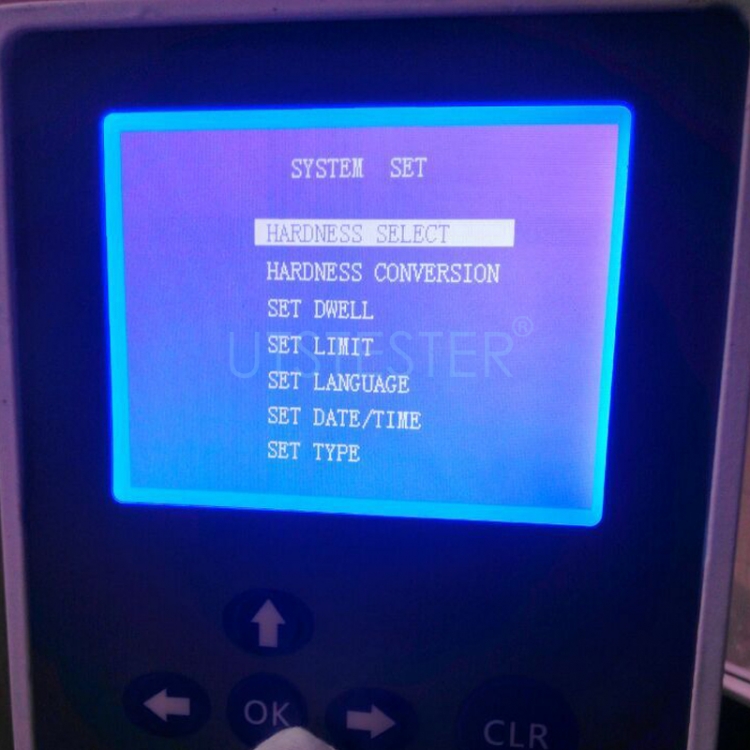

test environment temperature; its touch-screen operation is simple,

intuitive and can take a test on superficial Rockwell hardness scale.

The product is controlled by the MCU equipped with LED cold light

illumination and high-speed thermal printer by which you can rapidly

print out test data. Such product meets requirement of Rockwell GB /

T 230 and International standard ISO 6508 and can be widely applied

to business workshops and laboratories. It is an ideal choice of Rockwell

hardness test.






Technical Parameter

Initial Test Force: 98.07N, allowable error: ±2.0%.

Total Test Force: 588.4N, 980.7N, 1471N, allowable error: ±1.0%.

Indenter Specifications:

      Rockwell diamond cone indenter.

      Φ 1.5875mm ball indenter.

Maximum height of the test specimen: 170mm.

Indenter head center to the fuselage: 165mm.

Hardness Dimensions (L × W × H): 550× 220× 730mm.

Instrument Weight Approx: 85kg.

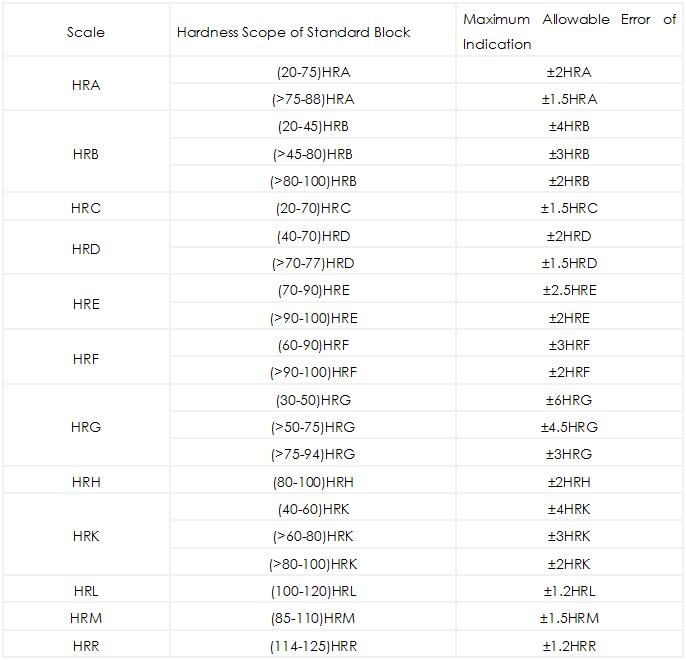

Allowable error of indication

Automatic Digital Rockwell Hardness Tester UTS-HRS-150

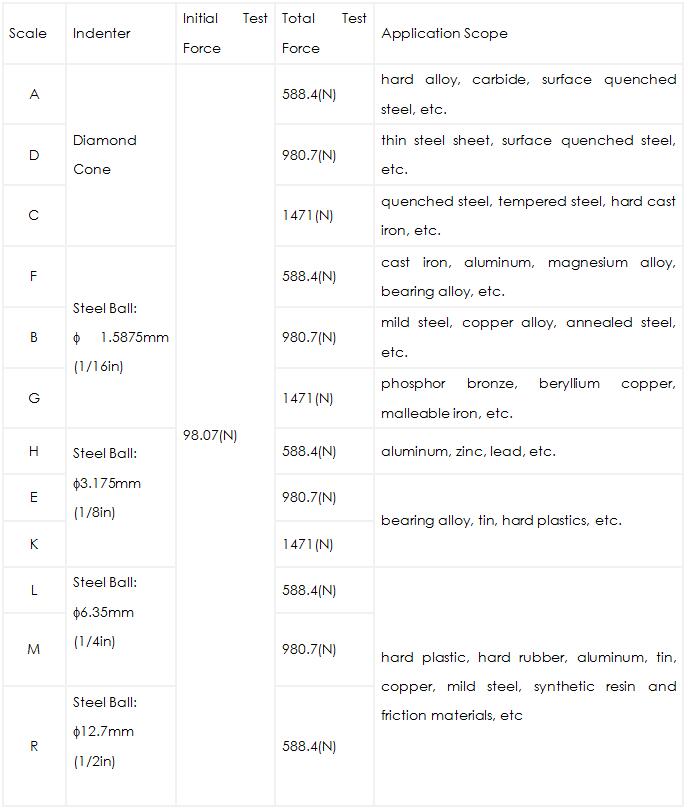

Scale, Indenter, Test Force and Application Scope  Hardness

Automatic Digital Rockwell Hardness Tester UTS-HRS-150


Application

Automatic Digital Rockwell Hardness Tester UTS-HRS-150
