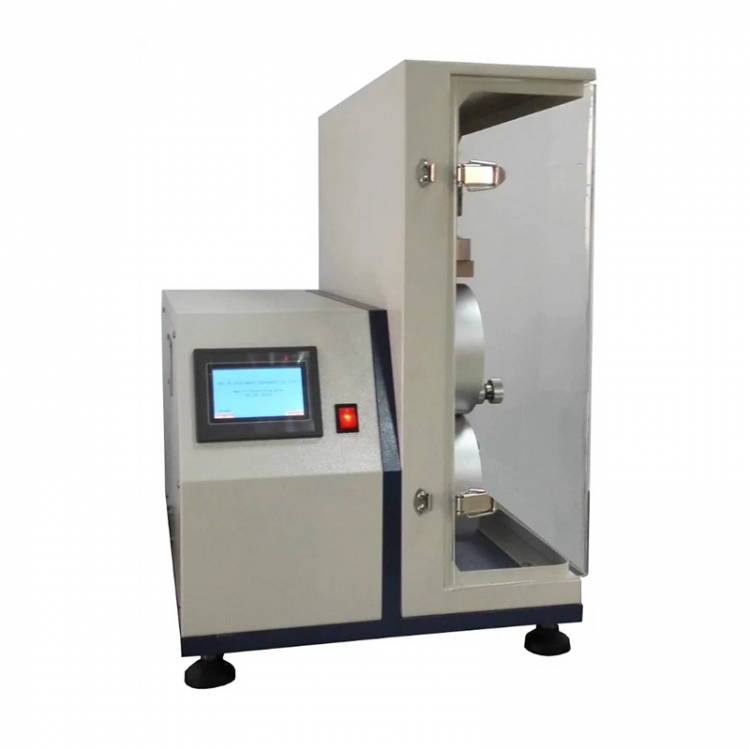

Velcro Fatigue Tester H005

This Velcro fatigue tester is designed to do opening and closing test between both layers of various hook & loop fastener(magic tape). With memory function. Available to adjust balance adjustable block and loads to achieve adjusting pressure demands between samples.

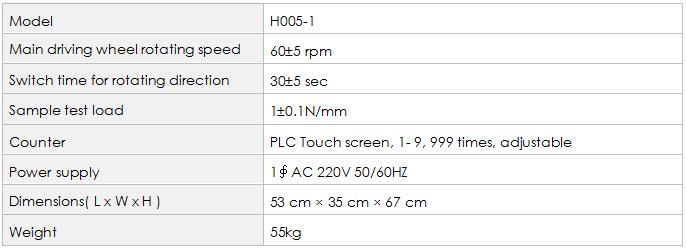

Key Parameters

Test Principle

To make magic tapes to do repeatedly peeling and fitting motion. After the specified test times of opened and closed, idler wheels crush onto samples by itself weight to make the samples stick each other uniformly, so as to measure its adhesive force and part of adhesive strength. Use tensile test machine(should be purchased additionally) to assess its peeling strength (AS) and shear strength (PA) after test.

Standards

DIN-3415  SATRA TM123  ISO 22776  GB/T 3903.20  GB/T 3903.21  GB/T 23315-2009,Astm d5169

1.PLC closed-loop controller controlled.

2.AC servomotor ensures accurate and durable test results.

3.Rigid construction and advanced AC servomotor ensure quiet running without noise.

4.Transparent plastic cover ensures safe and convenient operating.

H005 Velcro Fatigue Tester is applicable to the determination of:

layers of various hook & loop fastener(magic tape).
