The performance of moisture resistance is of great significance to the anti-rust function of anti-rust paper. Therefore, it is a reference standard to evaluate the moisture resistance of antirust paper correctly and reasonably, and the water vapor transmission rate tester can be used to test the moisture resistance of antirust paper.

Test samples

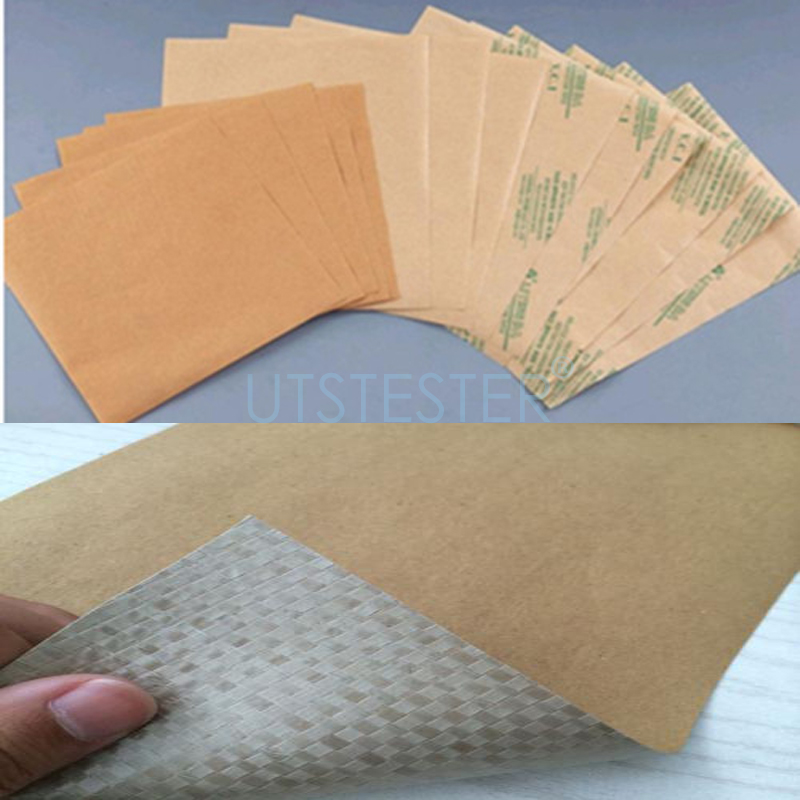

The water vapor transmittance of rustproof paper was tested.

Test on the basis of

The water vapor transmittance of the sample was tested by the principle of cup method according to GB 1037-1988 "test method for water vapor transmittance of plastic film and sheet".

Test principle

The cup method (also known as weighing method) is to calculate the water vapor transmittance of the sample by measuring the change of the mass of the permeable cup with the permeability time. According to the increase or decrease of the quality of the hygroscopic glass, the principle can be divided into the weight increasing method and the weight reducing method. The two test methods are to separate the internal and external environment of the hygroscopic glass through the clamped sample, so that two kinds of different humidity can be formed on both sides of the sample. Moisture vapor transmission cup weight method in a certain amount of desiccant, moisture permeability cup lateral control the humidity environment, moisture vapor transmission cup weight loss method in a certain amount of distilled water, the outside environment of low humidity control, so as to realize water vapor from the humidity side by sample to infiltrate and humidity side, moisture vapor transmission cup quality increase or reduce, cause the moisture vapor transmission cup quality with the change of time calculation according to the sample of water vapor transmittance.

Test method for moisture resistance of rustproof paper

The test process

(1) the cutting sample

Six specimens with a diameter of 74mm were cut from the sample surface with a sampler.

(2) sample loading

A certain amount of distilled water is added to each moisture permeable cup, and then the sealing gasket, sample and sealing ring are put in turn, and clamped with the moisture permeable cup cover.

(3) test

Open the cover of the equipment cavity, place the 6 moisture permeable cups with the samples on the moisture permeable cup holder in turn, and close the cover of the equipment cavity. Set the sample name, test temperature, humidity, test mode and other parameter information on the control software, and click the test option to start the test. The equipment can automatically control the test conditions according to the set parameters, and automatically weigh intermittently. The test results of mass and water vapor transmittance of each glass can be inquired in real time.
