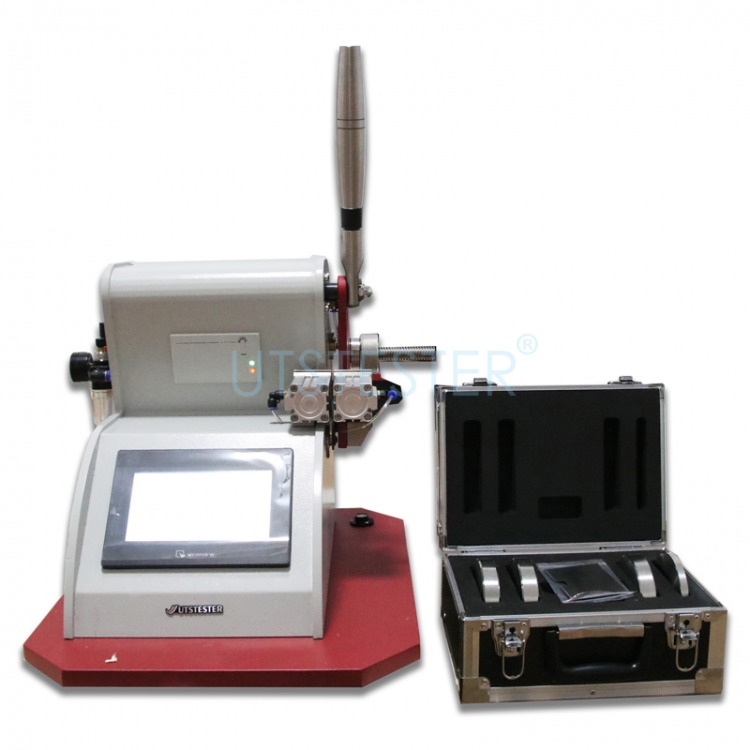

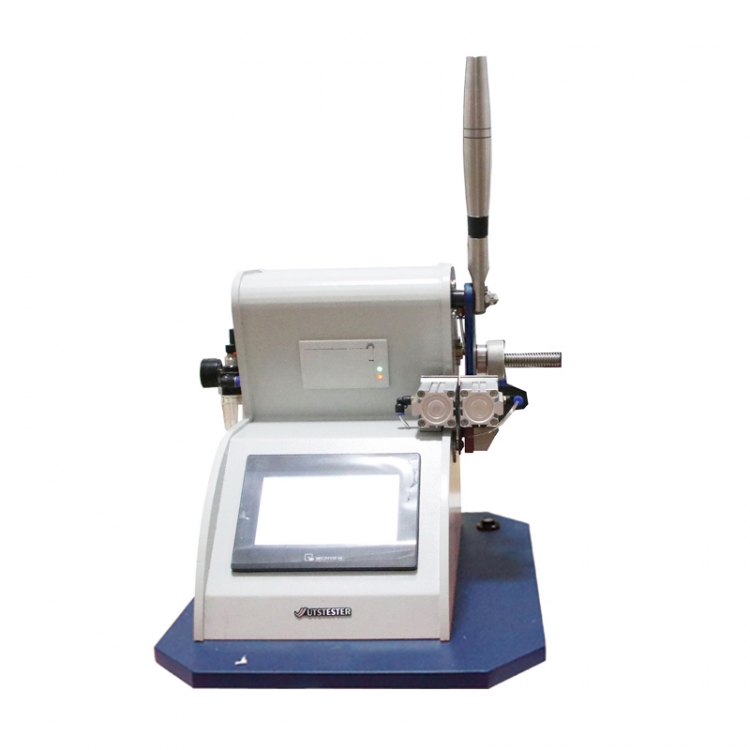

Digital Elemendorf Tear Tester M006B

M006B Digital Elemendorf Tear Tester is to determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes.

Three interchangeable pendulums ranging from 16,000 to 128,000 Millinewtons (mN) can be selected separately for multiple test method compliance.

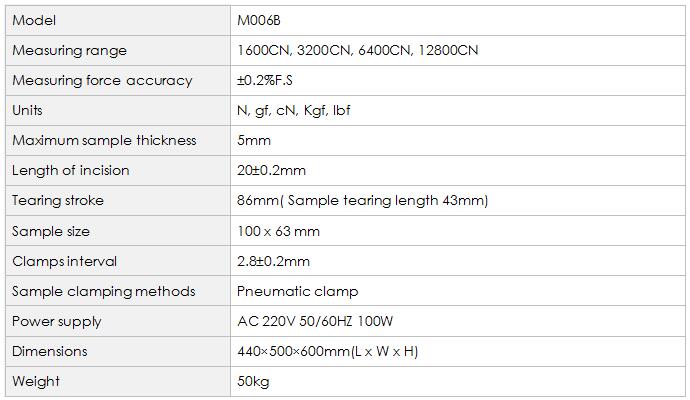

Key Parameters

Standards

Textiles: GB/T 3917.1; ASTM D1424, DIN 53862; EN ISO 13937-1; ISO 4674-2; ISO 9290; M&S P29; NEXT 17; NF G07-149

Paper: GB/T455, ASTM D689, BS 4468, DIN 53128, CSA D9, ISO 1974,EN 21974, PAPTAC D9, JIS P8116, SCAN P11,UNI 6444, APPITA P400, TAPPI T414

Plastic: GB/T 11999, ISO6383-2, ASTM D1922, NF T54 141, JIS K7128-2

Non woven: ASTM D5734, WSP 100.1

Features

1.Equipped with special aluminium profile table-board, shell processed with metal painting, all of heavy bobs are made of stainless steel.

2.Equipped with large screen color touch screen display control.

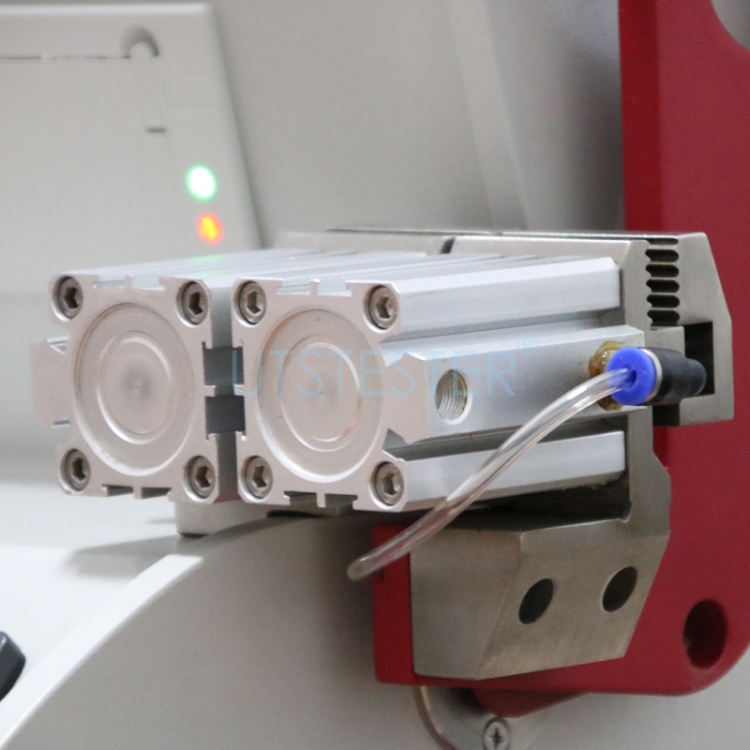

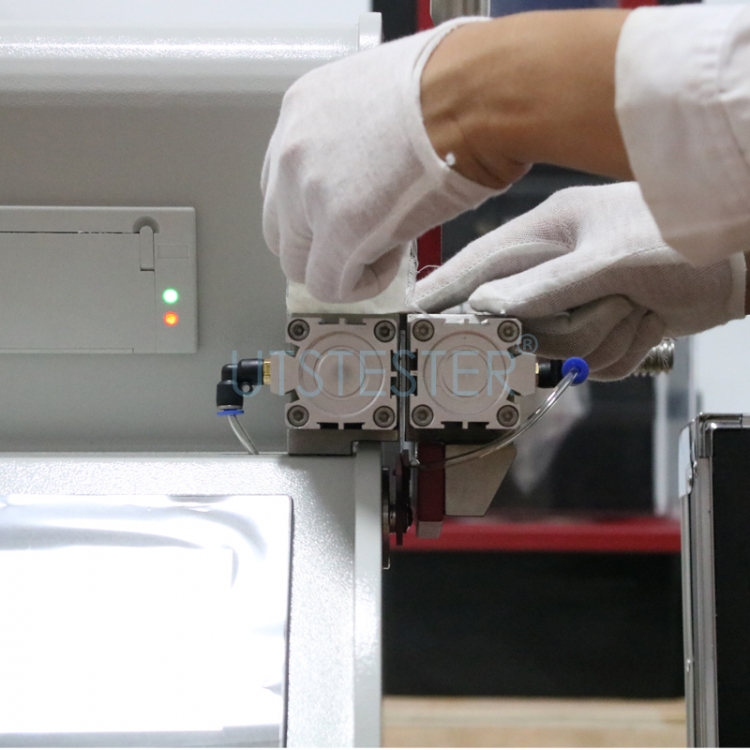

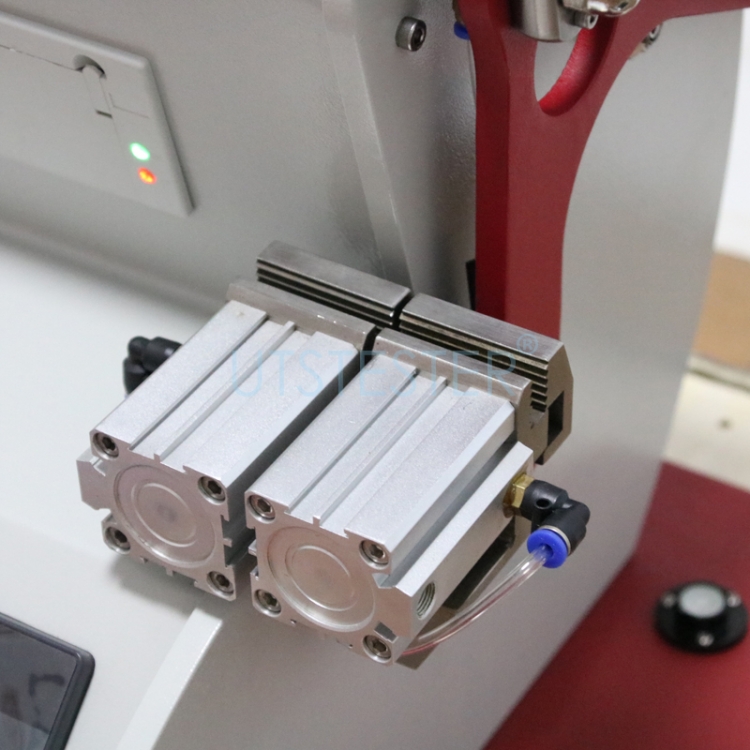

3.Pneumatic clamp with convenient operation advantage.

4.Imported encoder equipped to measure accurately.

5.Friction pendulum damp with auto revision function to improve measuring accuracy.

6.Adopts left and right double button start device to protect operator security.

7.English menu display.

8.Multiple measuring units including gf, cN, N, Kgf optional to meet different standard requirements.

M006B Digital Elemendorf Tear Tester is applicable to the determination of:

thick paper, plastic cloth and electrical insulating tapes.
