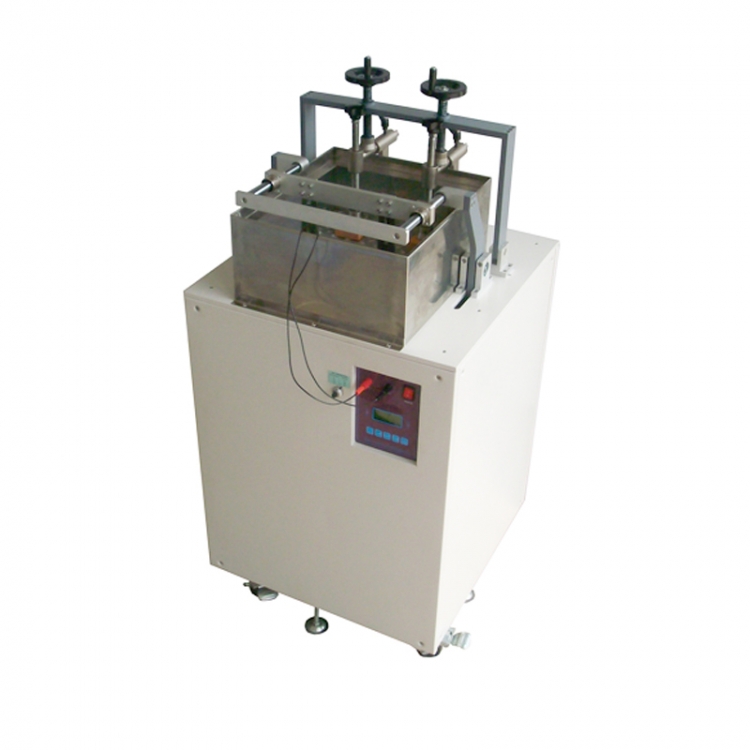

Shoe Bending Waterproofness Tester H008

H008 Shoe Bending Waterproofness Tester is to determine the dynamic water resistance property and durability of flexing for shoe immersed in water.

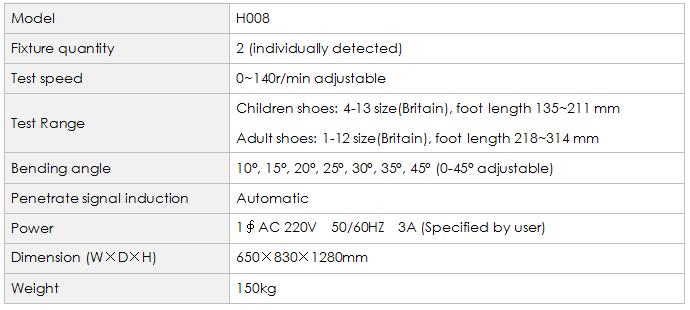

Key Parameters

Test Principle

Mount the finished shoes on test machine, add a certain depth of water into tank to touch shoes. It drive forward forefoot of shoes to bend at a certain angle and frequency, so as to simulate people wear the shoes walking in the water. Test the needed bending times for water penetrate from shoes outside to inside or test water penetrate area under specified test times or bending times.

Standards

SATRA TM77    GB/T 16641   ISO 20344- 2011

1. Testing times can be set on the panel, real impact times can be displayed as well.

2. Two working positions available for counting separately.

3. Machine stop automatically when test times completed. And counter stop counting.

4. Easy operation: Easy understandable operational process.

5. Emergency stop button equipped for safety.

H008 Shoe Bending Waterproofness Tester is applicable to the determination of:

all kinds of finished shoes.
