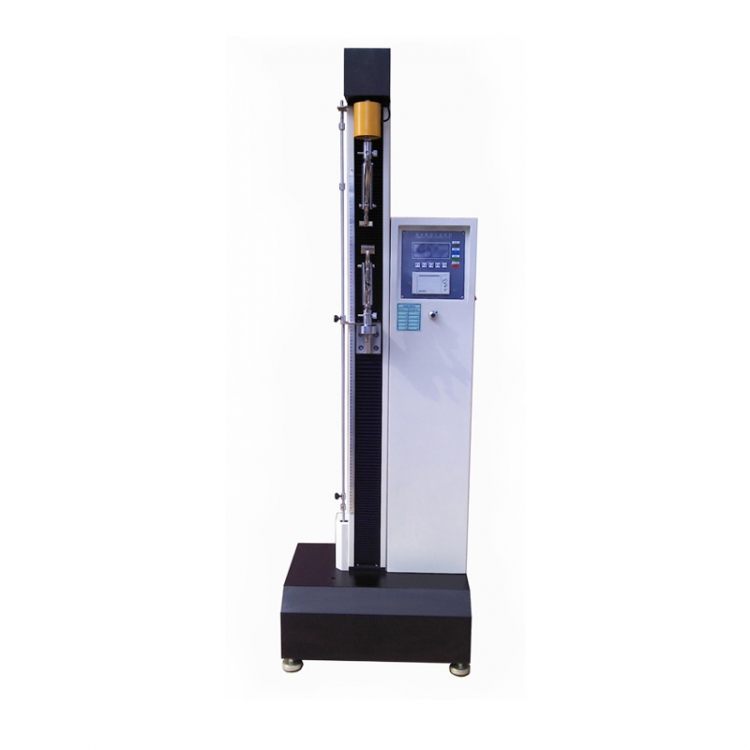

H004 Micro-Computer Tensile Test Machine has wide function with different clamps equipped to test tensile strength, elongation, tear, adhesion, tensile stress, stripping, shear force, bonding force between rubber and metal, etc. Applicable for shoe sole, tire, rubber tube, triangle tape, plastic sheeting, plastic sheet, packaging film, acrylic, FRP,ABS, EVA, PV, etc.

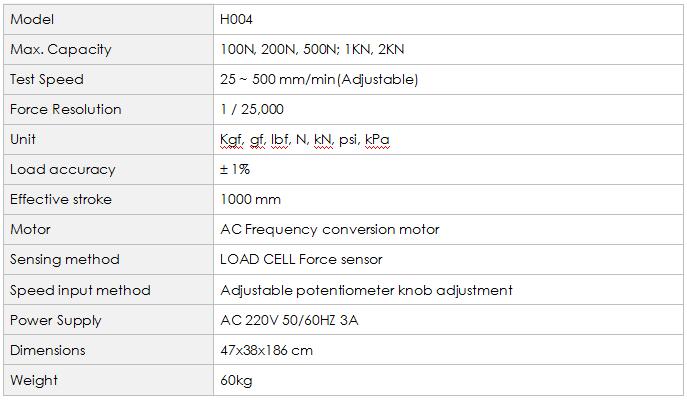

Key Specification
Support Services
UTS provide the complete support for the full life of your H004 Micro-Computer Tensile Test Machine:
1 English Manual
2 Certificate of Quality
3 Remote Online Support
4 Breakdown Support
5 Applications Support
6 12 months warranty
7 CE, ISO 17025 Certificate
8 7 * 24 Service
9 Spare Parts
10 Training
11 Installation
Test Principle
This model is electronic display tensile testing machine, Use the motor to drive screw to move down the lower clamp, so as to stretch test sample. Load cell force sensor connecting with digital displayer to display force value as the testing results.
Standards
SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162
ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO20867, ISO19957, ISO20874,
ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777
ASTMD 751/2209 /412/624 FIA 1206; AS/NZS 2210.2-5.2.4; BS5131- 3.7, 5.11, 5.13, BS 5131-2.6; DIN 53331
H004 Micro-Computer Tensile Test Machine is applicable to the determination of:
shoe sole, tire, rubber tube, triangle tape, plastic sheeting, plastic sheet, packaging film, acrylic, FRP,ABS, EVA, PV, etc.
