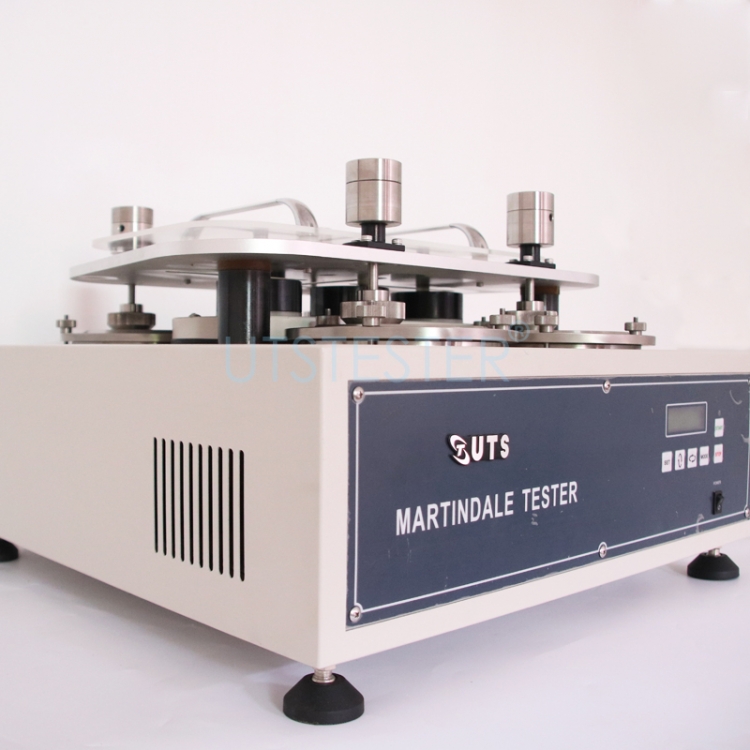

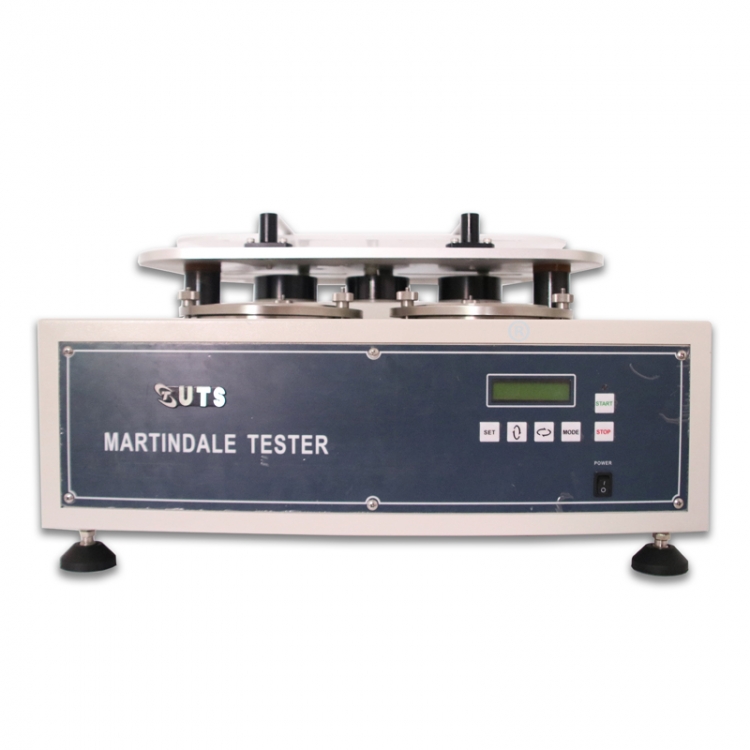

Martindale Wear And Abrasion Tester H056A

Overview

Martindale wear and abrasion tester, available with up to 9 stations and adaptable to test a

wide range of applications - socks, textiles, leather, carpets, coated upholstery, and shirt collars.

This machine is ideal for wear-resistant testing of various types of fabrics and leather footwear,

upholstery, garments, gloves and other such products. Martindale is internationally recognized

as a abrasion resistant test standard for fabrics and can also be used to test the pilling performance

of fabrics.

H056 Martindale tester can also be used for abrasion resistance and durability of rubber

gloves, plastic and rubber coatings, plastic and rubber coated fabrics, using a piece of granulated

sandpaper instead of a standard abrasives.

The machine can be used to test the dirty condition of light-colored materials. In such tests, a

special ink-printed fabric is used instead of a standard friction agent.

A small amount of standard abrasive cloth is supplied with the machine.

Features

Working Position Variety
Mini martindale tester is available in 4, 6, 8, 9 station models. Full kit provided to do abrasion

resistance test and pilling on textiles, coated fabrics, leather, socks, soiling, etc.

Friendly design
Gives access to adjust test speed and safety lid equipped to cover the test rod.

Precision Motion
Motion according to 24mm and 60mm Lissajous track.

Touch Screen Display
Simple to use UTSTESTER Touch control system with individual station counters , providing

easy operation.

Standards
ASTM D4966, BS-3424, DIN-53863, GB/T 20991,
SATRA TM31, ISO 5470-2, GB/T 19089, GB/T 3903.16 ,
EN ISO 12947, EN ISO 20344:6.12, BS EN 388:2003

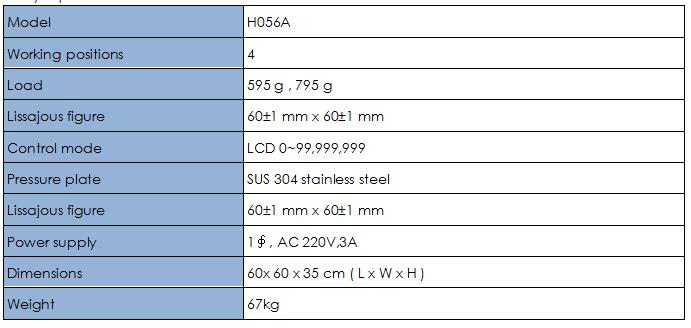

Key Specification

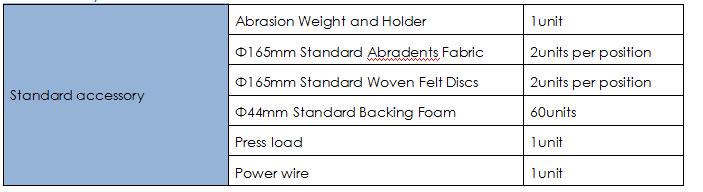

Accessory

Application
