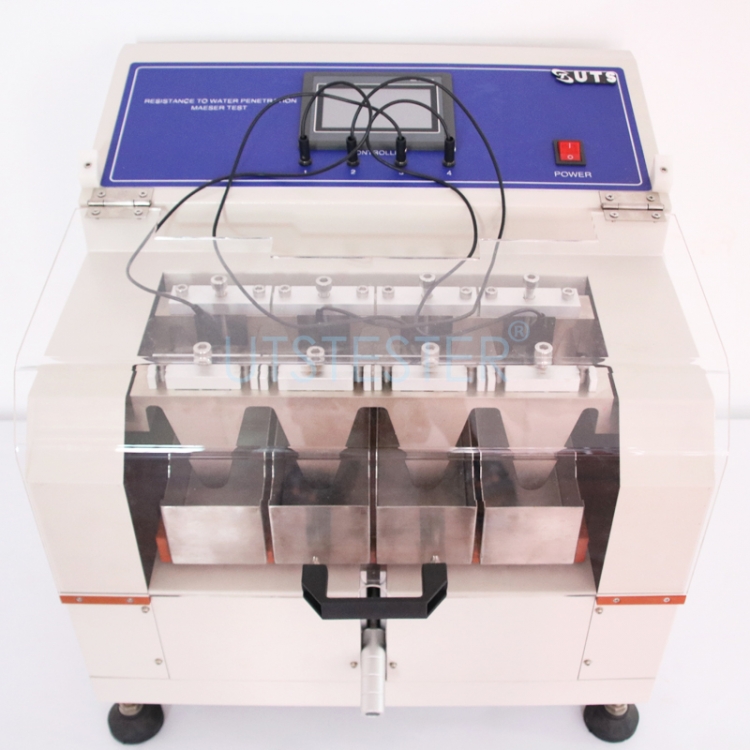

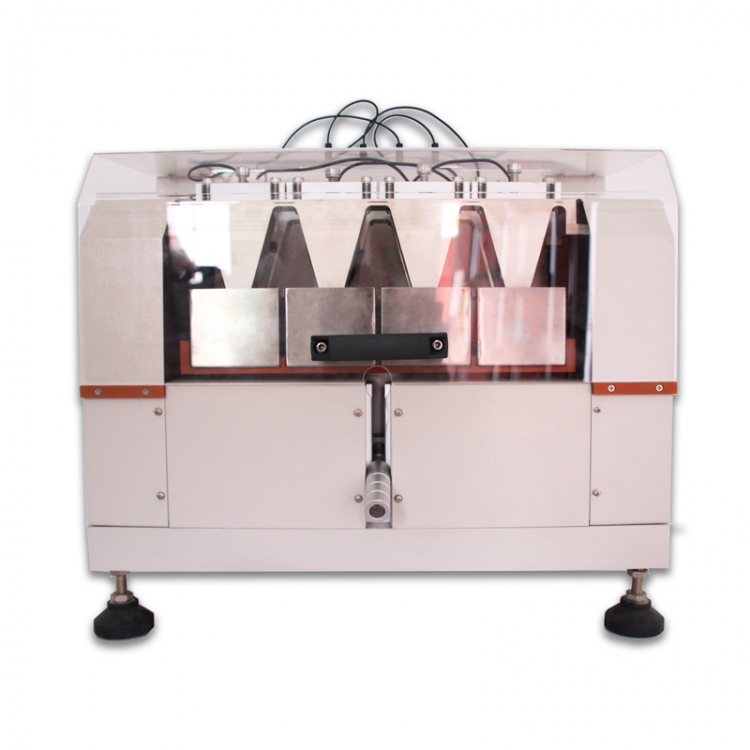

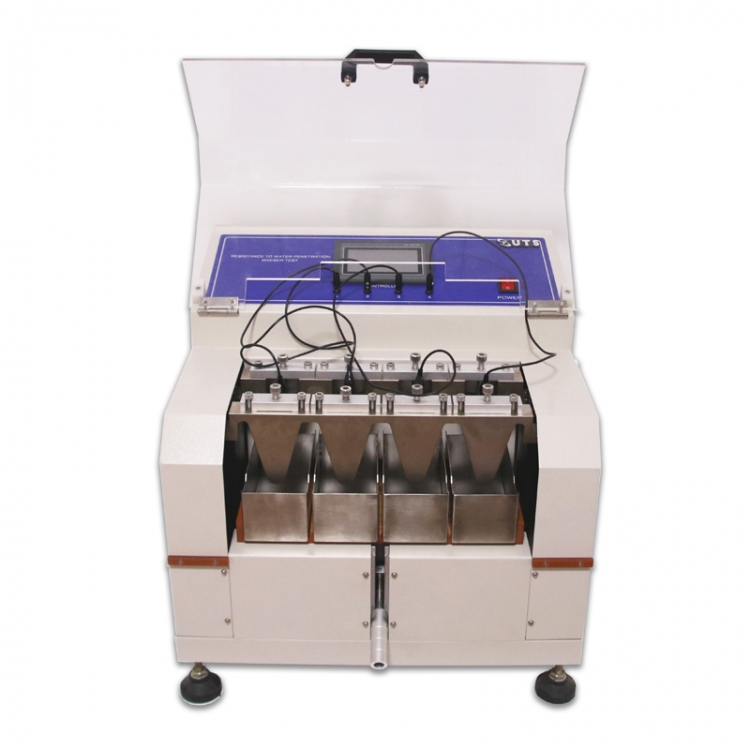

Maeser Water Penetration Test Equipment is used to measure the ability of the shoe surface material to resist water penetration during flexing.

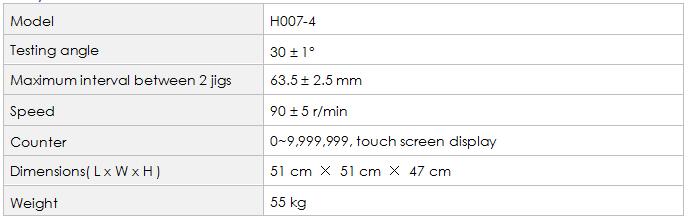

Key Parameters
Support Services
UTS provide the complete support for the full life of your Maeser Water Penetration Testing Equipment:
1 English Manual
2 Certificate of Quality
3 Remote Online Support
4 Breakdown Support
5 Applications Support
6 12 months warranty
7 CE, ISO 17025 Certificate
8 7 * 24 Service
9 Spare Parts
10 Training
11 Installation
Standards
SATRA-PM34, ASTM D2099
Working Principle

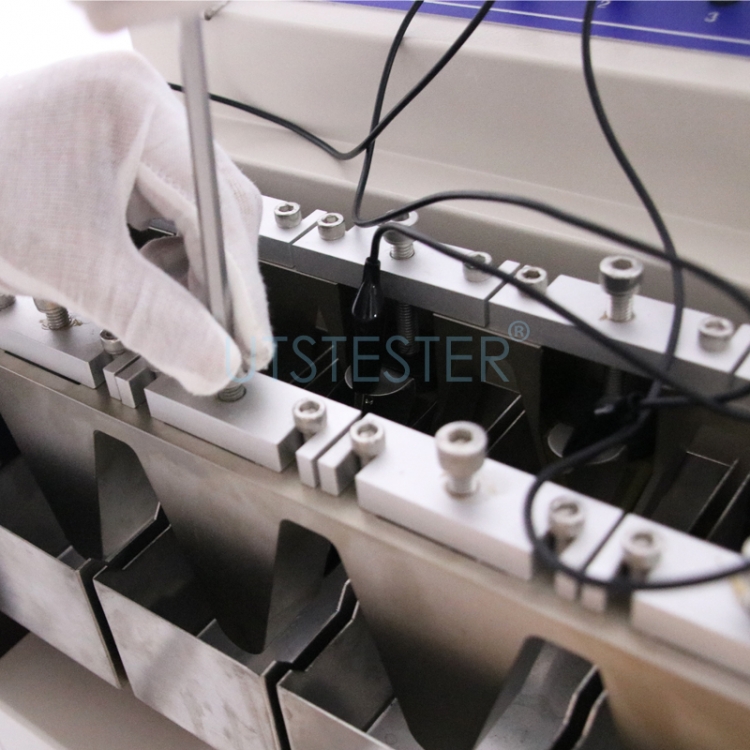

The sample should be folded in half and external appearance outward, opening upward and fixed on the two V shape jigs, and fixtures close both ends of the sample, the sample surface immersed in water at a fixed speed, repeatedly flex specimen, so as to determine its resistance to water penetration property.
1, The sensitivity is adjustable to meet different test results
2, Displacement has a manual adjustment device, convenient clamping of the specimens.
3, Four groups of specimens respectively by four counter timing, when one or more groups of specimens sensing immersion, counter will stop count which does not affect the other groups of timing.
4, With alarm device, when all four groups induct the immersion, machine will automatically alarm immediately.
Maeser Water Penetration Testing Machine is applicable to the determination of:
the shoe surface material.
