IULTCS & Veslic Leather Abrasion Tester H046 IULTCS & Veslic Leather Abrasion Tester H046 IULTCS & Veslic Leather Abrasion Tester H046 IULTCS & Veslic Leather Abrasion Tester H046 IULTCS & Veslic Leather Abrasion Tester H046

IULTCS & Veslic Leather Abrasion Tester H046

  • Model :

    H046
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025
  • Payment :

    TT, LC
  • Original Region :

    MADE IN CHINA
  • Port Of Dispatch :

    CHINA PORT
  • Standards :

    SATRA TM 173, TM177, BS 1006, DIN 53339, EN ISO 20344:7.3, ISO 11640, QB/T 2537
Inquiry




Overview

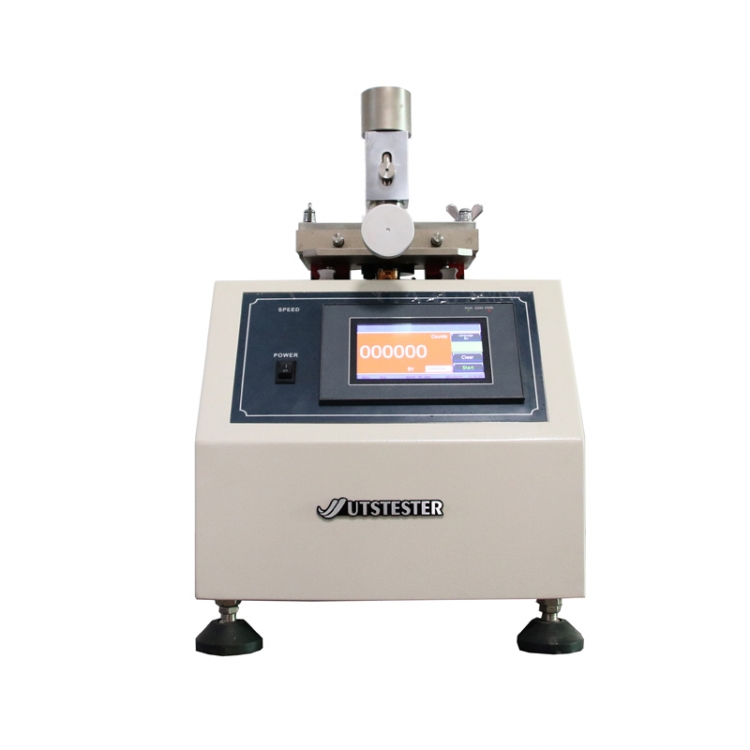

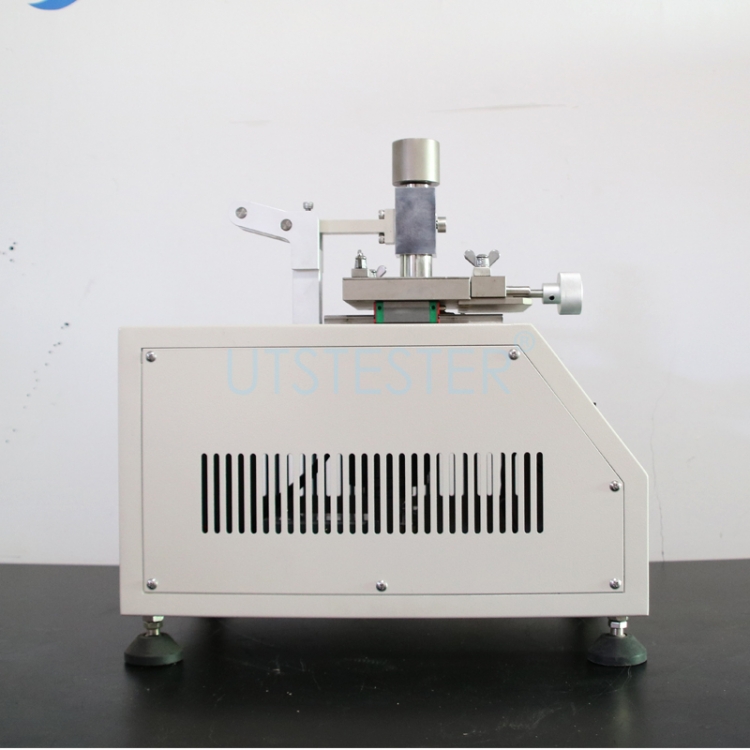

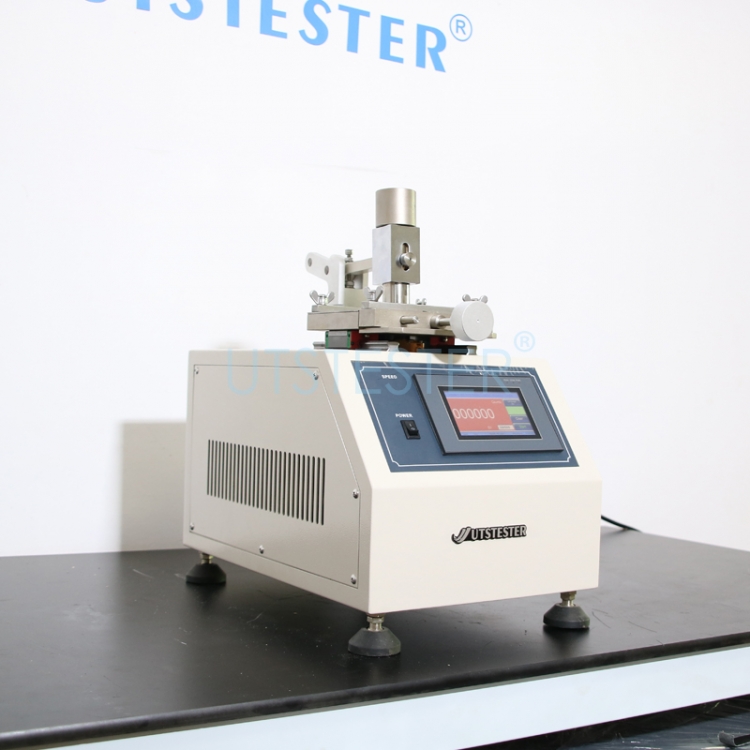

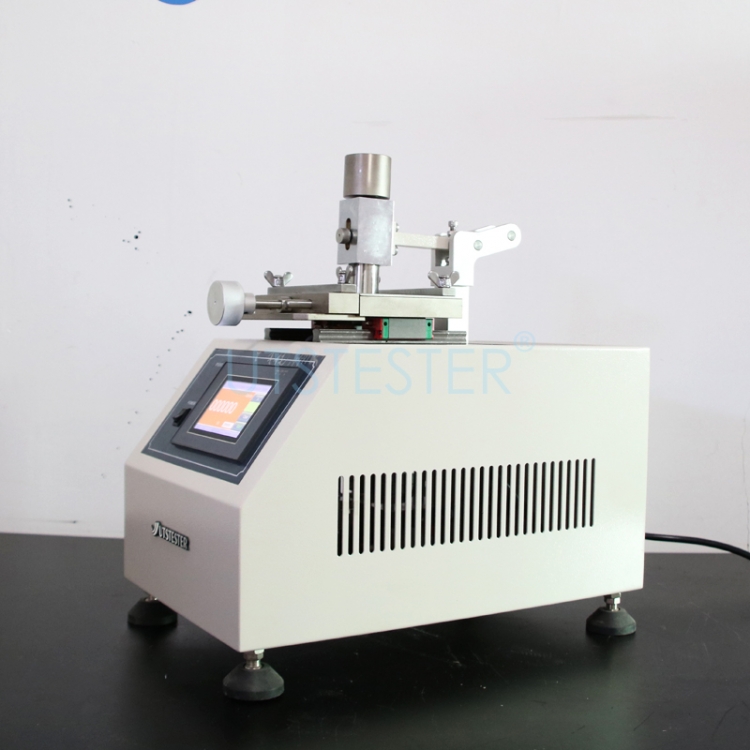

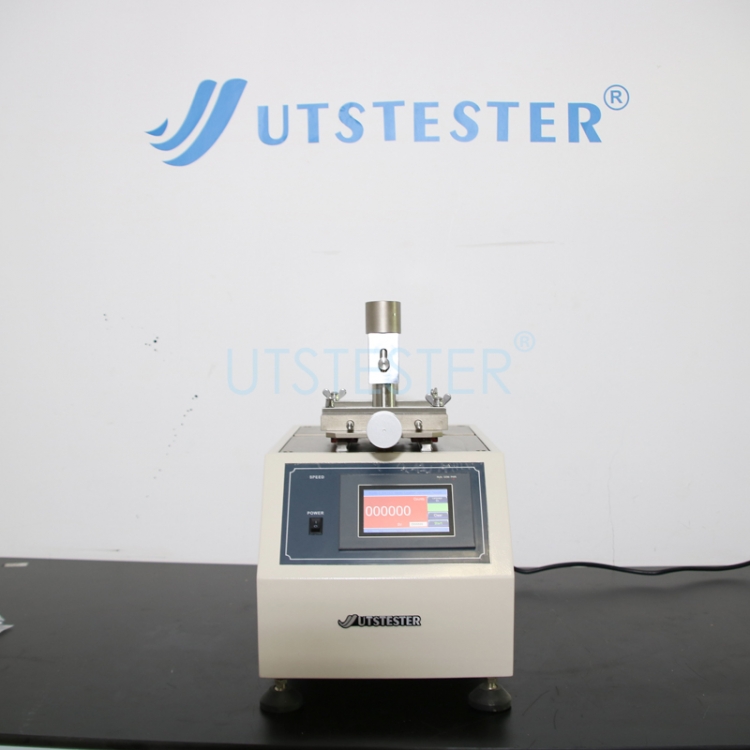

IULTCS & Veslic Leather Abrasion Tester is designed to do rub fastness test on the surface of leather, plastic and textile materials. So as to determine the amount of marring of leather surface or finish and the amount of color transfer to the wool felt. Dry and wet abrasion tests are available.


Test Method

Under specified pressure, the sample is placed on the test surface and clamped to do reciprocating abrasion; Then insert the wool felt in the end of the rubbing head and switch on the tester. After test for specified times, inspect visually the color changing and fading of sample wool felt and discoloration of wool felt. In the case of colour transferring, the wool-felt rubbing pad is evaluated using the grey scale.


Standards

SATRA TM 173, TM177, BS 1006, DIN 53339, EN ISO 20344:7.3, ISO 11640, QB/T 2537


Key Specifications

Model

H046-1

H046-2

Position

1

2

Sample dimension

120 x 20mm

Rubbing stroke

35±2mm

Test speed

40±2cpm

Extension of sample clamping tension

0 ~ 20%

Counter

LCD,0~99,999,999

Power supply

1∮AC 220V 50/60HZ (Specified by user)

Dimensions (L x W x H)

490 x 320 x 500mm

490 x 450 x 500mm

Weight

36kg

43kg


Accessory

Standard Accessory

500g weight

1unit

Power line

1unit

Optional Accessory

Standard wool pads

1000pcs / pack

Gray scale for color change

1unit

Gray scale for staining

1unit

M019 Pneumatic sample press

(Cut die size: 120x20mm)

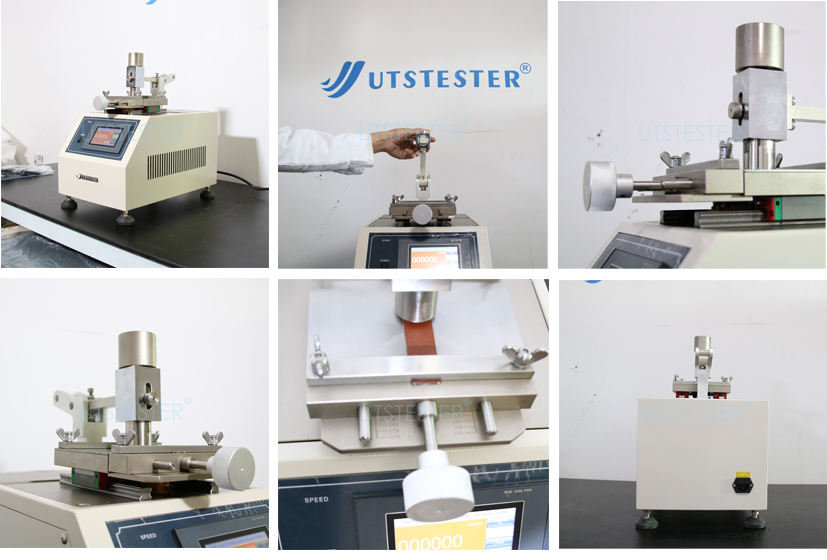

Demonstration



Materials To Be Tested
