Heat seal tester P002

Heat seal tester P002

  • Model :

  • Brand :

  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

  • Port Of Dispatch :

    China Port
  • Standards :

    QB/T 2358、ASTM F2029、YBB 00122003

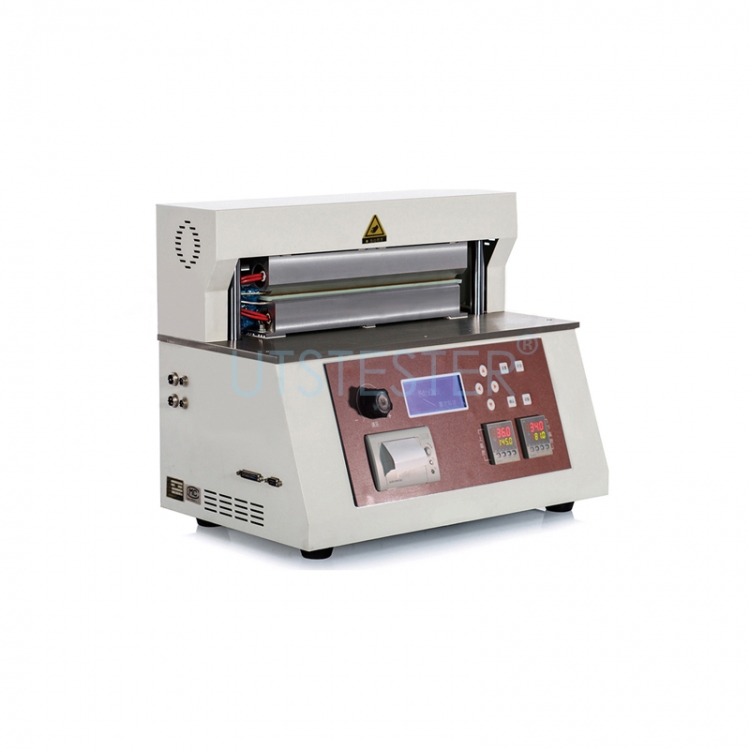

Heat seal tester is professionally applicable to the determination of heat seal temperature, dwell time, and the pressure of various composite films to guide industrial production. Heat seal tester instrument adopts the specially designed heat sealing jaws, which completely conform to multiple national and international.

Test Principle

Heat Seal Tester is composed of upper and lower heat sealing jaws. Before the test, preset the heat seal temperature, pressure and dwell time value, place the specimen in between the upper and lower jaws, and then press start button. The whole sealing process can be finished automatically.


1.Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without fluctuations

2.Wide range control of temperature, pressure and time that meet various test conditions

3.Manual or pedal switch, as well as anti-scald design provides convenient and safe operating environment

4.The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface

5.Professional software supports remote operation for convenient data saving, exporting and printing


QB/T 2358、ASTM F2029、YBB 00122003

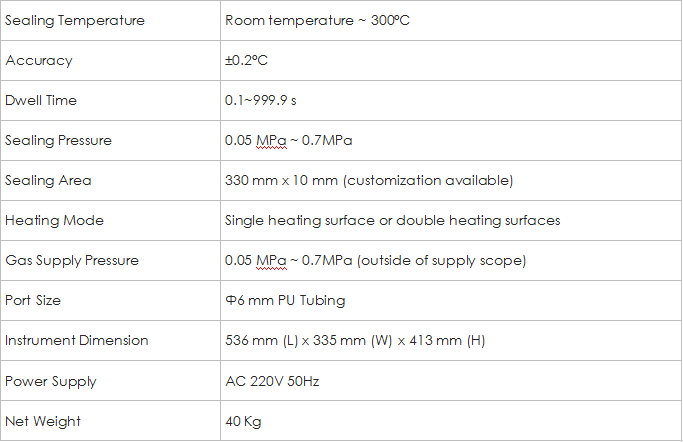

Key Parameters


It is applications to various composite films.
