Description of Washing Colorfastness Tester

2019-07-22

Washing Colorfastness Tester is designed by drawing on the advantages of similar instruments at home and abroad. The display uses a color touch screen. The interface is simple to understand, easy to operate and sensitive to click.The fuselage uses 304 stainless steel, the appearance is simple and generous.The rotating structure adopts low noise reducer and synchronous belt, running smoothly and with low noise. PID algorithm is adopted for temperature control. The heating speed is fast and the control fluctuation is small.


Standards

ISO105-C01, C02, C03, C04, C05, C06, C08, C09, C10, D01, E03, E12

AATCC 3, 61, 62, 86, 132, 151, 162, 190; GB/T 5711, GB/T3921-1 ~ 5, GB/T 12490 ;


Main Features

1 all inner and outer boxes are made of 304 stainless steel, beautiful and durable.

2 industrial color touch screen display control, durable, easy to operate.

3 transmission structure adopts all-aluminum reducer and synchronous belt wheel, noiseless, accurate and stable speed, bearing is installed outside the box, not vulnerable to damage due to long-term immersion in water due to scaling, durable.

4 five sets of national standard procedures are built in, and three sets of freely editable experimental procedures are reserved to meet more test and research needs.

5 real-time curve display of experimental status data to better observe temperature changes.

6 PID algorithm is adopted for temperature control with small fluctuation to effectively prevent overshoot of temperature;With temperature calibration function, it can avoid sensor deviation caused by long-term use.

7 door state switch detection device, the motor stops rotating when opening the door to prevent hot water scalding.

8 national standard and American standard test cups can be installed separately or simultaneously.

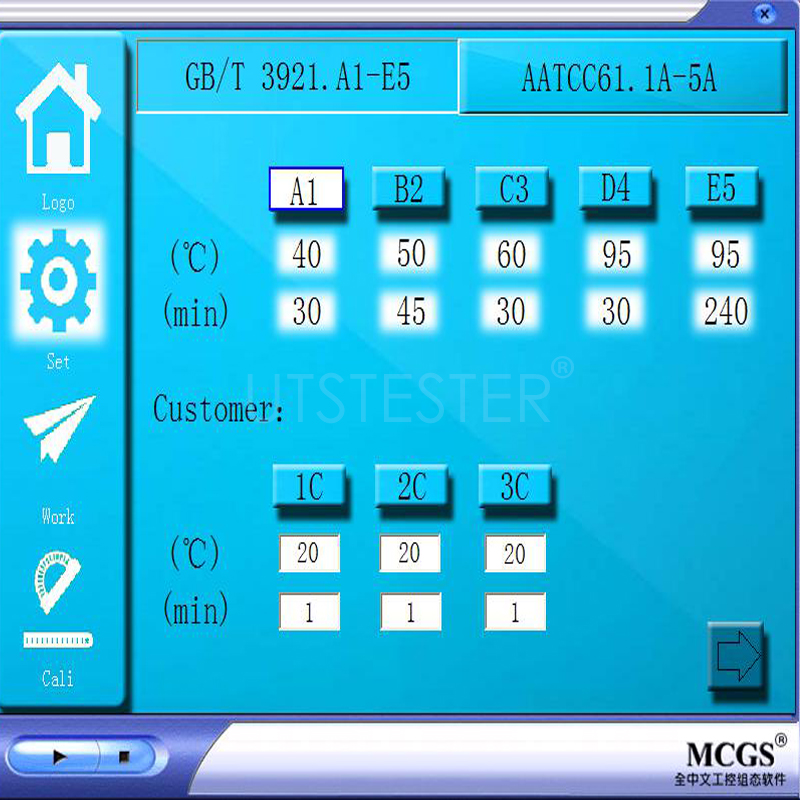

interface setting

1) A1 to E5 are GB/T 3921. a1-e5, 1A to 5A are AATCC61.1 a-5a corresponding parameters of fixed setting items, click the button [GB/T 3921. a1-e5], [AATCC61.1 a-5a] to switch the corresponding parameters of the standard, 1C to 3C for customers to set items freely.

2) click "1A" to "3C" to select this parameter, and it will be displayed inversely.

3) click the box from 1C to 3C, the numeric keyboard will pop up, click the numeric key to modify parameters, click "OK" to exit the digital setting state, and the numeric keyboard will be hidden

4) click " " to save options and set parameters, and enter the working interface.If you click "welcome", "work" and "Calibration", you will enter the corresponding interface and do not save the Settings.
