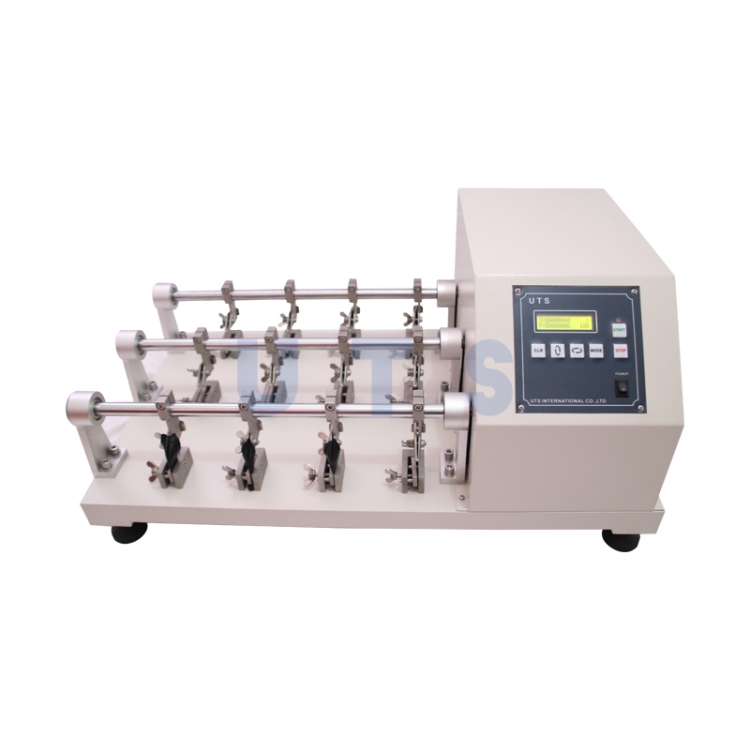

Bally Leather Flexing Tester H053A

H053A Leather Resistance Flexing Tester is to determine resistance to flex property for leather, fabric, etc. Assess the flexing resistance of leather by damage condition of samples after flexing for a certain of times.

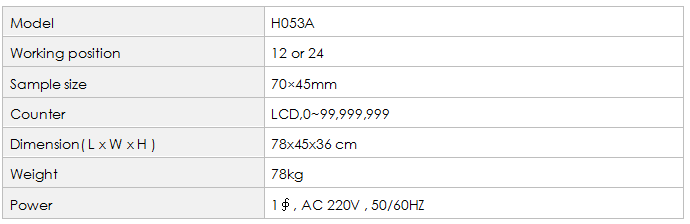

Key Parameters

Support Services

UTS provide the complete support for the full life of your H053A Bally Leather Flexing Tester :

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Related Products

http://www.utstesters.com/ici-mace-snag-tester-m024a_p81.html

http://www.utstesters.com/low-temperature-ross-flexing-tester-h017b_p49.html

http://www.utstesters.com/en-sole-flexing-tester-h018_p50.html

Test Principle

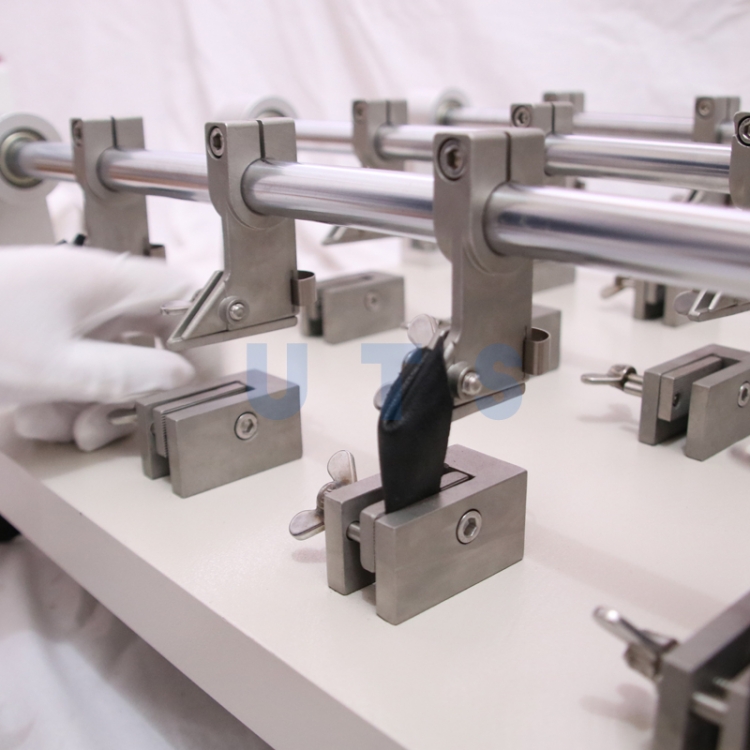

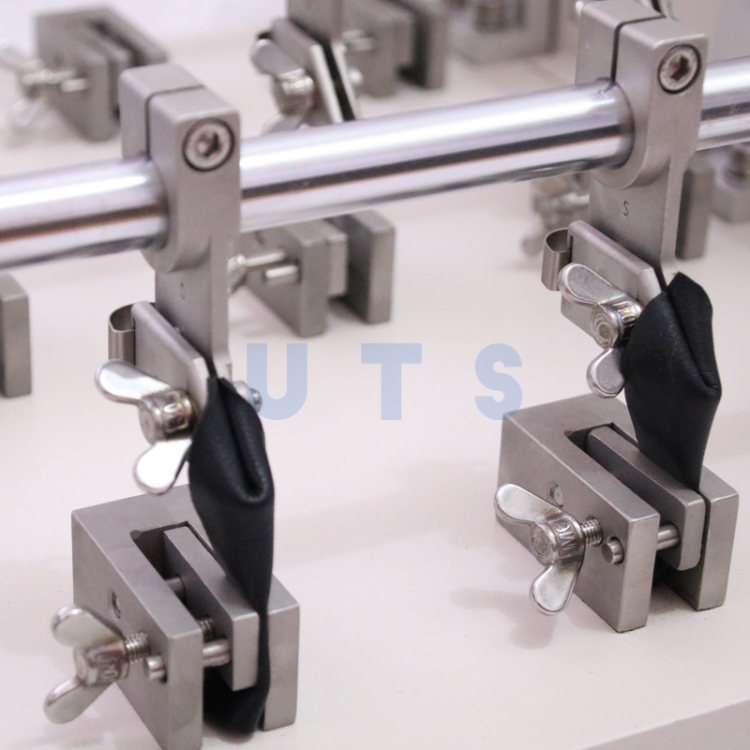

Fix one end of sample on the upper fixture, the other end onto bottom fixture to make sample at 90. Then flex sample at a specified speed and angle. After flexing for a certain of times to assess damage degree of sample.

Standards

BS EN 344, JIS-K6545

1. Upper fixtures are driven by motor to do reciprocating motion with horizontal shaft. Downward moving angle is 22.5  0.5.

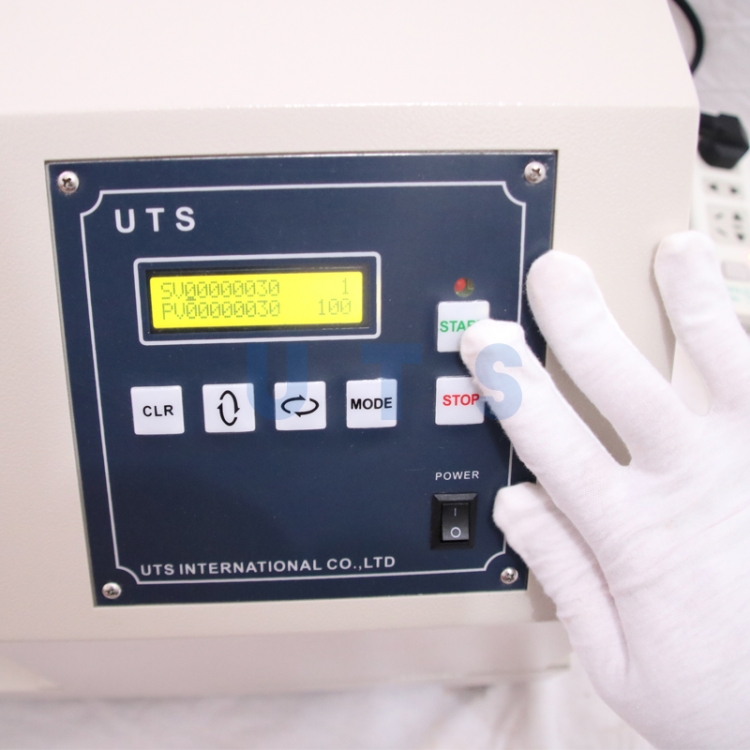

2.Flexing times can be set and real flexing times is display at real time.

3.Counter stop to count when reached preset test times and machine stop to work automatically.

4.12 or 24 working positions can be optional.

5.With manual location function.

H053A Bally Leather Flexing Tester  is applicable to the determination of:

leather, fabric, etc.
