Model :
t070Brand :
UTSTESTERCertificate :
CE, ISO 17025, ISO 9001Lead Time :
3-25 DaysPayment :
TT, L/COriginal Region :
ChinaPort Of Dispatch :
China PortStandards :

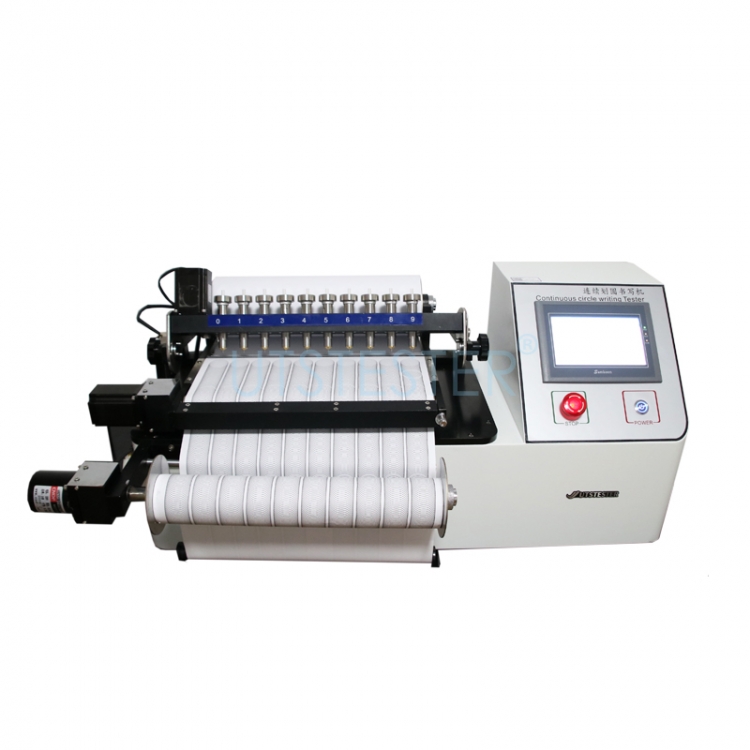

ISO 12757-1 ISO 12756 ISO 27668-1 ISO 14145-1Write-Out performance tester is suitable for the abrasion resistance of writing pen. The system adopts touch screen control and automatically loads the pressure of the pen end. After writing on the white paper for a certain number of times, the abrasion resistance of writing pen is checked to provide data reference for the manufacturer to control the quality.
Test Principle
Load the core on the 100g weight, so that the pen and writing paper face into a 65±5 tilt angle, with a certain speed of the circle, check whether the trace meets the requirements of product standards.
Features
1.Automatic paper collection, no person on duty.
2.The frame is encapsulated by aluminum profiles and equipped with moving and fixed casters.
3.The parts are made of aluminum alloy with anodic oxidation on the surface.
Standards
ISO 12757-1 ISO 12756 ISO 27668-1 ISO 14145-1

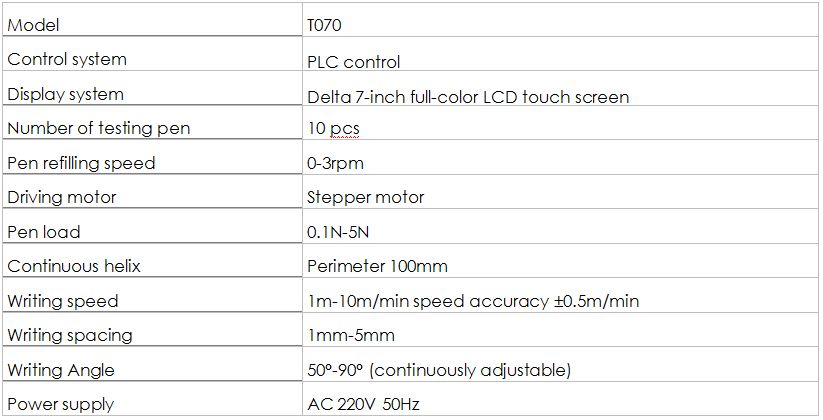

Key Specifications
