Toys Flammability Tester T010

Toys Flammability Tester T010

  • Model :

    T010
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS,etc
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    EN 71-2,ISO 8124-2,GB 6675.3,ISO 6941
Inquiry

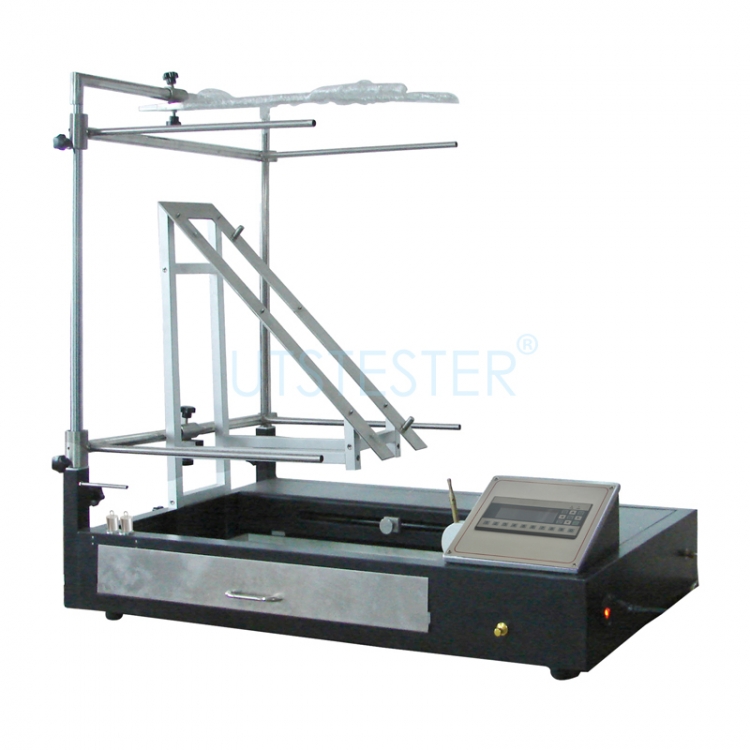

T010 toys flammability tester is to test the flammability property for children toys or toys materials.

Including below:

1. Toys to be worn on the head: beards, moustaches, wigs etc. made from hair, pile or material with similar features; moulded and fabric masks; hoods, head-dresses etc.; flowing elements of 2. Toys to be worn on the head, but excluding paper novelty hats of the type usually supplied in party crackers;

3. Toy disguise costumes and toys intended to be worn by a child in play;

4. Toys intended to be entered by a child;

5. Soft-filled toys (animals and dolls etc.) with a piled surface or textile surface.


Test Principle

Install finished sample or material onto the corresponding fixture, use the specified flame to burn sample for a certain of time and record related data, such as burning time, burning speed, so as to assess its flammability property.


Standards

EN 71-2,ISO 8124-2,GB 6675.3,ISO 6941


Test Materials Range

Toys to be worn on the head

1.Beards, moustaches, wigs etc., made from hair, pile or material with similar features (e.g. free-hanging ribbons, paper or cloth strands etc.), which protrude more than or equal to 50 mm from the surface of the toy

2.Beards, moustaches, wigs etc. made from hair, pile or material with similar features (e.g. free-hanging ribbons, paper or cloth strands etc.), which protrude less than 50 mm from the surface of the toy

3.Full or partial moulded head masks

4.Flowing elements of toys to be worn on the head , hoods, head-dresses etc. and fabric masks which partially or fully cover the head

Toy disguise costumes and toys intended to be worn by a child in play.

1.  These include for example cowboy suits, nurses outfits etc. and long flowing capes etc.

Toys intended to be entered by a child

1.  Include for example toy tents, puppet theatres, wigwams and play tunnels.

Soft-filled toys (animals and dolls, etc.) with a piled or textile surface

1.  Soft-filled toys with a maximum dimension of 520 mm or less

2.  Soft-filled toys with a maximum dimension greater than 520 mm.


Features

1.PLC control with accurate counting and English control panel.

2.Different sample fixtures equipped to meet various test needs.

3.Flame angle and position can be adjusted manually.

4.Should combine with Butagas to do test.

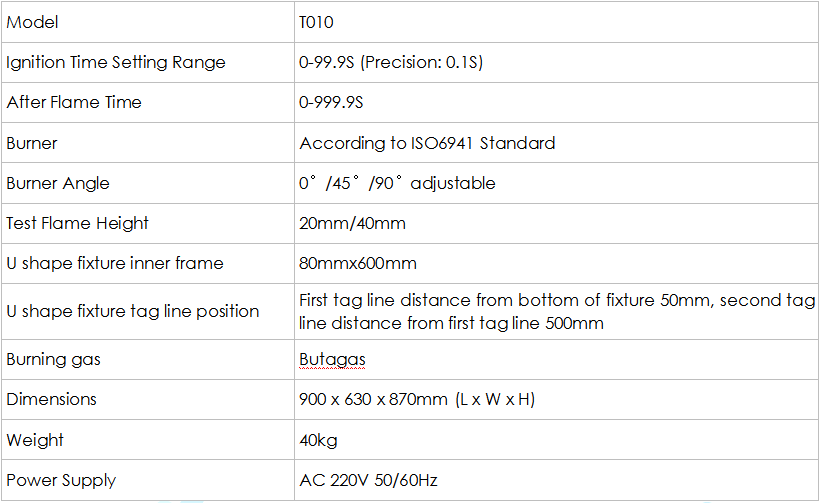

Key Specification


Applications

1. Toys to be worn on the head: beards, moustaches, wigs etc. made from hair, pile or material with similar features; moulded and fabric masks; hoods, head-dresses etc.; flowing elements of 2. Toys to be worn on the head, but excluding paper novelty hats of the type usually supplied in party crackers;

3. Toy disguise costumes and toys intended to be worn by a child in play;

4. Toys intended to be entered by a child;

5. Soft-filled toys (animals and dolls etc.) with a piled surface or textile surface.
