Simulation Head Tester TS03

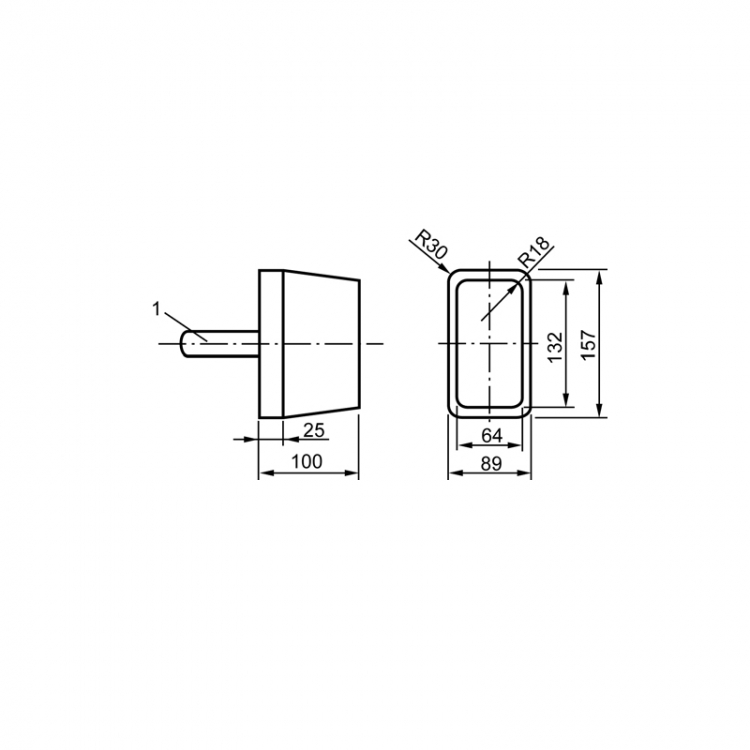

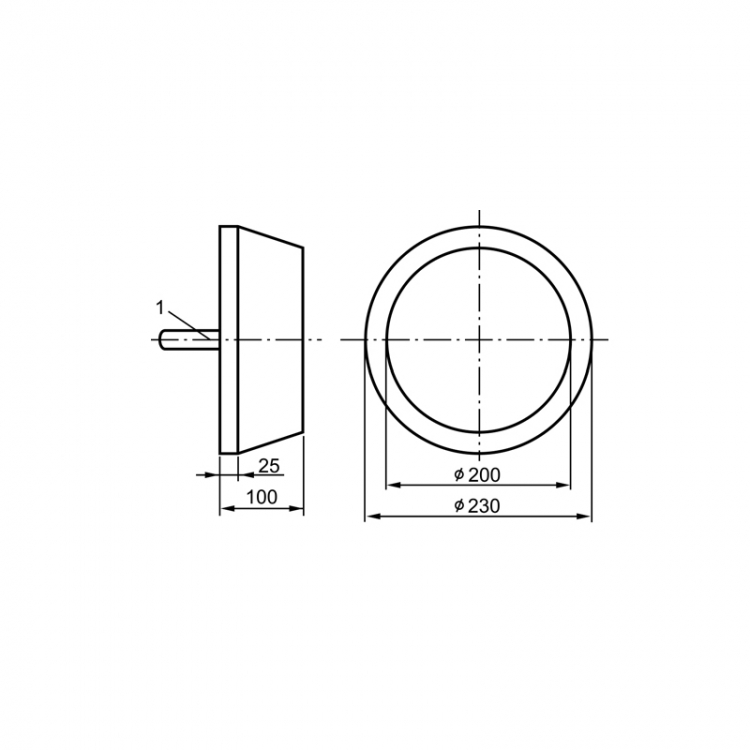

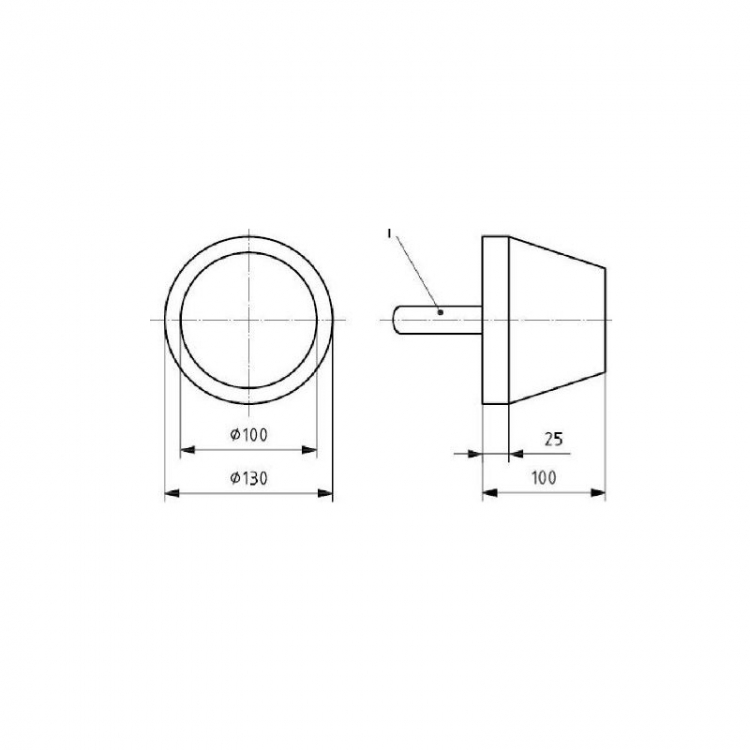

TS03 Simulation Head Tester Simulation head(C,D,E) is used to test for head and neck entrapment.

Support Services

UTS provide the complete support for the full life of your TS03 Simulation Head Tester Simulation head(C,D,E):

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Test Principle

Test probes are used for assessing completely bound openings for head and neck entrapment.

Standards

EN71-8

ISO 8124-4

1.Insert probe C into the opening with a force of 220 N. If the opening allows the passage of probe C, determine whether the opening also allows the passage of probe D when inserted with a force of 100 N.

2.Insert probe E into the opening with a force of 100 N. If the opening allows the passage of probe E, determine whether the opening also allows the passage of probe D when inserted with a force of 100 N.

3.  Insert the probes perpendicular to the opening and do not tilt them.

TS03 Simulation Head Tester Simulation head(C,D,E) is applicable to the determination of:

head and neck entrapment.
