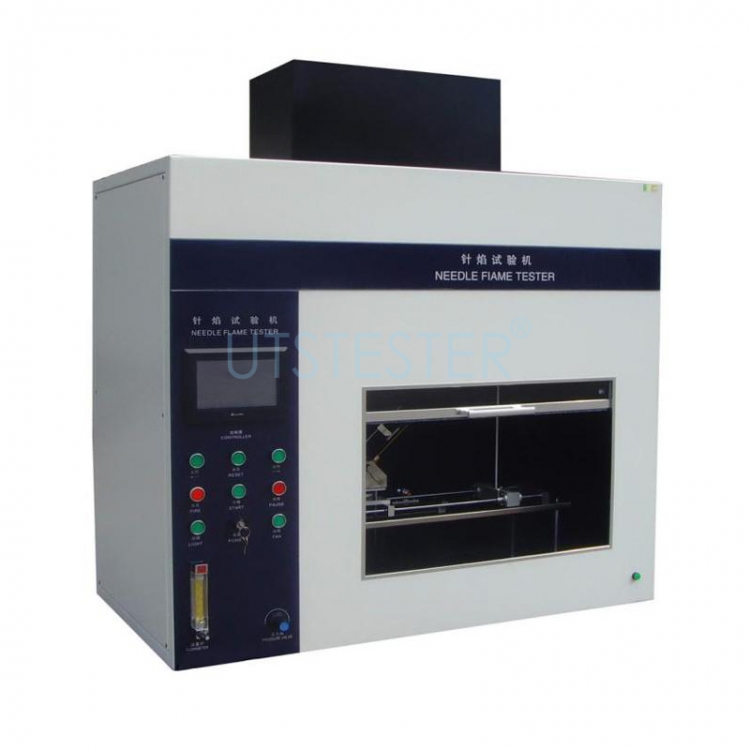

Needle Flame Tester TF02

Needle flame tester is made based on standards IEC60695, GB5169. Mainly used to simulate

products internal generates small flame under the breakdown situation, and assess its ignition

hazard. Applicable for testing flammability of electronic electrical equipment and its components

and elements, solid electrical insulation or other combustible materials.

Needle flame test method can be used for the situation when small parts or component are not

suitable to do glow wire test or horizontal vertical combustion test method.

Working Principle

Due to breakdown situation, for example, A fault current that flows through the leakage path,

overheating of components or parts, and poor contact, are possible to lead to flame and shoot

into nearby components. Needle flame test is to simulate internal sample generates small flame

under breakdown situation, using simulating technology to assess its ignition hazard. Needle

flame test method can be used for the situation when small parts or component are not suitable

to do glow wire test or horizontal vertical combustion test method. If sample is ignited when

doing glow wire test , then need to conduct needle flame test.

Needle flame tester is applicable to electrical products, components, parts and components of

electrical appliances, such as terminal, centrifugal switch and socket.

IEC 60695,GB T5169.5

1. Adopt 2mm thick galvanized cold plate which shaped by Germany trumpf CNC machining center,

with beautiful and high grade appearance.

2. Outdoor grade powder baking technology, which enhance anti-smog corrosion resistance ability.

High quality and without color changing.

3. Equipped with German imported temperature sensor used in airplane and resistance to high

temperature with longer service life.

4. High precision temperature control technology to control temperature error within 2℃.

5. Step motor control stroke, accurate location and without buffer.

6. With the function of program parameter setting, the test parameters can be programmed to be

stored in the controller

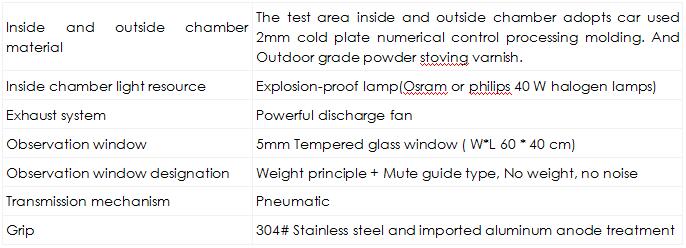

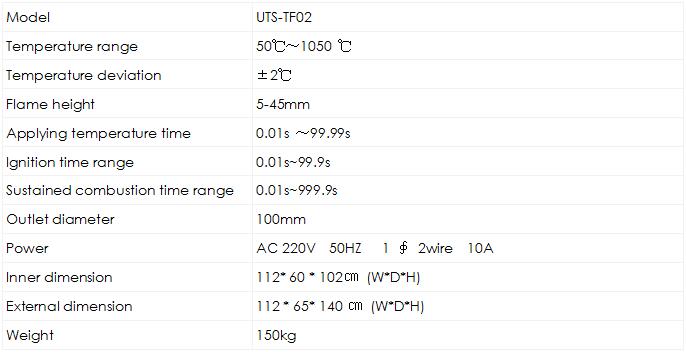

Key Specifications

The structure designation

Control System

Test Materials
