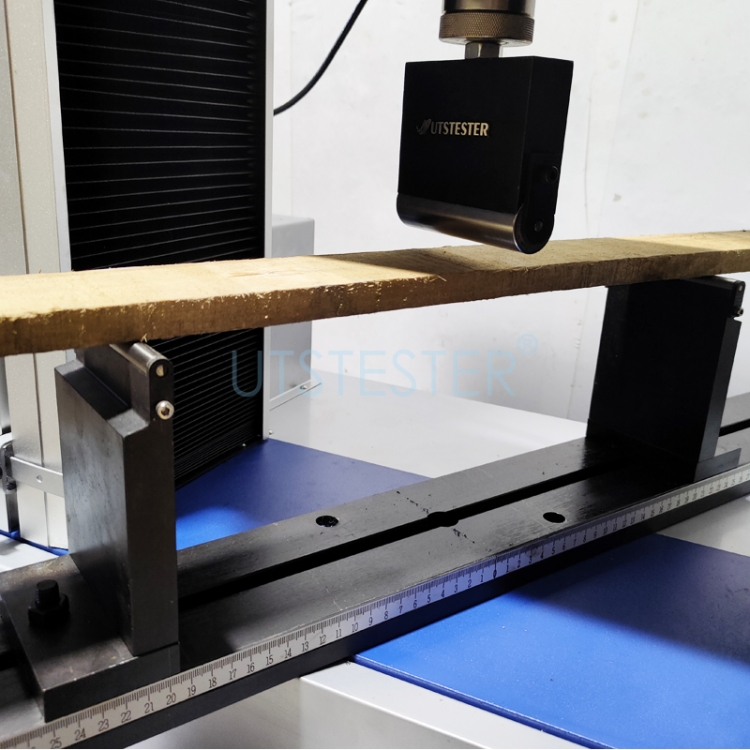

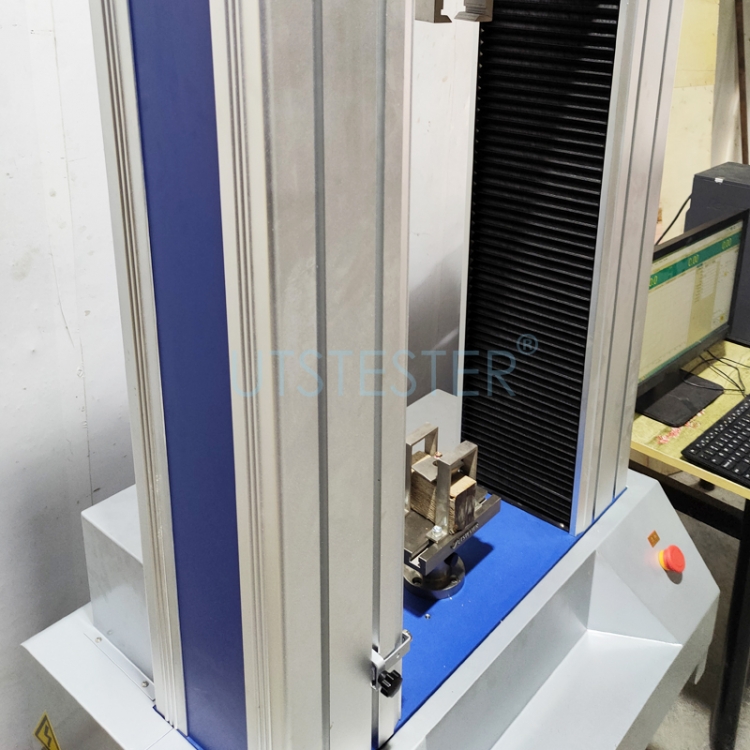

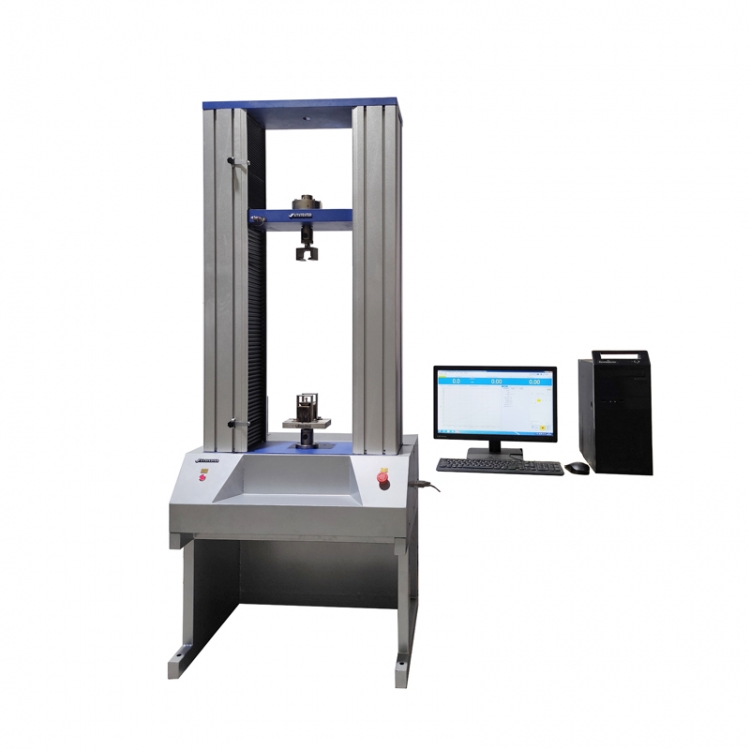

Tensile testing is used in many industries for research, quality and process control. It is designed to determine tensile, compression, bending, shearing force, bonding force, peeling, tearing test, etc, for steel wire, leather, rubber, plastic, textile, metal, nylon thread, paper and materials of footwear, packaging, aviation, petrochemical, construction, electrical, vehicle, etc.
The English software supplied runs on customers’ computer systems, the program provides a particular strength to the machine operation, allowing pre-load of a wide range of test methods and available for exporting, storage and analysis of results. Ready-to-load software together with specific test grips can be provided for various tests.
Features
1. Adopts AC servo driver and motor(vector control) equipped, with short response time for motor and without velocity overshoot and uneven speed.
2. Adopts ball screw and high precision guide rod transmission, with long service time, low noise and slight vibration.
3. Online software support with Windows operational system.
4. Pre-tension can be digital set on software.
5. Equipped with imported encoder to control instrument’s location and elongation.
6. Special aluminum frame, whole machine shell processed with auto technology metal stoving varnish, to make complete instrument much more massiness and elegance.
7. Support bilateral control of mainframe and computer.
8. Tear, peeling testing curve peak value can be selected.
9. Interval length can be set and auto location.
10. Force value calibration: digital code calibration(authorization code), which is convenient for instrument inspection and accuracy control.
11. Whole instrument’s circuit with standard modular design, which is convenient for maintenance and upgrade.
12. Protection device: Mechanical switch protection, up and down limit stroke and overload protection, automatic protection of overvoltage, overcurrent, overheat, undervoltage, undercurrent and electric leakage, emergency switch manual protection.
Software Function
1. Software support with Windows operational system.
2. Computer online software support with Chinese and English operation.
3. Testing methods program can be customized.
4. Testing data report can be transferred to EXCEL, WORD format, etc. Automatically monitor testing results.
5. Test units can be switched freely, such as Newton, pound, kgf, etc.
6. Curve of tested samples and testing results can be showed in the same test report.
7. Testing curve can be saved on the personal computer for reviewing.
8. Testing software includes various materials strength testing methods, which achieves convenient, fast and accurate tests and lower running costs.
Standards
SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411, TM 410
ISO 34-1, ISO 36, ISO 37, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO 20867, ISO19957, ISO20874, ISO22650, ISO 19958, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO 22777, ISO 22776, ISO 22654, ISO 20863, ISO20876, ISO17695, ISO17697, ISO 17708, ISO 17696, ISO17706, ISO 22650
AS/NZS 2210.2-5.2.4, DIN 53331
ASTMD 882,ASTMD5034 ,ASTMD 751/2209 /412/624 FIA 1206; BS 5131- 3.7, 5.11, 5.13 , BS 5131-2.6

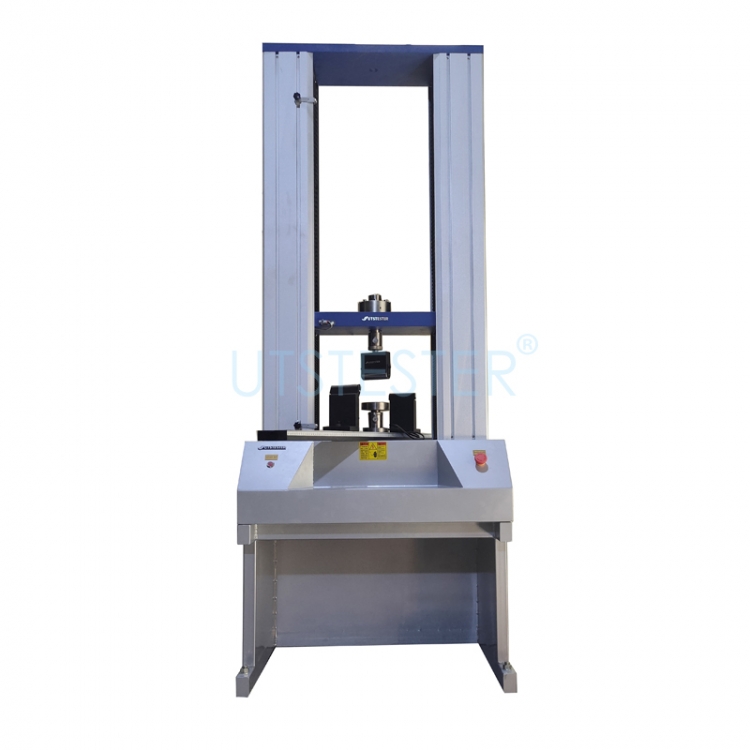

Key Specification
Model
|
H001N
|
Test Speed
|
0.001-1000mm/min
|
Max. Capacity
|
5KN,10KN, 20KN, 30KN, 50KN, etc.
|
Unit
|
kgf, lbf , N , kN, kPa, MPa
|
Load degree of decomposition
|
1/200,000
|
Load accuracy
|
±0.25%
|
Speed accurate
|
±0.1%
|
Effective width
|
410mm
|
Displacement accuracy
|
0.04mm
|
Effective stroke
|
1100mm (Exclude clamps)(Customized)
|
Motor
|
Servo Motor
|
Very low maintenance
|
The selected materials, components and machine detail design produces a robust, durable machine with very low maintenance requirements.
|
Machine protection
|
Load cell protection; protection against overload, impact and overtravel; telescopic covers providing additional protection for ballscrews.
|
Power Supply
|
AC 220V 50/60HZ 10A
|
Dimensions
|
660×530×2130mm(WxDxH)
|
Weight
|
163kg
|
Accessory
Standard Accessory
|
Manual Grips
|
1set
|
English operational software
|
1set
|
Special equipment packing cabinet
|
1set
|
Cable connect with PC
|
1unit
|
Load cell
|
1unit
|
Power wire
|
1unit
|
Optional Accessory
|
Other grips
|
Optional
|
Extensometer
|
Optional
|
Load cell
|
Optional
|
Air compressor
|
1set
|
Computer
|
1set
|
Printer
|
1set
|
