This instrument is mainly to do surface processing for various materials, including paints, electroplate, inorganic and anti-rust oil, and after anticorrosion treatment, test the corrosion resistance of their products. Widely used in the aerospace industry, automobile electronics, electronic electrician, mobile phone digital, plastic products, metal materials industries.
Features

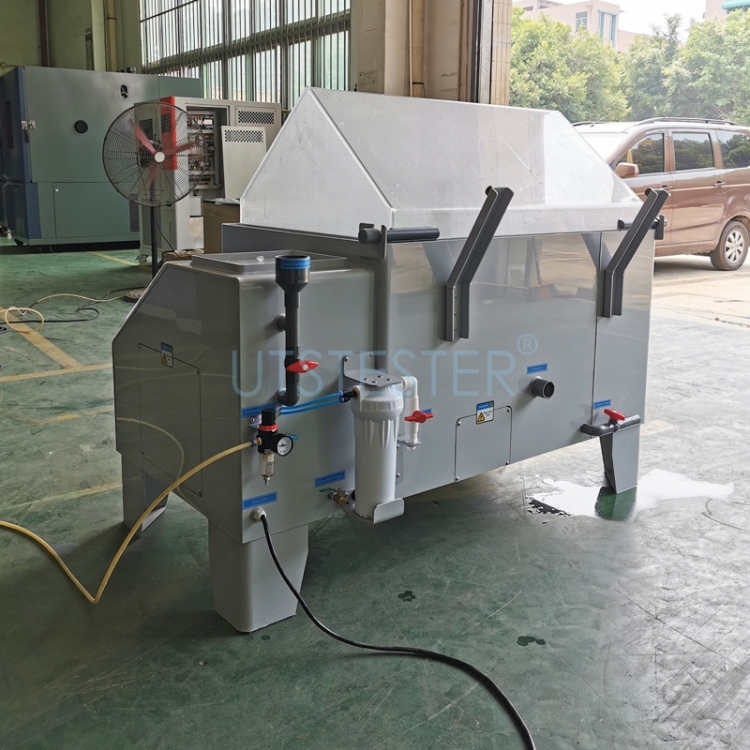

Automatic or manual adding water system, auto supplement water when lack of water, which ensure test will not be paused.
Temperature controller adopts digital display, PID control error ± 0.1 ° C.
Double over heat protection and alarm when lack of water to ensure safety usage.
Test chamber uses steam direct heating mode, ensure fast heating and uniform to reduce standby time.

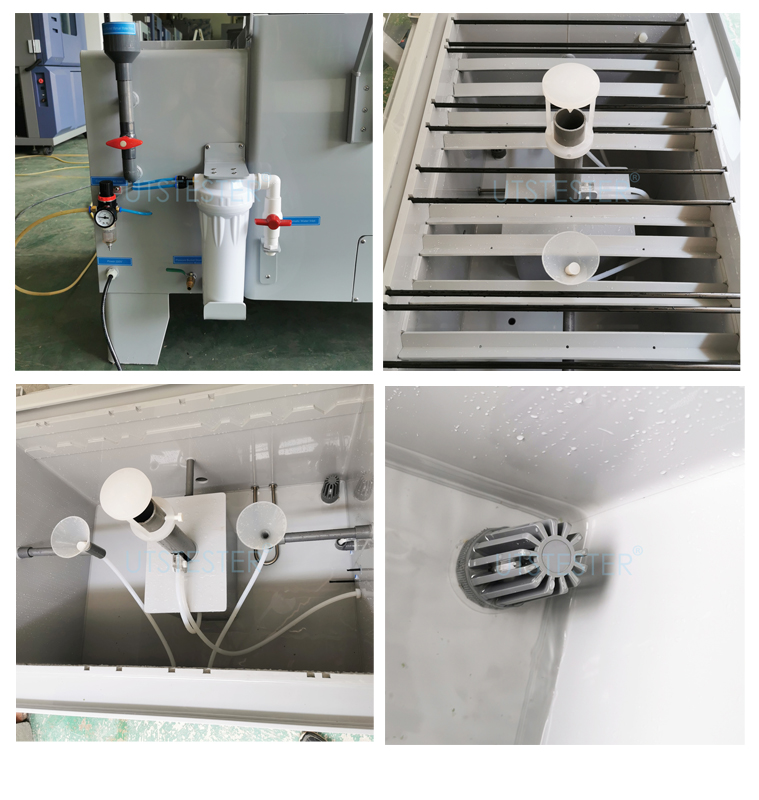

Precision glass nozzle is available to adjust fog and amount of fog.
Test Principle
Compress corrosive solution as air-atomizing to cover each sides of sample. Continuously or circularly conduct this test until sample appear prospective corrosive phenomenon. Record the corrosive time to assess sample’s corrosion resistance.
Test Standards
GB/T 2423.18-2000, GB/T 6461-2002, GB/T 12967.3-91 CASS, GB/T 5170.8-2008, GB/T 5170.11-2008
GJB 150.11A-2008, GB/T 2423.17-2008, GB/T 10587-2006, GB/T 6461-2002, QB/T 3828-1999
ASTM.B117-2009, JIS H8502, IEC 60068-2-11-1981, IEC 68-2-52 1996, ISO 9227-2006
CNS 8886-2002, CNS 4159, CNS 4158
Optional Models
Model
|
Test space size
(L x W x H) mm
|
External size
(L x W x H)mm
|
Volume
|
E002B-108L
|
600*450*400
|
1150*680*1130
|
108L
|
E002B-270L
|
900*600*500
|
1480*860*1200
|
270L
|
E002B-600L
|
1200*1000*500
|
2150*1350*1280
|
600L
|
E002B-800L
|
1600*1000*500
|
2550*1350*1280
|
800L
|
E002B-1000L
|
2000*1000*500
|
2950*1350*1280
|
1000L
|
Key Parameters
Mist spray mode
|
Continuously spray fog(programmable control) and interval spray(Optional)
|
Machine material
|
Imported PVC board & P.P, thickness 5mm
|
Test chamber
temperature
|
Salt water test method(NSS ACSS) 35±1° C
Corrosion resistance test method (CASS) 50±1° C
|
Saturated air barrel temperature
|
Salt water test method(NSS ACSS) 47±1° C
Corrosion resistance test method (CASS) 63±1° C
|
PH value
|
Salt water test method(NSS ACSS) 6.5-7.2
Corrosion resistance test method (CASS) 3.0-3.2
|
Spray mist amount
|
1.0-2.0
|
Power supply
|
Single phase, AC, 220V
|
Demonstration
