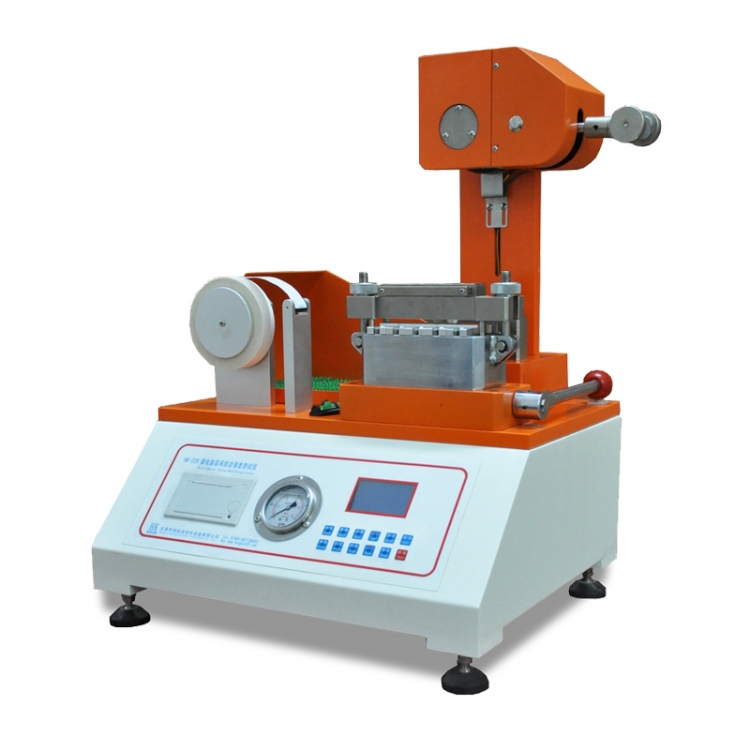

Internal Bonding Strength- Scott Type A031

A031 Internal Bonding Strength- Scott Type is used to determine the internal bond strength for various paper and board materials according to TAPPI T 569.

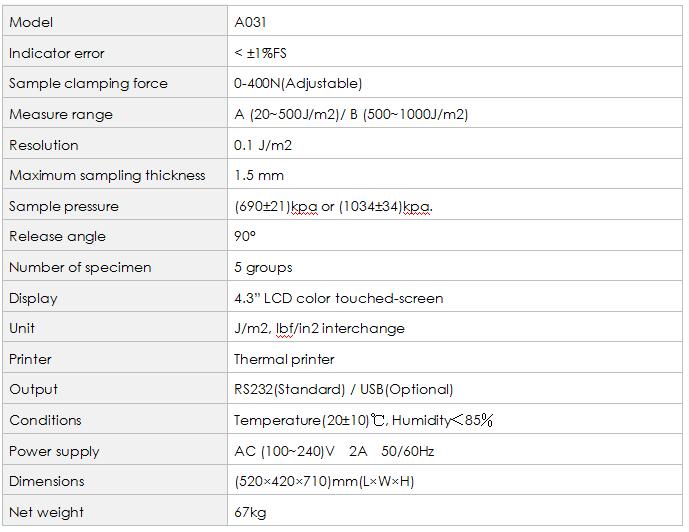

Key Parameters

Support Services

UTS provide the complete support for the full life of your A031 Internal Bonding Strength- Scott Type:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Test Principle

The instrument design is based on a falling pendulum which creates a high speed impact on a paper specimen. The paper specimen is sandwiched between two double-coated tape substrates. The pendulum impact measures the total energy required to delaminate the internal fibers of a specimen in a “Z” type direction into two separate piles. The system also incorporates an automatic sample preparation station which allow five specimens to be accurately prepared simultaneously.

Standards

GB/T 26203

TAPPI T-569

1. The strong steel structure stability, avoid in the process of testing the vibration causes energy loss.

2. Specimen pressurized by a hydraulic device

3. Color touch screen, dual-language operating system

4. With serial port, to connect control software can communicate with PC.

A031 Internal Bonding Strength- Scott Type is applicable to the determination of:

various paper and board materials according to TAPPI T 569.
