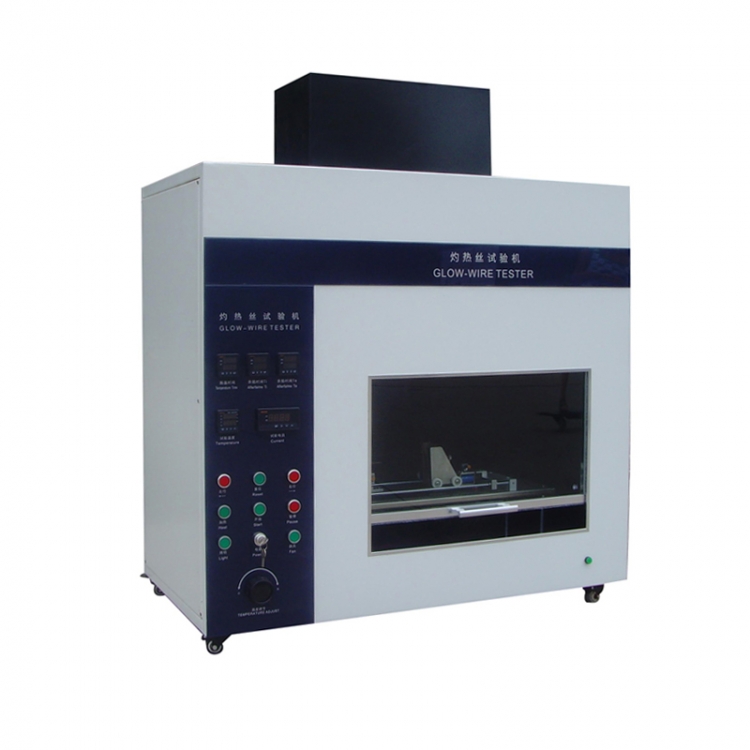

Glow Wire Tester TF01

Glow wire testing Equipment is to assess the fire hazard affected by thermal stress which is generated from the heat source of glow-wire component or overload resistance within short time. Widely applicable for testing fire hazard test for electrical and electronic products, household appliances and their materials, also non-flame ignition test, so as to determine the related materials’ glow wire ignition temperature, flammability and flammability index.

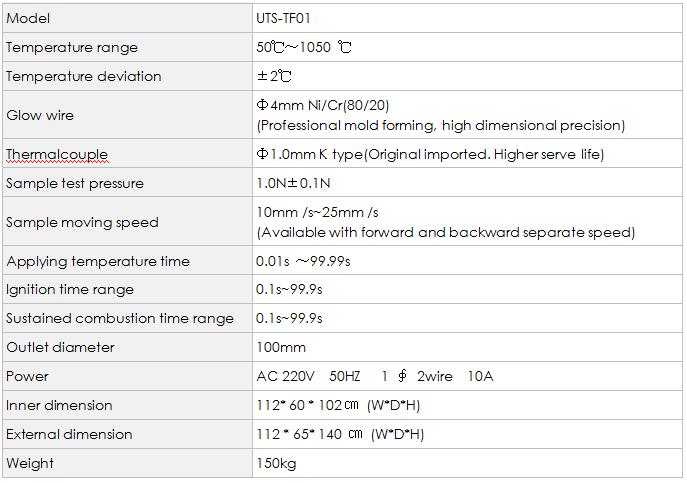

Key Specifications

Support Services

UTS provide the complete support for the full life of your  Glow Wire Testing Machine:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Standards

IEC 60695-2-10; IEC60695-2-13;

GB/T5169.10-2006; GB/T5169.11-2006; GB/T5169.12-2006; GB/T5169.12-2006; GB 4706.; UL746A

1. Adopt 2mm thick galvanized cold plate which shaped by Germany trumpf CNC machining center, with beautiful and high grade appearance.

2. Outdoor grade powder baking technology, which enhance anti-smog corrosion resistance ability. High quality and without color changing.

3. Equipped with German imported temperature sensor used in airplane and resistance to high temperature with longer service life.

4. High precision temperature control technology to control temperature error within 2℃.

5. PLC + Step motor control stroke, accurate location and without buffer.

Glow Wire Tester from UTS is applicable to the determination of:

electrical and electronic products, household appliances and their materials.
