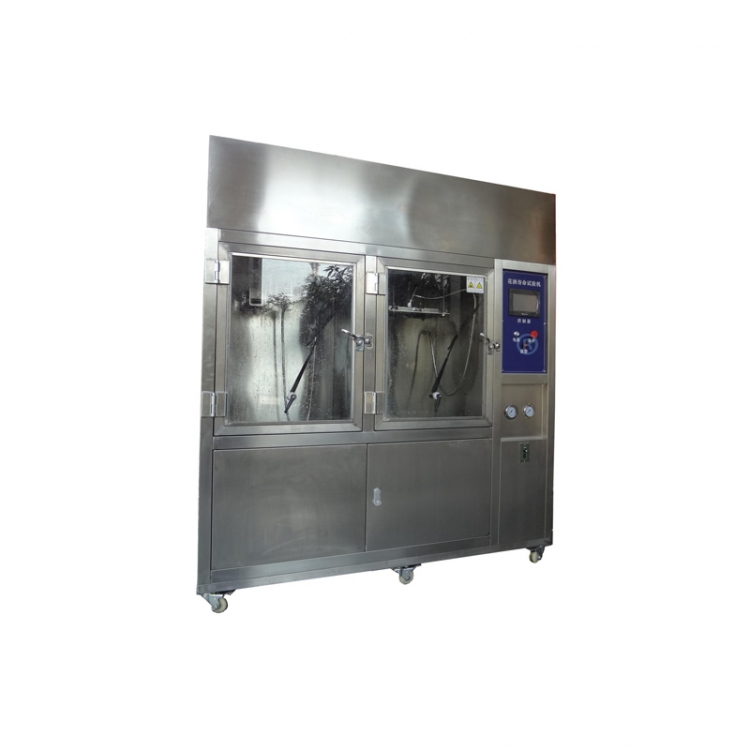

Washbasin Cold and Hot Water Impact Testing Machine E003N

Washbasin Cold and Hot Water Impact Testing Machine E003N

  • Model :

    E003N
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    EN 14688
Inquiry

It is used to test the life test performance of cold and hot water resistance of wash basin adjusting ring switch.

Working principle: according to the relevant standards of various countries or customer specific requirements, to move the executive agencies, mechanical tooling, instruments and meters, pipelines

And rack and other integrated specifications of the test framework;  Constant pressure frequency conversion water supply, refrigeration and heating system, supply the tooling accurate pressure and temperature medium;  Industrial control end preset action process, life cycle, pressure, temperature, frequency, time, Angle and other action parameters, to achieve the test conditions of the system.  The intelligent electrical system is used to control the running state of the whole machine, and the life performance of the shower and ball head can be identified through observation, analysis or follow-up of other functional tests, so as to reach the life test conclusion of the shower and ball head.

Standards

EN 14688:2015 + A1:2018 Sanitary equipment


Features

1 a total of one work station, can carry out a ceramic cold and hot water washbasin life test;

2 hardware and software, in-depth understanding and application of national standards or customer characteristics, to achieve high fidelity life performance test;

3 touch screen display: test water temperature, pressure, flow, times, easy to test analysis and observation;

4 man-machine dialogue function of the system: convenient and quick setting of experimental conditions, real-time monitoring;

5 The tooling has strong adjustability, high simulation degree of execution action, the overall mechanism is flexible and stable, suitable for the installation and reliable operation of multi-style products;

6 Action actuator adopts step drive;

7 Reasonable structure and style design, not only improve the humanized operation of the machine, but also easy maintenance of the equipment;

8 single machine pressure regulating, pressure gauge reading, intelligent counter automatic counting, detection value preset, automatic stop when reaching the preset value, all operation

By PLC according to programming or man-machine interface (touch screen) automatic control;  Adjustable frequency and speed of action;

9. Constant pressure frequency conversion water supply system for hot and cold water is adopted to ensure the accuracy of test conditions and parameters, and the system achieves good energy saving effect;

10 Adopt Xiangrui refrigeration integrated technology and heating system to ensure the accuracy and stability of static and dynamic water temperature;

11 Water tank level control: automatic water refill and overflow function;

12 automatic sound and light alarm function of the system;

Electrical system overcurrent, overload, phase loss, leakage protection function, and static grounding function;

14 The overall quality of the equipment is excellent, safe and reliable, and 4 rollers are made under the machine for easy movement.


Test Methods

When the water supply temperature at the hot water end is 70℃±2℃, the dynamic pressure of the water supply is 0.3MPA±0.02MPA, the flow rate is 0.10L/S±0.02L/S, and the conversion speed is not more than 2S, when the test is carried out, supply 2Min first. Cold water (15℃±2℃), then supply 2Min of hot water for one cycle, and carry out 300 cycle tests (the number of cycles can be set).

After the test, inspect the samples for water leakage, cracks, deformation and functional failures.

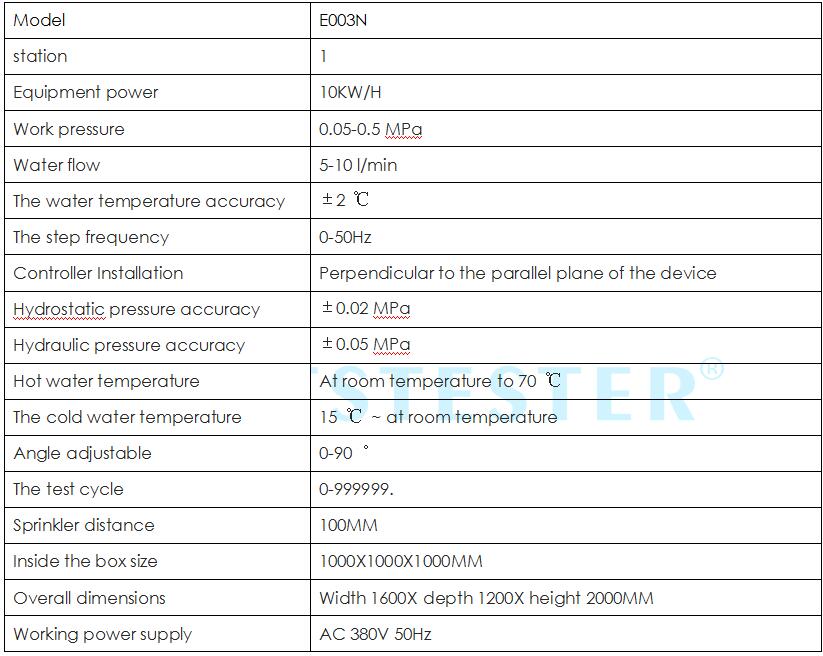

Key Parameters
