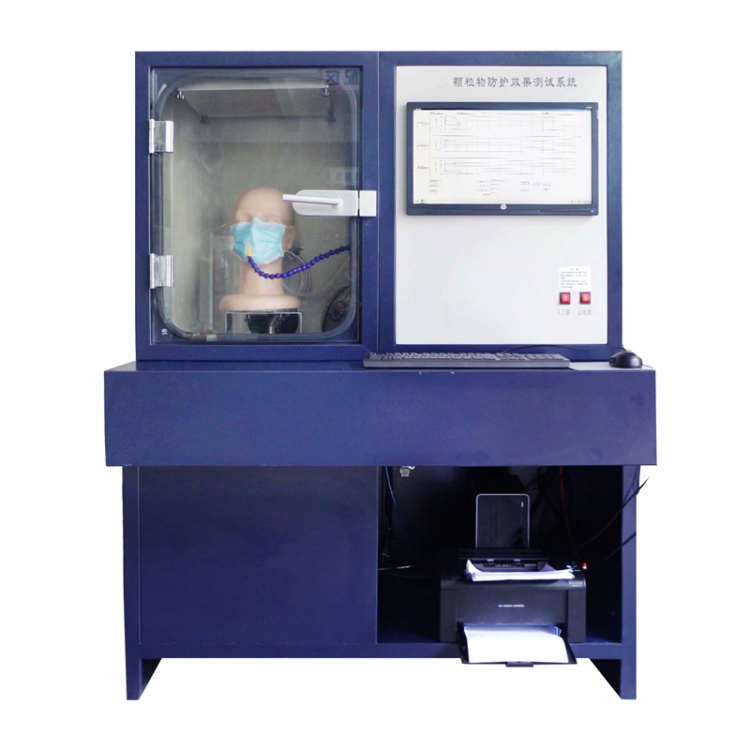

Particle Protection Effect Testing System MP13

Particle Protection Effect Testing System used for rapid and accurate detection of mask protection effect and respiratory resistance.

Standards

GB 2626, GB/T 32610

Features

1. Pressure difference measurement adopts imported high-precision pressure difference transmitter to accurately measure sample resistance.

2. The concentration test adopts the well-known laser particle counter (or photometer) of the industry to detect the concentration of particles in the upper and lower reaches of the sample, so as to ensure the authenticity and accuracy of the sample used in the upper and lower reaches.

3. Equipped with temperature and humidity sensor, real-time display of environmental temperature and humidity, good sealing of protective effect test bin, equipped with operation gloves, convenient replacement of inspection mask.

4. The protection effect test adopts the simulation of human respiration to test the protection effect of the upper and lower reaches of the respirator and directly display the protection level through calculation.

5. Touch screen control, simple and intuitive operation.

6. Test results are automatically calculated and displayed by the system and printed out.

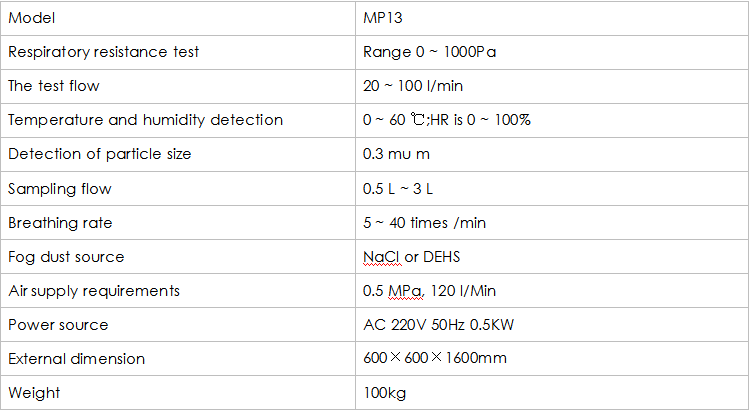

Key Specifications
