Ozone Chamber E004

Ozone Chamber E004

  • Model :

    E004
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS,etc
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    AATCC 109 & ISO 105 G03
Inquiry

This series of test chamber produces high concentration of ozone by ozone generator, which can be used for aging test of non-metallic materials and organic materials (coating, rubber, plastic, paint, pigment, etc.) under ozone condition.



Control system

Temperature controller adopts the original imported microcomputer intelligent liquid crystal controller,PID system control, with the function of automatic calculation, can reduce the inconvenience brought by the setting, man-machine dialogue operation mode, touch input.



Features

(1)Numerical control machine tool is used to process and shape the shell, the shape is beautiful and generous, the explosion-proof door handle is easy to operate.

(2)The liner adopts imported high-quality mirror stainless steel plate

(3)The insulation material is high density glass fiber cotton

(4)The air transport system adopts the long shaft fan motor, resistant to high and low temperature aluminum alloy multi-wing wind wheel, so as to achieve the forced convection vertical diffusion circulation

(5)Layer high and low temperature resistant silicone seal to ensure that the test area is closed.

(6)The bottom of the machine adopts high quality universal moving wheel and fixed foot cup

(7)The observation window is made of multi-layer hollow tempered glass with conductive film on the inside

(8)Built-in 360 ° rotating sample rack 3 sets of static stretch +3 sets of dynamic stretch

(9)Attached sample aluminum alloy sample fixture 6 pairs

(10)Exhaust air system, after the test is completed, the high concentration of ozone in the box will be discharged outside to prevent human body from inhaling high concentration of ozone and causing poisoning


Standards

AATCC 109 & ISO 105 G03

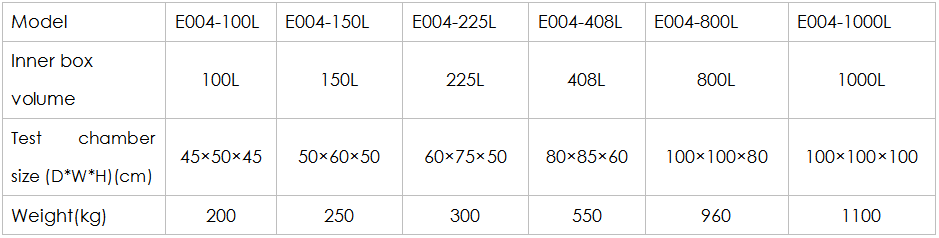

Optional Models

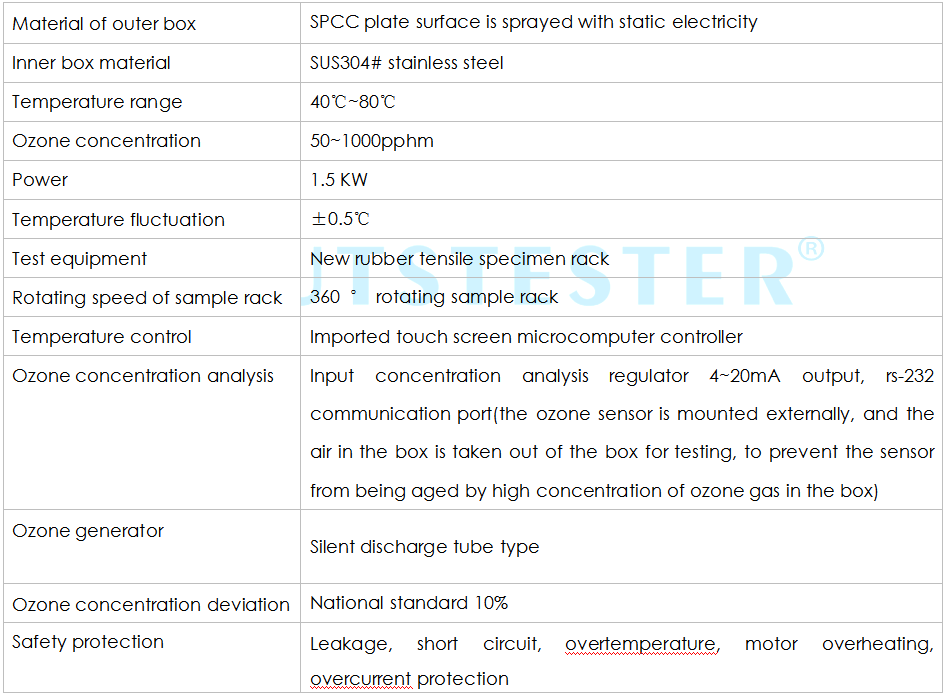

Key Parameters
