Martindale Abrasion Tester H056BN

  • Model :

    H056BN
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025
  • Lead Time :

    10-15 Days
  • Payment :

    TT, LC
  • Original Region :

    MADE IN CHINA
  • Port Of Dispatch :

    CHINA PORT
  • Standards :

    ASTM D4966, BS-3424, DIN-53863, GB/T 20991, SATRA TM31, ISO 5470-2, GB/T 19089, GB/T 3903.16 , EN ISO 12947, EN ISO 20344:6.12, BS EN 388:2003
Inquiry

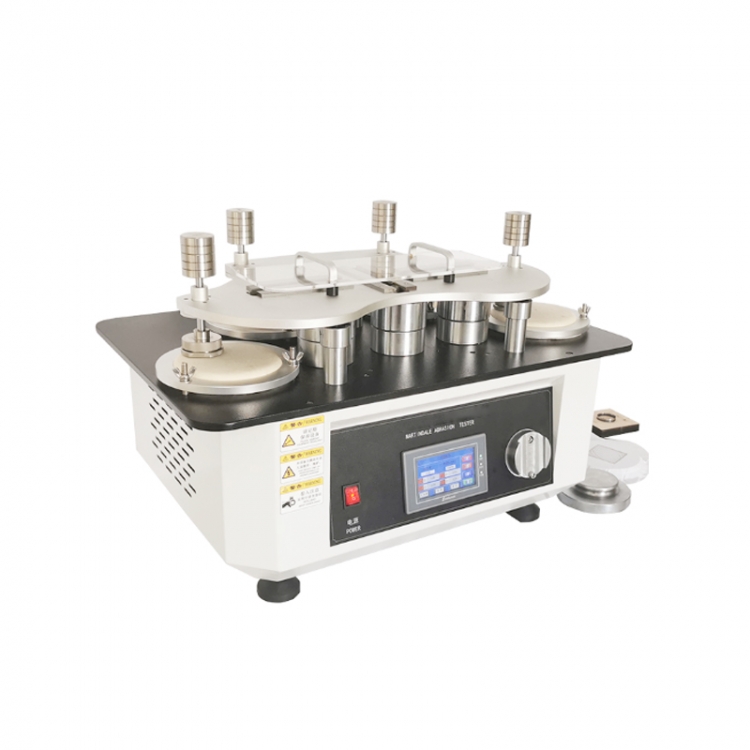

H056BN Martindale Abrasion Tester


Overview

Martindale wear and abrasion tester, available with up to 9 stations and adaptable to test a wide range of applications - socks, textiles, leather, carpets, coated upholstery, and shirt collars.

This machine is ideal for wear-resistant testing of various types of fabrics and leather footwear, upholstery, garments, gloves and other such products. Martindale is internationally recognized as a abrasion resistant test standard for fabrics and can also be used to test the pilling performance of fabrics.

H056 Martindale tester can also be used for abrasion resistance and durability of rubber gloves, plastic and rubber coatings, plastic and rubber coated fabrics, using a piece of granulated sandpaper instead of a standard abrasives.
The machine can be used to test the dirty condition of light-colored materials. In such tests, a special ink-printed fabric is used instead of a standard friction agent.
A small amount of standard abrasive cloth is supplied with the machine.



Standards
ASTM D4966, BS-3424, DIN-53863, GB/T 20991,
SATRA TM31, ISO 5470-2, GB/T 19089, GB/T 3903.16 ,
EN ISO 12947, EN ISO 20344:6.12, BS EN 388:2003



Features

Working Position Variety
Mini martindale tester is available in 4, 6, 8, 9 station models. Full kit provided to do abrasion resistance test and pilling on textiles, coated fabrics, leather, socks, soiling, etc.

Friendly design
Gives access to adjust test speed and safety lid equipped to cover the test rod.


Precision Motion

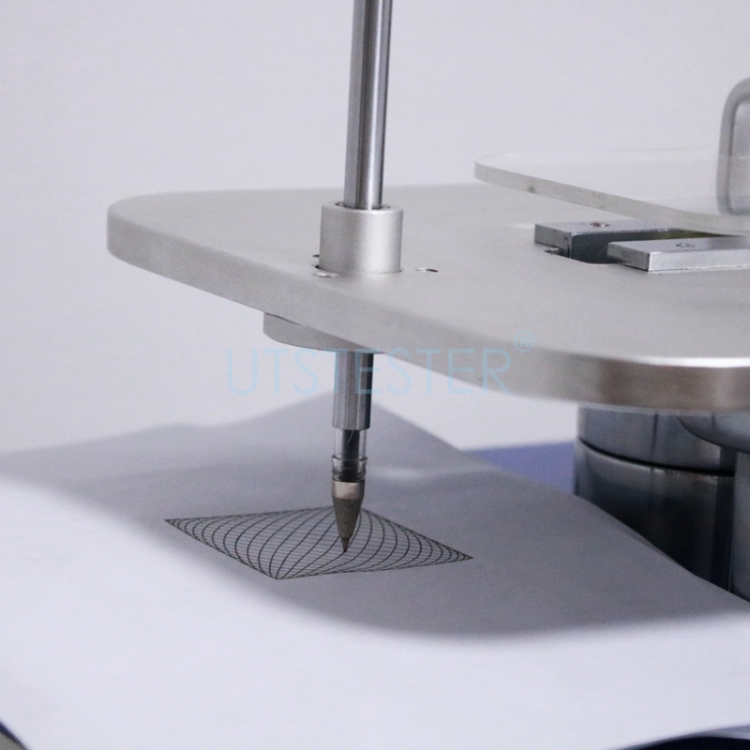

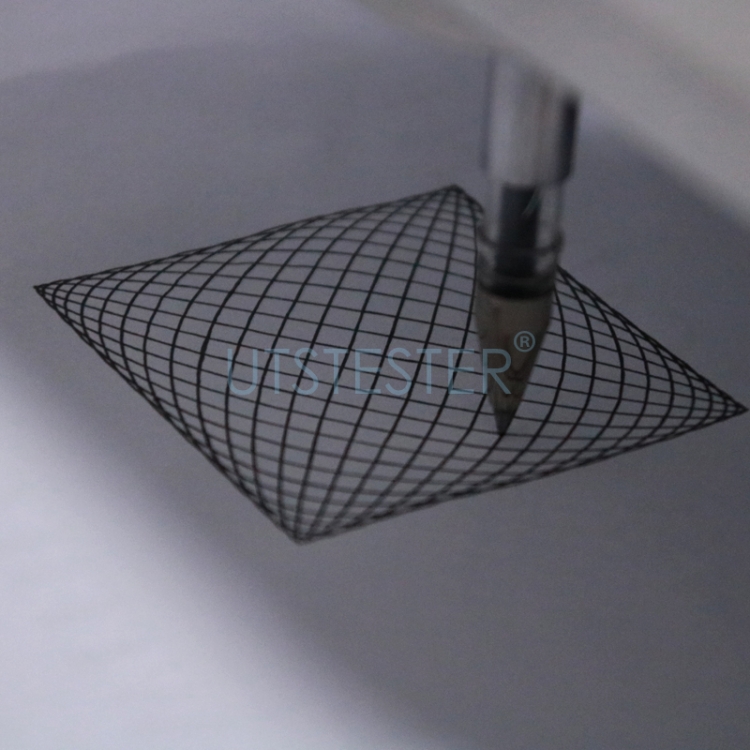

Motion according to 24mm and 60mm Lissajous track.

LCD & Touch screen Display
Simple to use UTSTESTER Touch control system with individual station counters , providing easy operation.



Specifications

Model

H056BN

Working positions

4

Display

Touch Screen

Abrasion table

≧¢125mm

Load

595 g , 795 g

Lissajous figure

60±1 mm x 60±1 mm

Press load

Mass : (2.5 ± 0.5) kg

Diameter: Φ(120 ± 10) mm

Rotary speed

47.5 ± 2.5 r/min

Sample exposed area

645 ± 5 mm2

Control mode

LCD 0~99,999,999

Pressure plate

SUS 304 stainless steel

Lissajous figure

60±1 mm x 60±1 mm

Power supply

1∮, AC 220V,3A

Dimensions

570×640×340mm. ( L x W x H )

Weight

78kg



Accessories

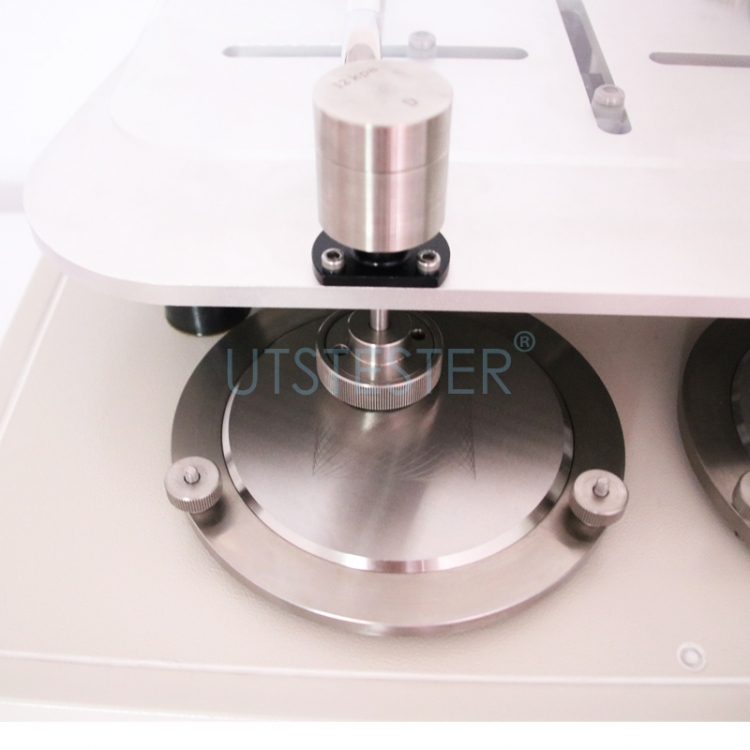

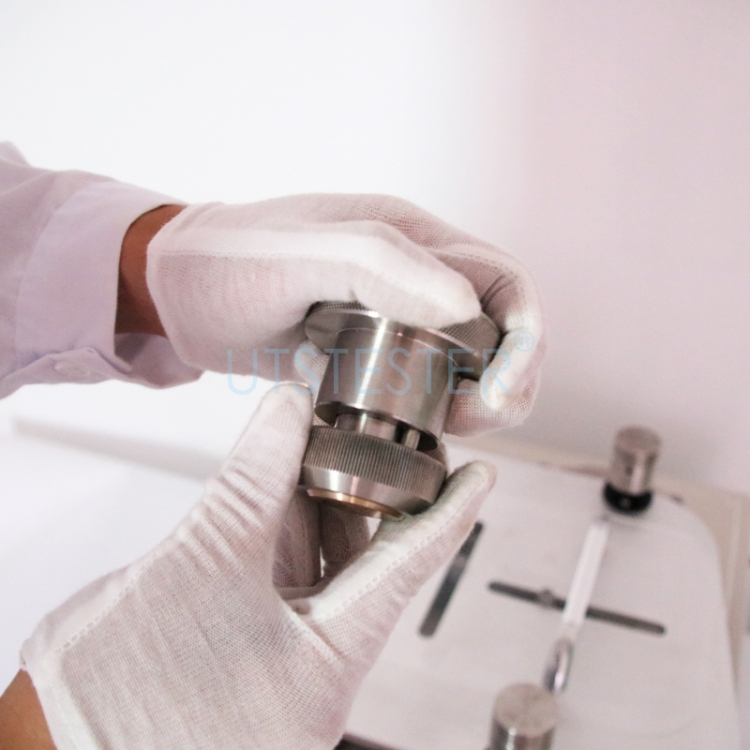

Abrasion Weight and Holder

1unit

Φ165mm Standard Abradents Fabric

2units per position

Φ165mm Standard Woven Felt Discs

2units per position

Φ44mm Standard Backing Foam

60units

Press load

1unit

Power wire

1unit




Materials To Be Tested
