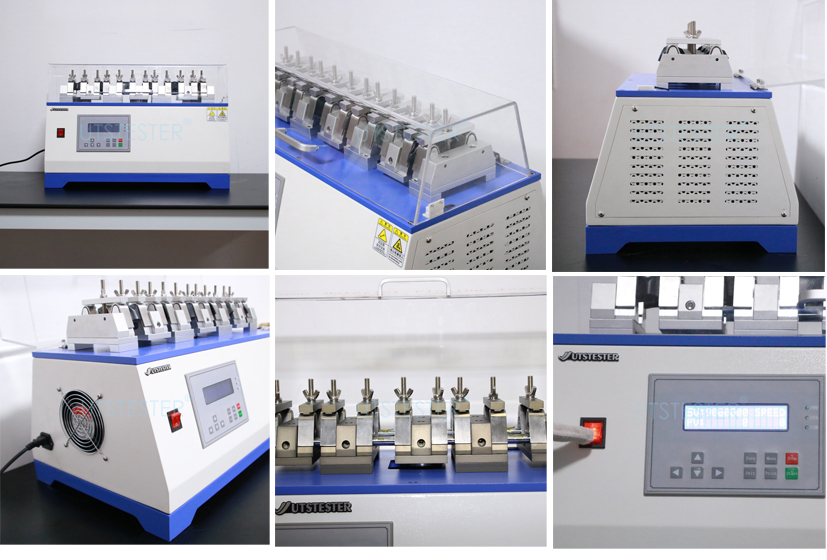

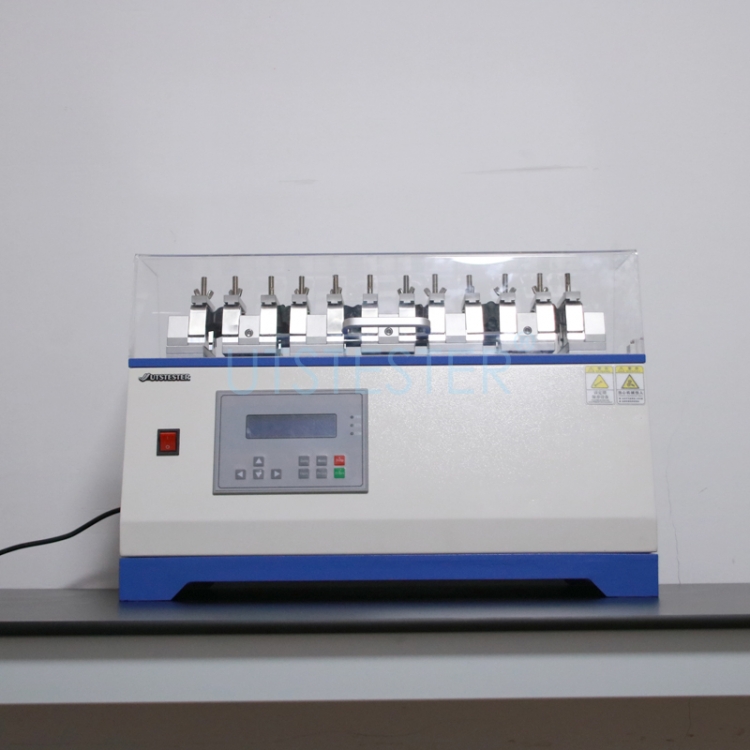

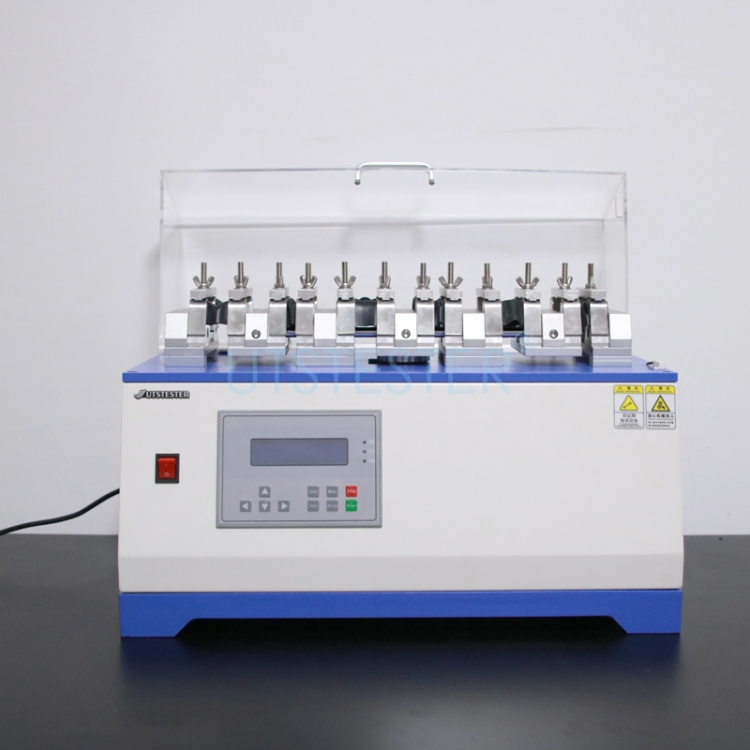

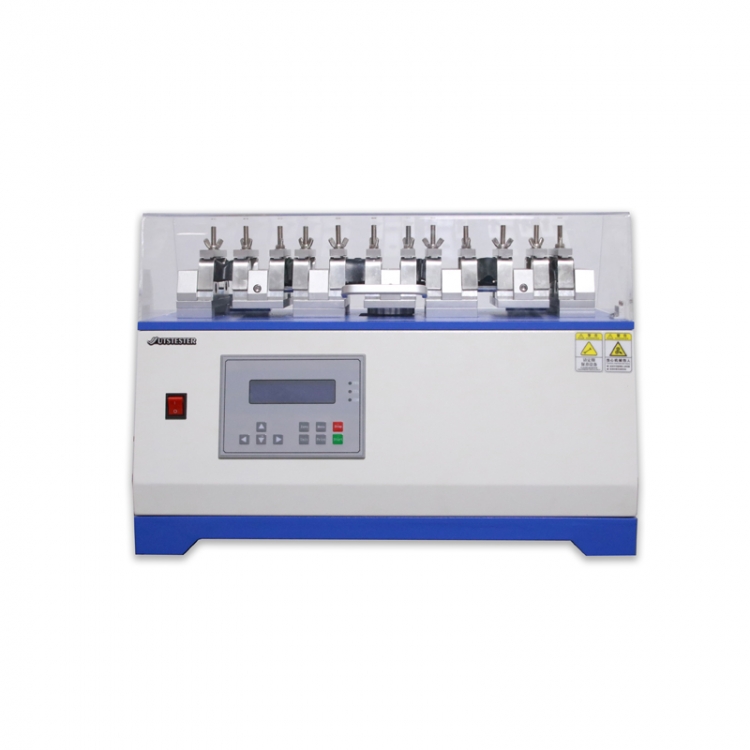

Vamp Material Flexing Tester H049

Model :
H049
Brand :
UTSTESTER
Certificate :
CE, ISO 17025
Lead Time :
10-15 Days
Payment :
TT, LC
Original Region :
MADE IN CHINA
Port Of Dispatch :
CHINA PORT
Standards :
SATRA PM25 GB/T 20991 6.5.2 GB/T 20991 6.5.2 ISO 20344 ISO-4643 ISO 5423 ISO 22288

Inquiry

Overview

To determine flexing resistance or physical damage for all of vamp soft materials including leather, clothing and upholstery coverings. It also can be used to test seam construction during flexing.

Test Principle

Simulating vamp flexing state during person wear shoes. Fix samples on the V shape of fixtures and fixtures do relative motion to make two fixtures close to each other and samples flex. During testing, fixture do uniform motion, samples are flexed repeatedly, evaluate sample breakage or desalination phenomenon.

Standards

SATRA PM25 GB/T 20991 6.5.2 GB/T 20991 6.5.2

ISO 20344 ISO-4643 ISO 5423 ISO 22288

Key Parameters

Model	H049
Working positions	12
Speed	300 ± 30 times / minute
Movable fixtures moving stroke	19mm ± 1.5 mm
Maximum interval between 2 fixtures	28.5 ± 2.5 mm
Minimum interval between 2 fixtures	9.5 ± 1.0 mm
Counter	LCD, 0- 999, 999

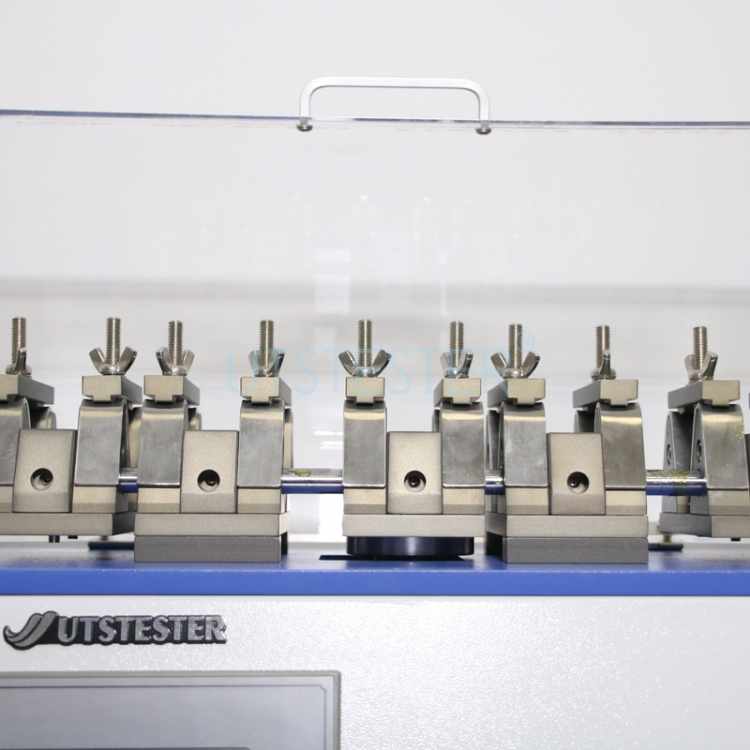

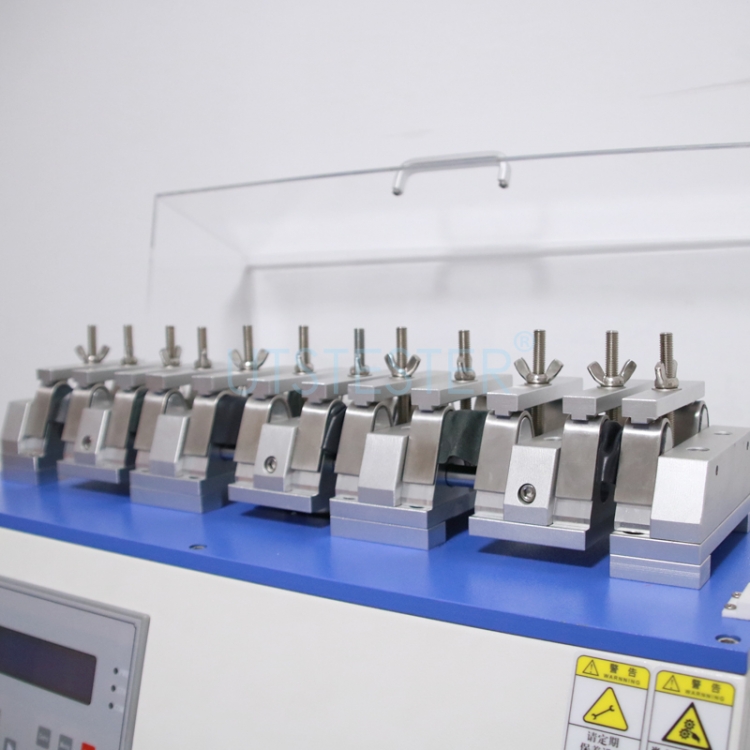

Fixture	40°V-shape 6.4mm(R)
Power supply	1∮ AC 220V 3A
Dimensions	105 cm x 50 cm x 50 cm ( L x W x H )
Weight	68kg
