Ventilated Drying Oven is used for moisture content and moisture regain test for various kinds of textile materials and its product. Comply with test standard ISO 7211-5.

Features:

1.The machine is mainly used in checking material and products’regain of cotton,wool,gunny and silk,It is also adopted to dry materials with temperature constant.

2.With its structure of double air holes and system of blower,the machine has features of fast air circling,fast air exchanging and equal temperature.

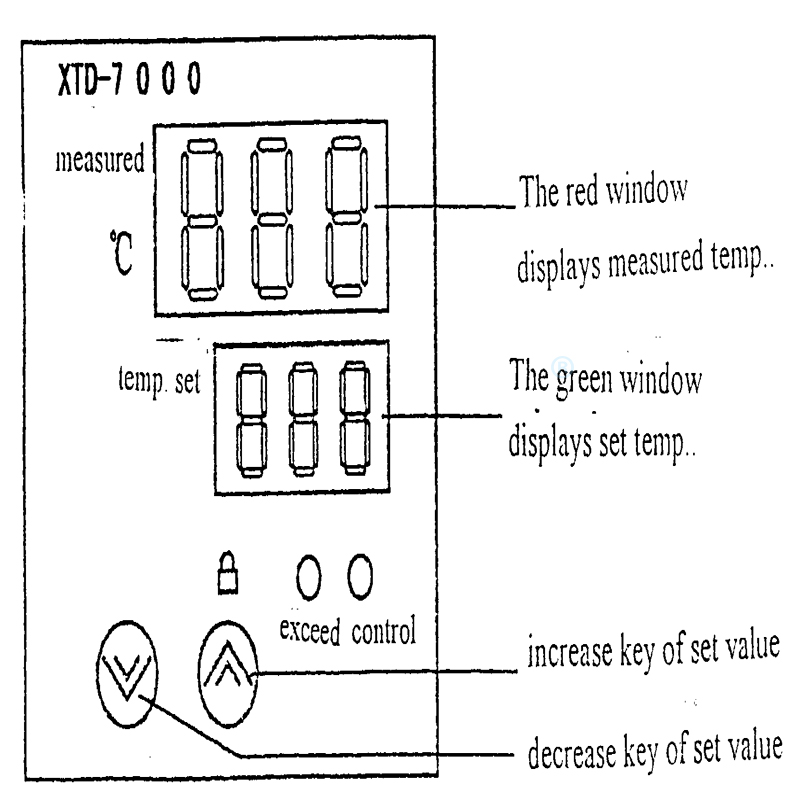

3.An intelligent digital displayer is designed to show and control temperature with high accuracy,good reliability and clear,direct display.

4.Reliable limit temp protect device ensures the machine running safely,When the temp is exceed its limit,The power will automatically shut-off and the machine gives an alarm.

5.The basket rotating system is adopted frictional rotating structure(at the top of box).So it is convenient for repairing.With hand,it can also counter-rotate.

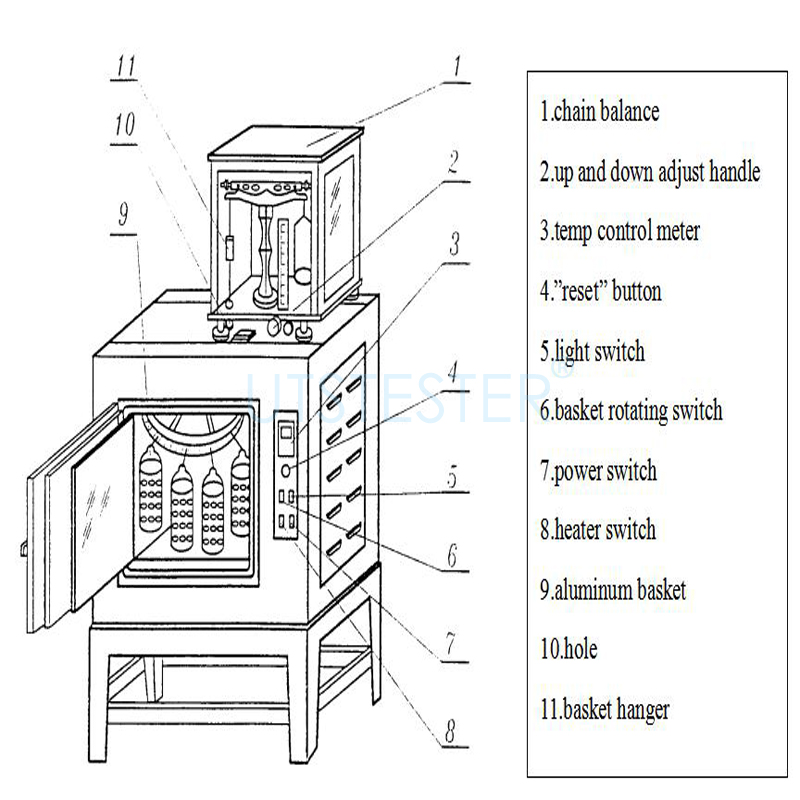

Outline figure

CAUTIONS:

(1)This machine is not explosion-proof,so any explosive is forbidden into the box.

(2)The machine should be reliably connected to earth.

(3)The aluminum basket can stay in box even it is not used.If there is any dust on basket,brush it with alcohol.The eight baskets should weight same.Soft lead can be added to keep their weight same.

(4)If the machine has any problem,it must be repaired by professionals,or you can direct contact to out company.

(5)Inside dimension:570×600×450mm
