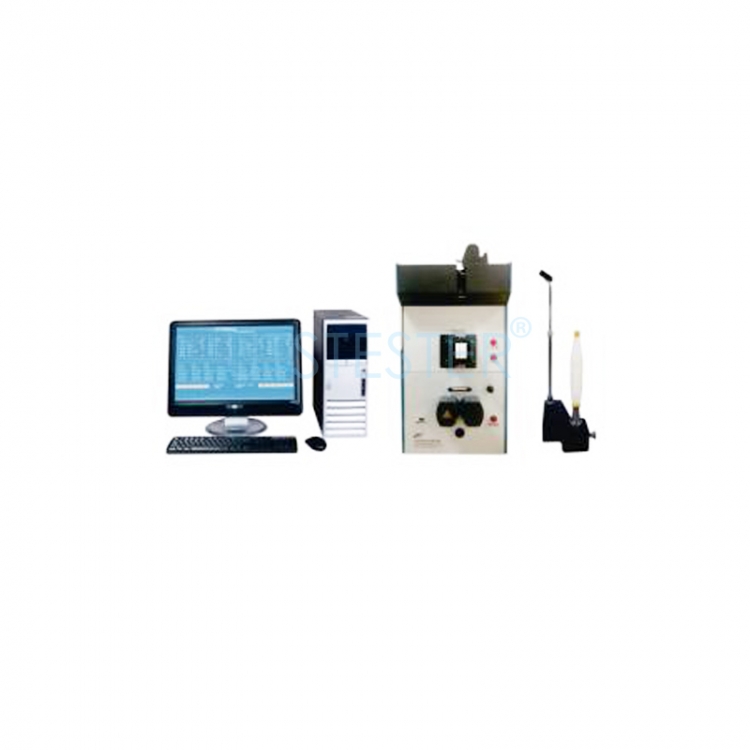

Yarn Evenness Tester Y010F

Yarn Evenness Tester Y010F

  • Model :

    Y010F
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS,etc
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
Inquiry

Product Information

Specially designed to determine spun yarn’s evenness only.


Features

1. Adopt advanced driving technology to realize the 800m/min high-speed

test.

2. The detection sensor is automatically moved and changed according to

the fineness of the yarn measured, and the test results are more accurate.

3. Automatically teariness to zero, automatically adjust the mean value,

which is more convenient and more efficient.

4. Expert analysis system can evaluate yarn quality level and provide users

with technical and equipment failure analysis results.

5. Unique CV-L curve analysis software can quantitatively analyze the

process of yarn non-periodic irregularity and can be traced back to the

production process in real time.

6. The uneven curve can be saved, played back and marked on the uneven

curve.

7. Automatic alarm when the yarn is broken during testing.

8. Strong statistical analysis function, providing annual and monthly product

quality level analysis graphics and quality trends as the basis for user

scientific management.

9. Use the graphical interface to coordinate operation with the detection

extension panel button to realize one-key operation to complete the test.

10. Optional bamboo yarn function, and can provide stable and detailed

quality analysis for the irregular bamboo yarn problem.

11. Optional yarn defect classification function.

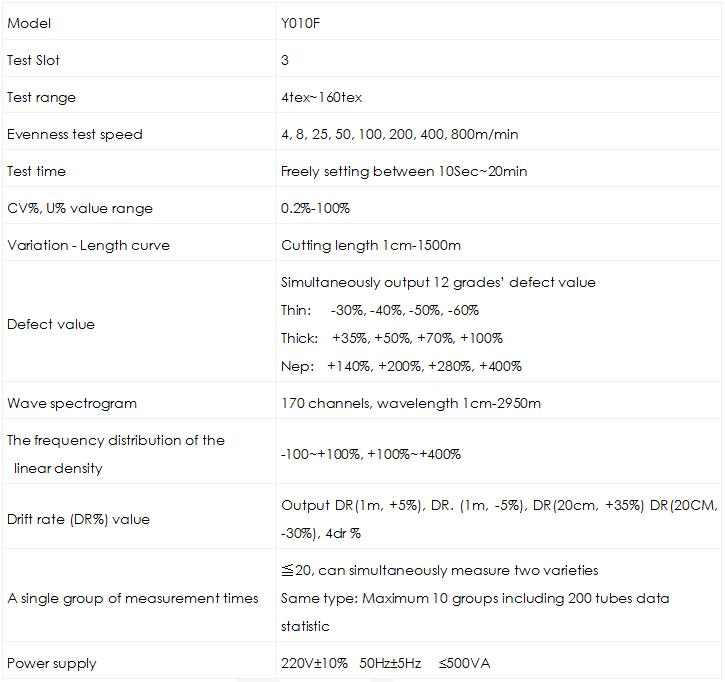

Key Specifications

Yarn Evenness Tester Y010F

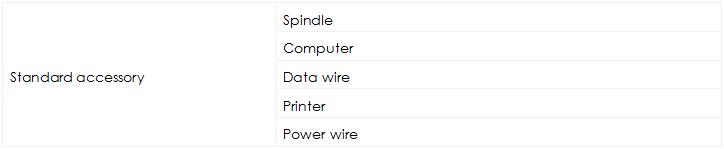

Accessory

Yarn Evenness Tester Y010F

Application

Yarn Evenness Tester Y010F
