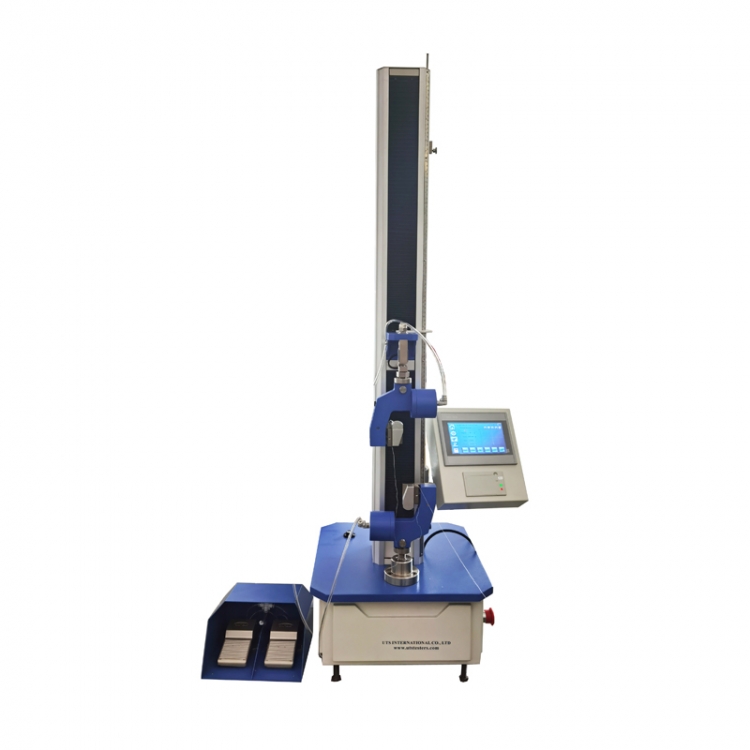

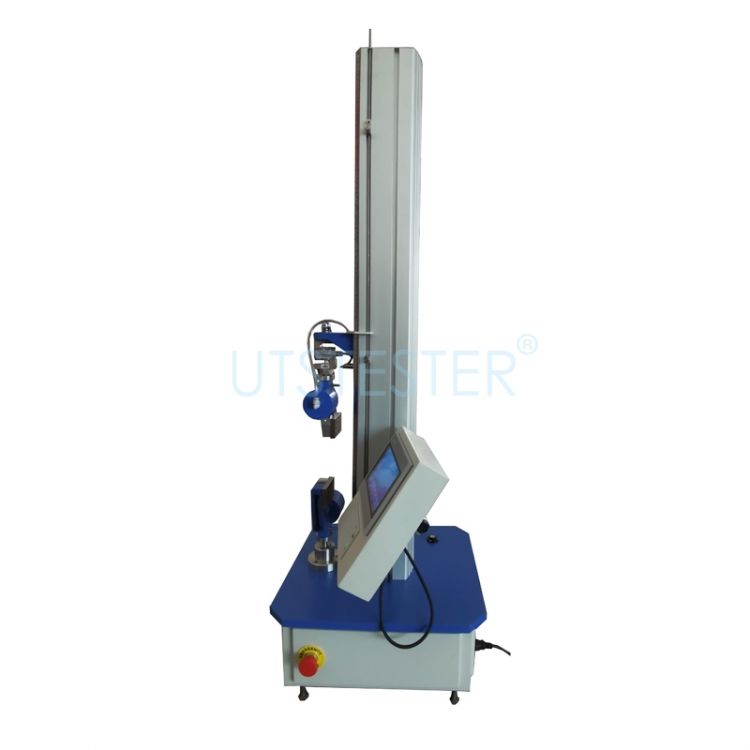

Single Column Universal Tensile Testing Machine M002A

Universal testing machine is most commonly used for quality control, inspection, physical test, mechanics research, material development and production environment. The testing is in a tensile or compression mode in a single frame or dual column. Extra test functions include tension, compression, bend, shear, bonding strength, break strength, peeling, tearing, cyclic and flexure, etc.

This test equipment is typically found in applications and industries, such as rubber, plastics, leather, metal, composites, nylon line, fabrics, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, aviation, petrifaction, electrician, vehicle, etc. Wildly used for R & D and production.

Capacities for this model ranges from low-load forces of 10N up to high capacity 10KN with 2 optional stroke 11oo mm & 900 mm as well as the customized stoke.

Standards

ISO13934.1, ISO13934.2, ISO13937.2, ISO 9073.4, ISO13936.1, ISO13936.2, ISO13935.1, ISO13935.2,

ISO 37, 13936-3, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18

ASTM D5034; ASTM D5035; ASTM D2261; ASTM D5587; ASTM D4964; ASTM D3936; ASTM D1683, D 434, D751, D885 , D2256, D2724, D2731, D3787, D4034, D5733, D5735, etc.

GB/T19976;  GB 8688; FZ/T80007.1;  FZ/T20019;  FZ/T70006;  FZ/T70007

BS 2543, 2576, 3320, 3424, 4303 , 4304,

M&S P11, P12, P13, P14

JIS L1096, etc

Features

1.The instrument is made of aluminum alloy, and the surface is treated with high temperature curing spray, which is resistant to scratches and easy to fade.

2.Imported AC servo drive, ball screw, can be set for wide range speed, suitable for all kinds of

material mechanical property testing.

3. The instrument is equipped with high precision sensor for imported load, high-speed 24 bits A/D, and effective collection frequency reaches 1000Hz.

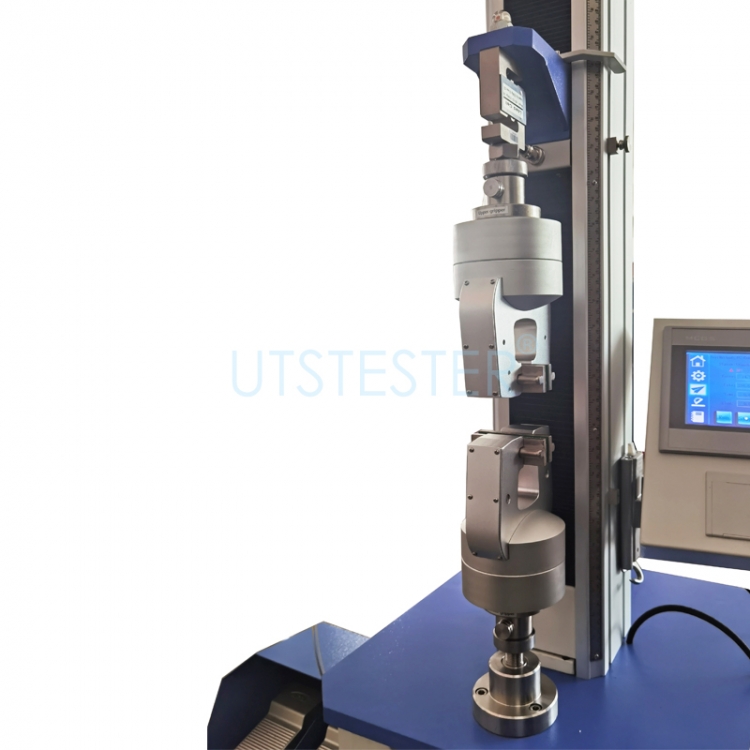

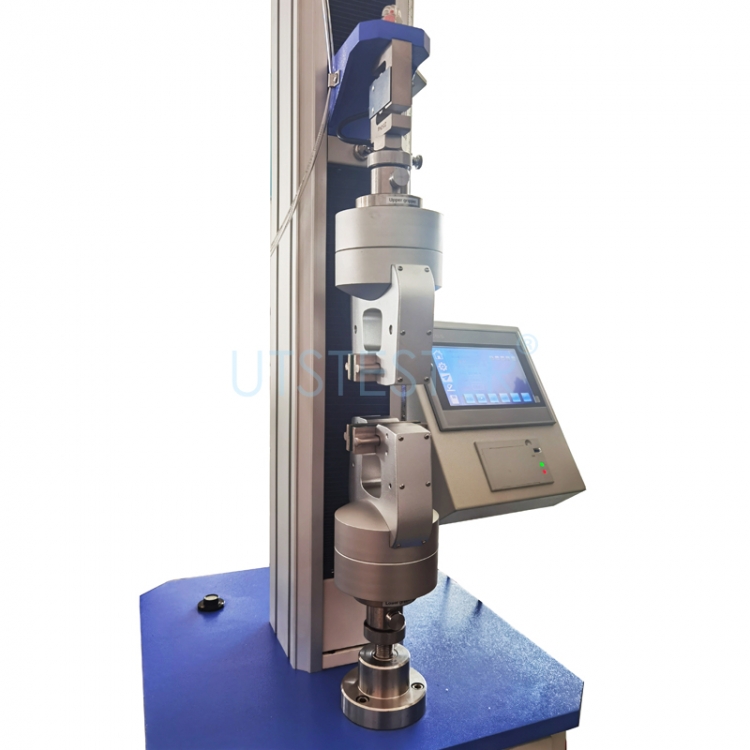

4. Multi-functional pneumatic jig, different test can be completed by replacing the clip, convenient and quick, stretching and bursting not need to replace the sensor.

5. This instrument uses open architecture, the user can edit the required test procedure, test report, data analysis formula according to the categories and characteristics of the test material, so as to meet the requirements of different test method. The hardware and software of the instrument can be used freely to complete different test requirements.The man-machine dialogue interface operation, guides the tester to complete the test, and can easily upgrade and maintain the instrument through online support.

6. The device is equipped with digital setting and automatic positioning.

7. Various protective measures are adopted for the instrument:

The protection device of the upper and lower limit of the beam;

Clamp protection device;

Set up displacement and load limit software protection;

Sensor overload protection;

Protection of sample load software;

Overcurrent, overpressure protection.

The main components are monitored in real time. Therefore, the instrument is safer and more reliable.

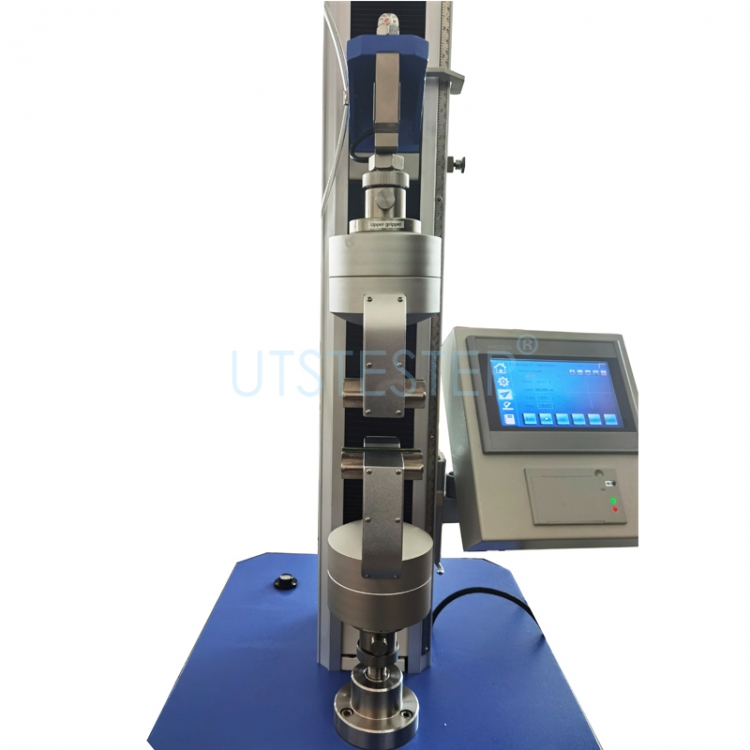

8. The instrument host adopts touch screen control, easy to operate, and built-in printer for easy use.

9. The device can choose tablet computer, wireless wifi control operation or control via android phone.

10. Column shell in aluminum material and deal with high temperature & solidify injection on the machine surface, which has good scratch-resistant advantage and no easy to fade.

Key Specifications

Accessory

Materials To Be Tested

FAQ

Q1.  Can we extract data to PC (without the need for an additional software) and we can print the results directly from the machine.
A1. Extract data to PC should be on basis of software. And the Simple test results can be printed out from machine. But the detailed test results including test curve should be printed out by software on computer.

Q2. Is the software is capable of showing real time progress of the test via a stress strain chart.
A2. Yes. The software is capable of showing real time progress of test via a stress strain chart.

Q3. Is An extensometer included in your quotation.
A3. Extensometer is optional accessory which depends on the specified materials tested.

Q4. I am looking for a machine which will test textile fabrics with a facility of checking the tensile strength, seam slippage and seam strength. I like to test ASTM D 434 and ASTM D 5034 .
A4. M002A with 2.5kg load cell will be right equipment for reference. ASTM D 434 and ASTM D 5034 are the regular tests for textiles quality control.

Q5. When we will select the test method it will automatically directs . Like that whether your machine is having the provision to perform the test .
A5. Yes, sure. This equipment is automatic configuration.
