To determine the resistance to tensile rupture strength and rupture elongation property for cotton, fur, fiber, silk, wool fiber fabric, non-woven, paper, braid, etc.
Features
1. The main machine of the instrument is controlled by touch screen, and the operation is intuitive and simple, and the built-in printer is convenient to use.
2. ac servo drive, high-precision trapezoidal screw, can do a wide range of speed setting, suitable for testing the mechanical properties of various materials.
3. High-precision sensor with force measurement accuracy higher than 0.2%F·S.
4. Equipped with online interface, we are specialized in developing powerful testing software for materials, which can not only print and save test sample reports, but also provide test data for material analysis tests.
5. according to customer needs to provide a variety of standard test functions, can also be customized according to customer requirements.
6. No sensor replacement is required for stretching and bursting test.
7. with software copyright.
Standards
GB/T 3923.1 determination of breaking strength and elongation at break (strip method)
GB/T 3923.2 determination of fracture strength (scratch sample method)
GB/T 3917.2 trouser specimen (single seam) -- determination of tear strength
GB/T 19976 -- determination of bursting strength -- steel ball method
ISO 13934.1 determination of breaking strength and elongation at break by strip method
ISO 13934.2 determination of fracture strength by scratch method
ISO 13935.1 determination of thread strength by spline method
ISO 13935.2 determination of thread strength by scratch method
ASTM D5035 standard test method for breaking strength and elongation at break (strip method)
ASTM D2261 method for determination of tear strength of fabrics
Key Specification
Model
|
M002C
|
Max. Capacity
|
500N 2500N 5000N
|
Effective stroke
|
600mm
|
Test Method
|
CRE Principle (Constant Rate of Elongation), microcomputer control, liquid crystal Chinese display, support of online communication
|
Test force range
|
Full stroke 1% ~ 100%
|
Force Accuracy
|
≤+/-0.2% F· S
|
Stretch speed
|
0.1~500mm/min
|
Max elongation
|
600mm
|
Sample clamp mode
|
Manual clamp
|
Power Supply
|
AC 220V 50/60HZ 200W
|
Dimensions(WxDxH)
|
670 x 480 x 1440 mm
|
Weight
|
120kg
|
Accessory
Standard accessories
|
Manual Grips
|
1pc
|
English Operation Software
|
1pc
|
Cable Connect with PC
|
1pc
|
Load Cell
|
1pc
|
Optional accessories
|
Desk Top Computer
|
Optional
|
Other Grips and Load Cell
|
Optional
|
Extensometer
|
Optional
|

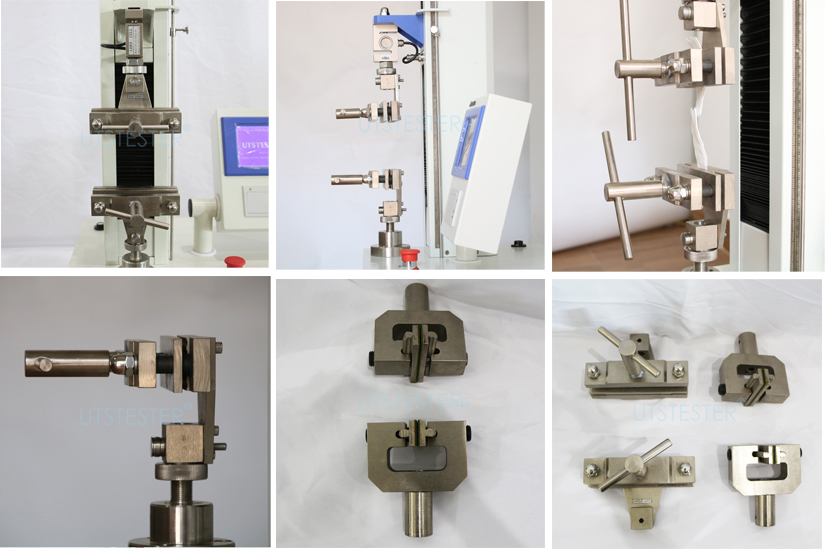

Demonstration
Materials To Be Tested
FAQ
Q1. Can we extract data to PC (without the need for an additional software) and we can print the results directly from the machine.
A1. Extract data to PC should be on basis of software. And the Simple test results can be printed out from machine. But the detailed test results including test curve should be printed out by software on computer.
Q2. Is the software is capable of showing real time progress of the test via a stress strain chart.
A2. Yes. The software is capable of showing real time progress of test via a stress strain chart.
Q3. Is An extensometer included in your quotation.
A3. Extensometer is optional accessory which depends on the specified materials tested.
Q4. I am looking for a machine which will test textile fabrics with a facility of checking the tensile strength, seam slippage and seam strength. I like to test ASTM D 434 and ASTM D 5034 .
A4. M002A with 2.5kg load cell will be right equipment for reference. ASTM D 434 and ASTM D 5034 are the regular tests for textiles quality control.
Q5. When we will select the test method it will automatically directs . Like that whether your machine is having the provision to perform the test .
A5. Yes, sure. This equipment is automatic configuration.
