Snap Button Pull Tester M004A

Model :
M004A
Brand :
UTSTESTER
Certificate :
CE, ISO 17025
Lead Time :
10-15 Days
Payment :
TT, LC
Original Region :
MADE IN CHINA
Port Of Dispatch :
CHINA PORT
Standards :
16 CFR 1500.51~53, ASTM F963, EN71-Part 1, M&S P115A

Inquiry

Overview

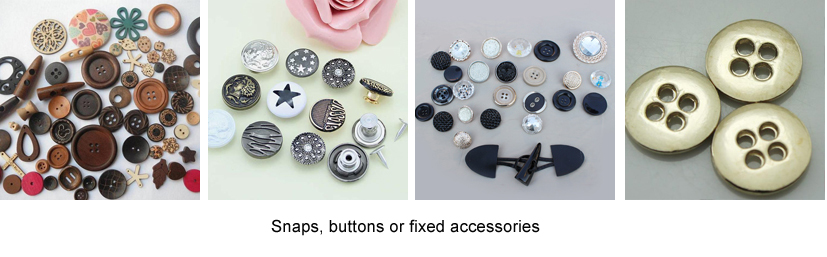

To determine the holding or breaking strength of the snaps, buttons or fixed accessories attached onto garments. Aim at providing the strict reference basis for garments manufacturers, to ensure the snaps, buttons and fixed accessories can be fixed on garments properly, so as to prevent from snap button fall off and swallow risks for infants.

Working Principle

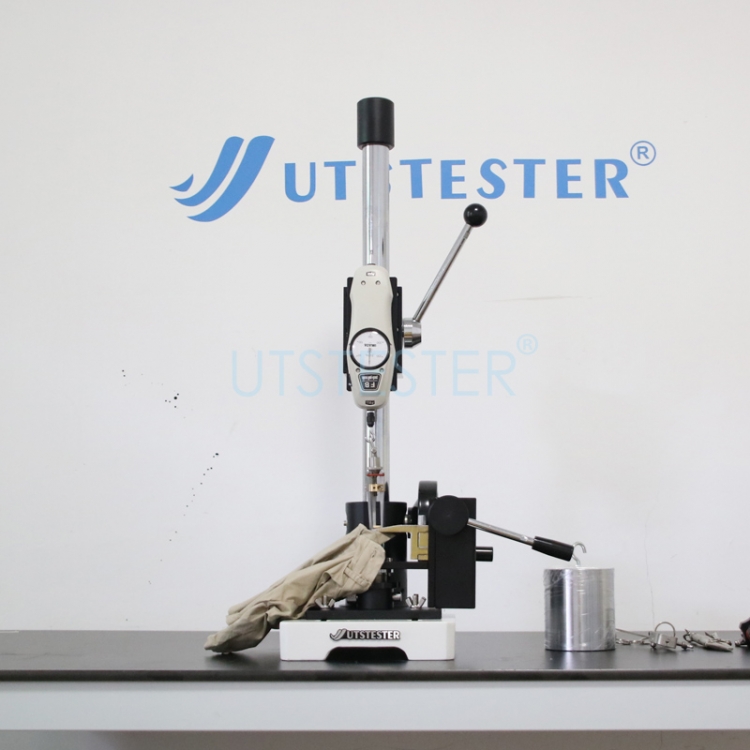

Clamp the sample attached with attachment( like snap button) on the fabric fixture at the bottom of machine. Select the suitable fixture and install it onto push and pull force gauge. Clamp the attachment on the fabric and apply the pulling force to pull the attachment away from fabric and measure the force value. Or apply a certain of pulling force value and time to test whether the attachment can firmly connect to fabric.

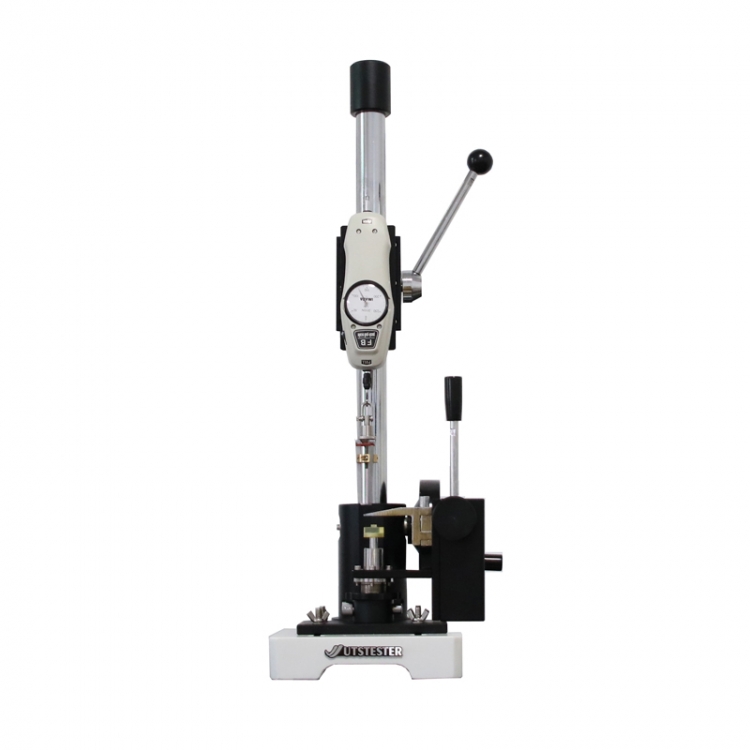

This unit consists of a high precision force gauge, a firm stand and various grips. The specimen accorded with test standards is to be fixed horizontally, then conduct the vertical tensile test on various buttons on garments. The detachment of buttons or other fixed accessories may be classed as small parts, meanwhile, the broken small parts may be required sharp edge and sharp point tests. Hence, extra testing instruments may be recommended, including below:

Sharp Edge Tester (T001)

Small Parts Cylinder (T003)

Sharp Point Tester (T004)

It is widely used in snaps, buttons, toys testing for many brands like H&M, NIKE, NEW BALANCE, LIVIS, NEXT, GAP, etc.

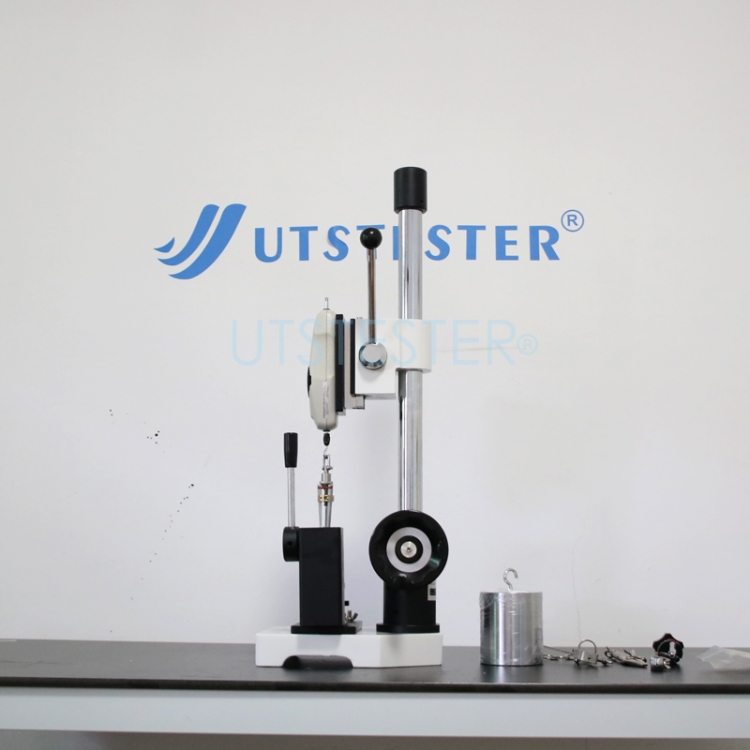

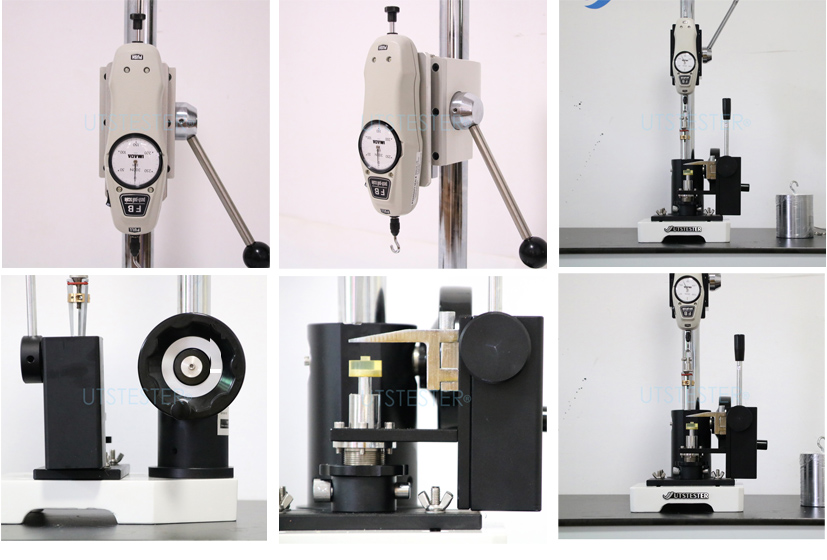

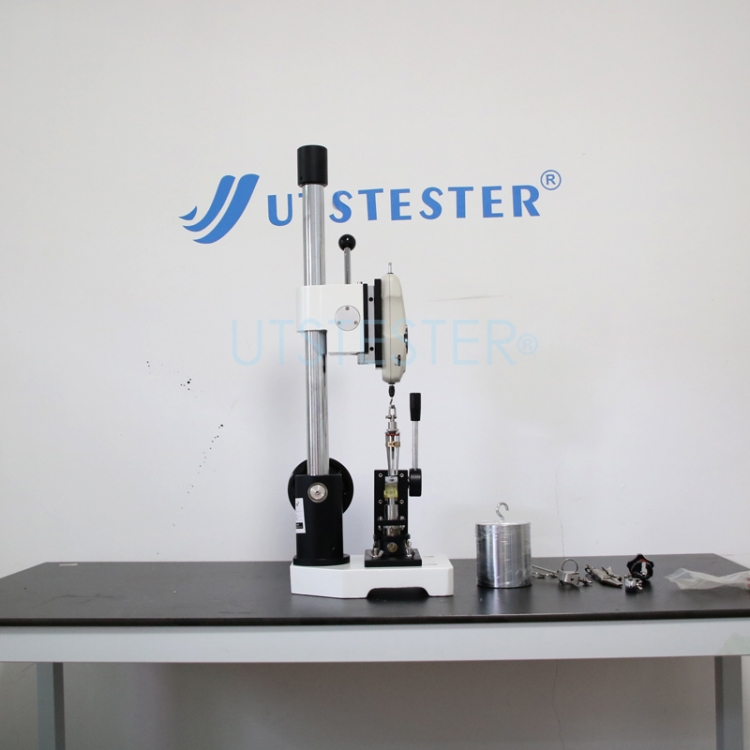

Product Presentation

Features

1. Comply with standards 16 CFR 1500.51~53, ASTM F963, EN71-Part 1, M&S P115A.

2. Manually operation, available to install various fixtures to grip samples.

3. This unit consists of a high precision force gauge, a firm stand and various grips.

4. Calibration weight equipped for regular calibrate machine.

5. This device is durable with stable life service time.

Key Parameters

Model	M004A
Push pull force gauge	30kg/300N
Lifting and drop stroke	300mm
Dimensions	32 x 30 x 74 cm
Net Weight	35kg
Standards	16 CFR 1500.51~53 ASTM F963 EN71-Part 1 M&S P115A

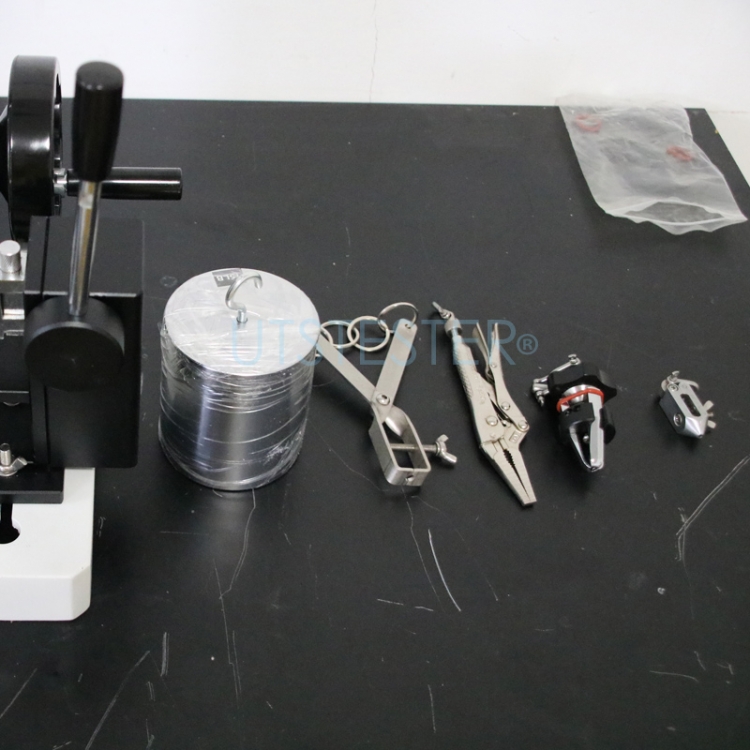

Accessories

Model	Accessory	Description
FB-30K	Imada Force gauge FB-30K	Display force value
MT01	Calibration load weight 15LB	To calibrate the accuracy of force value
MT02	Base fabric fixture	To clamp the various size of snap button
MT03	Upper Long Nose Vise Grip	To clamp trinketry, like retaining ring, etc.
MT04	Three Pronged Grip	Able to adjust clamping month. To clamp various size attachment
MT05	Flat Grip	To clamp various size attachment
MT06	Universal female button grip	Used for testing the concave buttons with five claws
MT07	Universal button stud	Used for testing the convex button with five claws
MT08	Two Pronged Grip (Optional accessory)	Able to adjust clamping month. To clamp various size attachment
MT09	Seam fixture (Optional accessory)	Cloth clamp, round cake tongs, test tension with seam
MT10	Multifunction Vise Clamp (Optional accessory)	For clamping different sample
MT11	Small part cylinder (Optional accessory)	Determine whether its small part
MT12	Zipper test kit (Optional accessory)	Used to do zipper test
