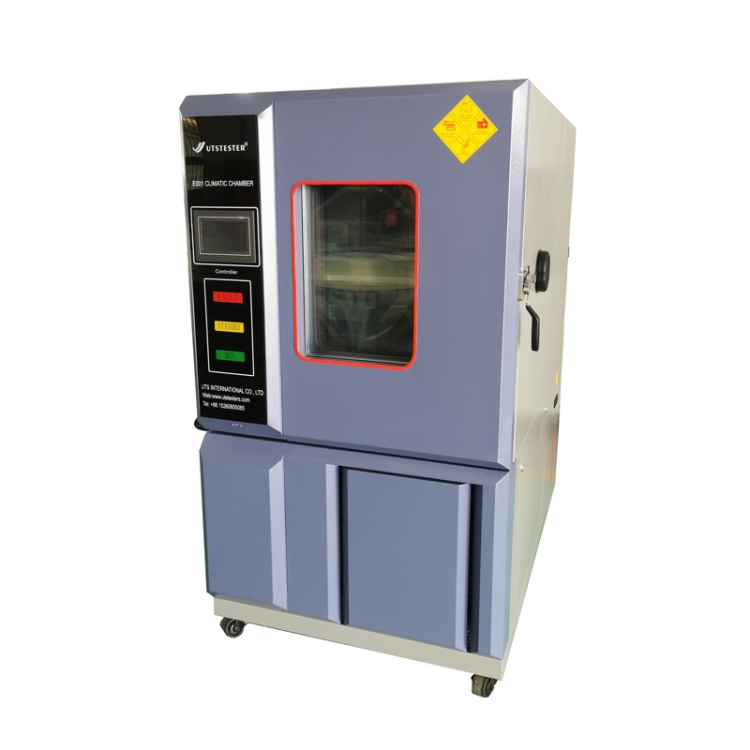

Programmable Climatic Test Chamber E001N-408L

Programmable Climatic Test Chamber E001N-408L

Model :
E001N-408L
Brand :
UTSTESTER
Certificate :
IEC60068-2-38 Temperature loops IEC60068-2-78 Constant humidity and heat MIL-STD-202G-103B Humidity test IEC60068-2-30 Humid heat temperature loop EIA-364-31C Humidity resistance
Lead Time :
15-30 Days
Payment :
TT, LC
Original Region :
MADE IN CHINA
Port Of Dispatch :
CHINA PORT
Standards :
CE, ISO 17025

Inquiry

Overview

Programmable Climatic Test Chamber E001N-408L

Application

Constant temperature and humidity test chamber can simulate a variety of environmental conditions, can help a variety of products and raw materials to detect heat, humidity, dry, low temperature and other performance, based on new energy, electronics, chemicals, automobiles, ships and other large industries and applicable to printing, electronics, metals and other industries.

Standards

GB/T2423.2-89 High-temperature test method Bb

GB2423.1-89 Test A: Low-temperature test method 6

IEC60068-2-1 Low temperature test method Ab

GJB150.4-1986 Low temperature test

EIA-364-59 Low temperature test

IEC60068-2-38 Temperature loops

IEC60068-2-78 Constant humidity and heat

MIL-STD-202G-103B Humidity test

IEC60068-2-30 Humid heat temperature loop

EIA-364-31C Humidity resistance

GB/T2423.3 Test method for constant humidity and heat

GJB150.4-86 Military equipment environmental test method low temperature test

GJB150.3-86 Military equipment environmental test method high temperature test

GB/T2423.34-2005 Temperature and humidity combined cycle test method

Features

1. With USB download function, with RS232 interface, curved software, no need for recorder

2. With vacuum glass observation window, more effective direct observation function

3. Refrigerant servo valve flow calculation control. Energy saving 30%, with a dormant function of the resident flow time, energy saving 50% or more

4. Anti-electromagnetic interference controller with SGS certification; with more than 32 numbers of soft program matching, with multiple development and software upgrade function

5. Defrost cycle (800 defrost cycles once, each defrost guaranteed within 2 hours, integrated test to achieve 25% energy saving)

Optional Models

Model	E001N-80L	E001N-150L	E001N-225L	E001N-408L	E001N-800L	E001N-1000L
Inner box volume	80L	150L	225L	408L	800L	1000L
Test chamber size (W x H x D)cm	40×50×40	50×50×60	60 x 75 x 50	80 x 850 x 60	100 x 100 x 80	100×100×100
External size (DWH) (cm)	13375172	149* 70*155	149800168	159100185	179120197	199120197
Weight(kg)	180	210	260	330	450	500
Power supply	1 Phase, AC 220V 50/60Hz		3 Phase, AC, 380V, 50/60HZ

Key Specifications

1. Temperature
The temperature range	-20 ℃ ~ + 150 ℃ / -40℃ ~ + 150 ℃ / -70℃ ~ + 150 ℃
Temperature deviation	≦ ± 2.0 ℃
Temperature fluctuations	± 0.5 ℃
Temperature evenness	≦ 2.0 ℃
cooling rate	Heating rate: - 20 ℃ to + 100 ℃ about 35 min (At no-load state, environmental temperature + 25 ℃) Cooling rate: from + 20 ℃ to - 20 ℃ about 45 min (At no-load state, environmental temperature + 25 ℃)
2. Humidity
Humidity range	20%R.H～98%R.H
Humidity deviation	±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH）
Humidity uniformity	±3.0％RH (No load)
Humidity fluctuation	±2.0％RH
The temperature and humidity performance test is based on the relevant regulations of iec 60068-3 standard.The sensor is placed at the outlet of the unit.
Chamber Structure
Consist	The test box adopts the whole structure form, that is, the test box consists of three parts: heat preservation box body, independent refrigeration unit and electric control cabinet Composition.
Cabinet size	Inner box size: W 1000 x H 1000 x D 800 mm Outer box size: W 1200 x H 2035 x D 1815mm (excluding machine stand)
Heat preservation box	External wall material: high quality carbon steel plate with electrostatic color spray treatment on the surface; Inner wall material :SUS304# fog-faced stainless steel plate; Insulation material: hard polyurethane foam insulation layer + glass fiber.
Chamber door	Single door, left open, add heating wire to the door frame to prevent condensation at the door frame at low temperature.
observation window	W 460 x H 560mm observation window is installed on the door of the box. Multi-layer hollow electrothermal coated glass can effectively keep warm and prevent condensation.
Lighting device	LED lighting device, installed in Windows
Heater	High quality nickel-chrome wire electric heater, contactless control mode (SSR).
Humidifier	Water basin heating and humidifying method; Stainless steel armor heater; Heater control mode: contactless control mode (SSR); Water level control device, heater dry - burning device.
The condensate outlet hole	equipped with the studio condensate and the unit condensate drain hole.
Electrical outlet & cord hole	One for each side of left and right chamber, diameter 50mm, equipped with rubber isolation plug and rubber cover.
Sample frame	Two layers of stainless steel sample frame with adjustable height and carrying weight of 30kg/ layer.
Moving castor	Including moving castor
Power distribution control cabinet.	General power circuit breaker and overtemperature protector
Complement water system	Water pump provide automatic water supply
