Nonwoven liquid penetration tester used for testing liquid penetrability of various sanitary thin nonwovens.
Standards
FZ/T 60017
GB/T 24218.8
GB/T 24218.13
GB/T 24218.14
Features
1, liquid crystal display, simple interface, easy operation, equipped with metal keys.
2. The penetration times of 1-5 tests can be set, and the interval time of tests can be set to 1-99 seconds.
3. When the instrument is started with one button, the setting test times are completed continuously according to the standard.
4. Adopt single chip microcomputer control to realize automatic collection, calculation and preservation of experimental results.
5. Equipped with thermal printer, you can check and print experimental results at any time.
6. The penetrating disc is processed with special plexiglass, and its weight is guaranteed to be 500g±5g.

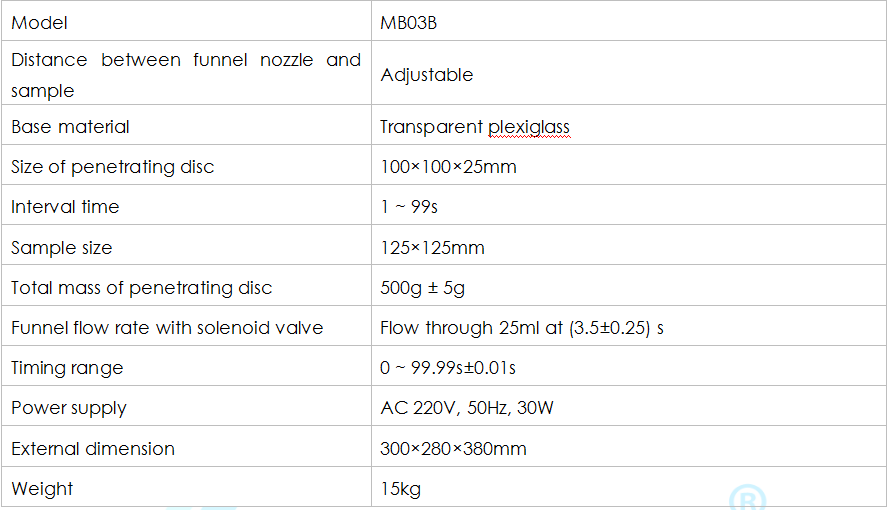

Key Specifications
Applications
Nonwoven liquid penetration tester is apply to testing liquid penetrability of various sanitary thin nonw.o.vens
