Horizontal Flammability Test Equipment M016A

Horizontal Flammability Test Equipment M016A

  • Model :

  • Brand :

  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

  • Port Of Dispatch :

    China Port
  • Standards :

    ISO 3795 JIS D1201 FZ/T 01028 GB 8410 GB/T 20953 FMVSS 302 SAE J369 GMW3232 ASTM D5132

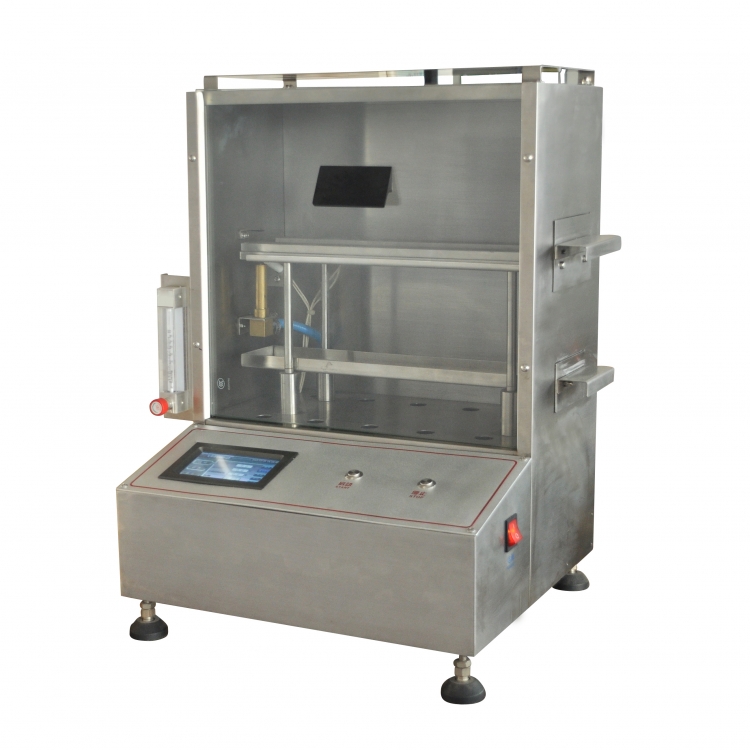

M016A Horizontal Flammability Tester is to determine the horizontal burn rates and burn resistance of textiles, particularly those for automotive interior use. It is the flammability test about the required time which flame spreads at horizontal direction to the specified distance.

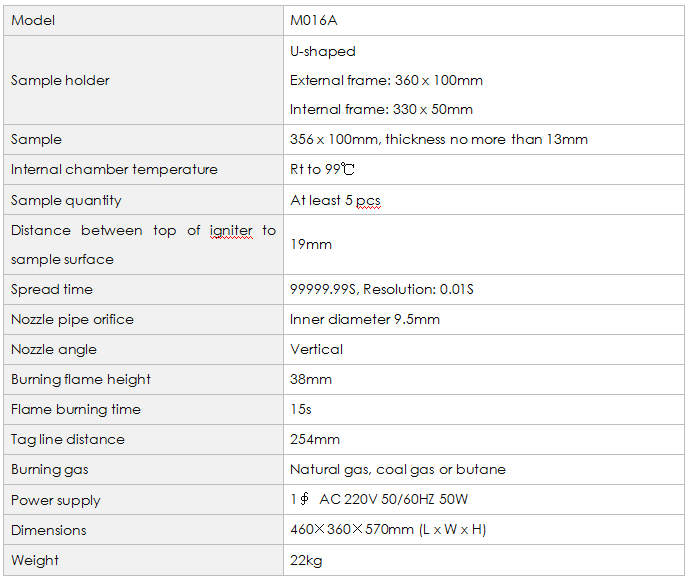

Key Specifications

Support Services

UTS provide the complete support for the full life of your M016A Horizontal Flammability Tester:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Related Products




Test Principle

Horizontally clamp sample on the U shape holder, ignite free end of sample with specified height of flame inside test chamber for 15 seconds, check whether the flame on sample has distinguished or not, and when the flame distinguished and burning distance of sample and the needed burning time to get this distance.


ISO 3795 JIS D1201 FZ/T 01028 GB 8410 GB/T 20953 FMVSS 302 SAE J369 GMW3232 ASTM D5132

1. Machine in 1.5mm imported brushed stainless steel material with the advantages of resistance to heat & smoke erosion and easy for cleaning.

2. Large color touch screen display.

3. Heat resistance observation door in front of test chamber is easy to control for operator.

4.Control panel adopts special aluminum processed and equipped with metal button, beautiful and no easy to break.

5. Nozzle adopts B63 materials, Corrosion resistance, without deformation and rust.

6. Adjustment for height of flame adopts precision rotor flow meter control, flame is stable and easy to be adjusted.

M016A Horizontal Flammability Tester is applicable to the determination of:

various of fabric.
