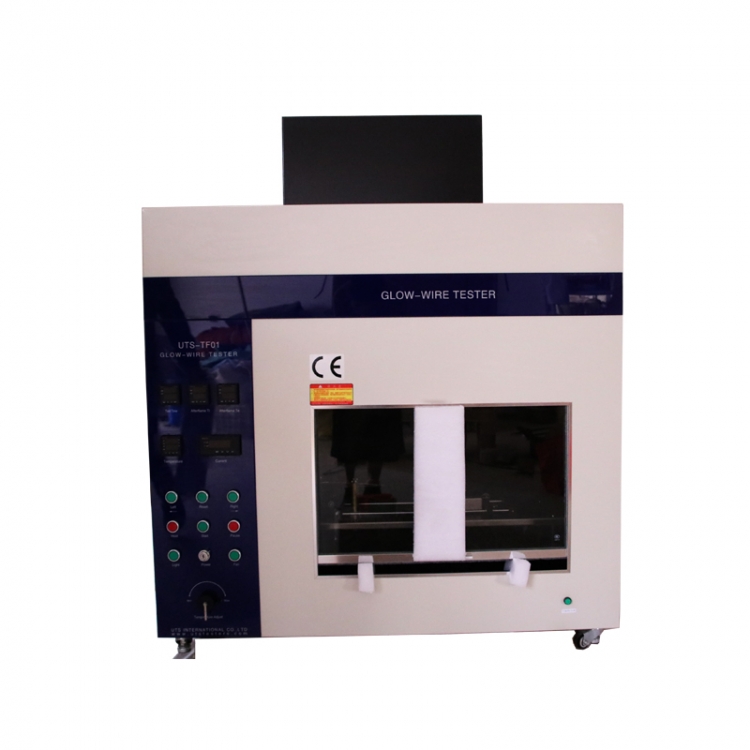

Glow Wire Tester TF01

  • Model :

    TF01
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025
  • Lead Time :

    15-30 Days
  • Payment :

    TT, LC
  • Original Region :

    MADE IN CHINA
  • Port Of Dispatch :

    CHINA PORT
  • Standards :

    IEC 60695-2-10; IEC60695-2-13; GB/T5169.10-2006; GB/T5169.11-2006; GB/T5169.12-2006; GB/T5169.12-2006; GB 4706.; UL746A
Inquiry

Operational Video


Overview

Glow wire tester is to assess the fire hazard affected by thermal stress which is generated from the heat source of glow-wire component or overload resistance within short time. Widely applicable for testing fire hazard test for electrical and electronic products, household appliances and their materials, also non-flame ignition test, so as to determine the related materials’ glow wire ignition temperature, flammability and flammability index.


Test Standards

IEC 60695-2-10; IEC60695-2-13; UL746A
GB/T5169.10-2006; GB/T5169.11-2006; GB/T5169.12-2006; GB/T5169.12-2006; GB 4706.


Application

Electrical equipment and its components and parts, solid electrical insulating materials and other solid combustible materials


Features

1. Adopt 2mm thick galvanized cold plate which shaped by Germany trumpf CNC machining center, with beautiful and high grade appearance.
2. Outdoor grade powder baking technology, which enhance anti-smog corrosion resistance ability. High quality and without color changing.
3. Equipped with German imported temperature sensor used in airplane and resistance to high temperature with longer service life.
4. High precision temperature control technology to control temperature error within 2℃.
5. PLC + Step motor control stroke, accurate location and without buffer.

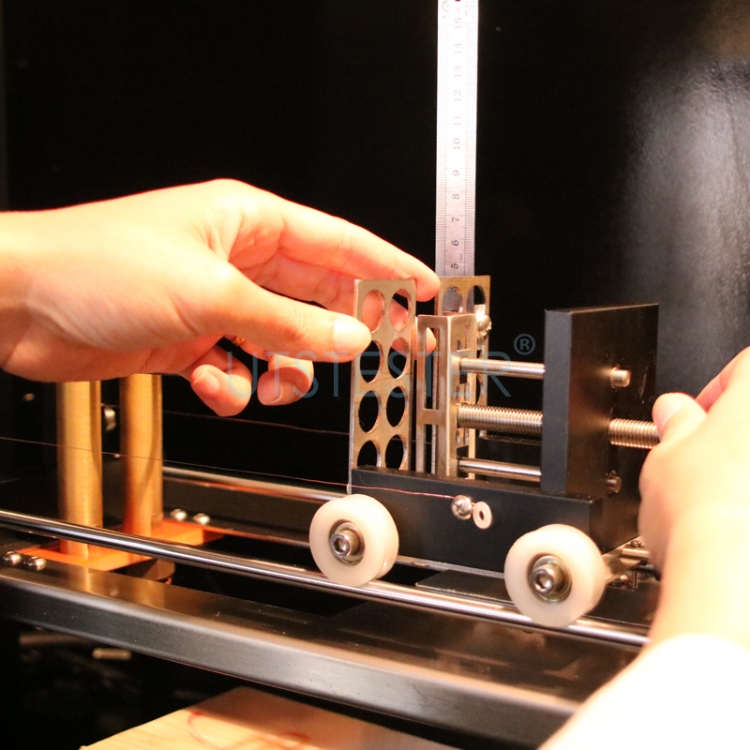

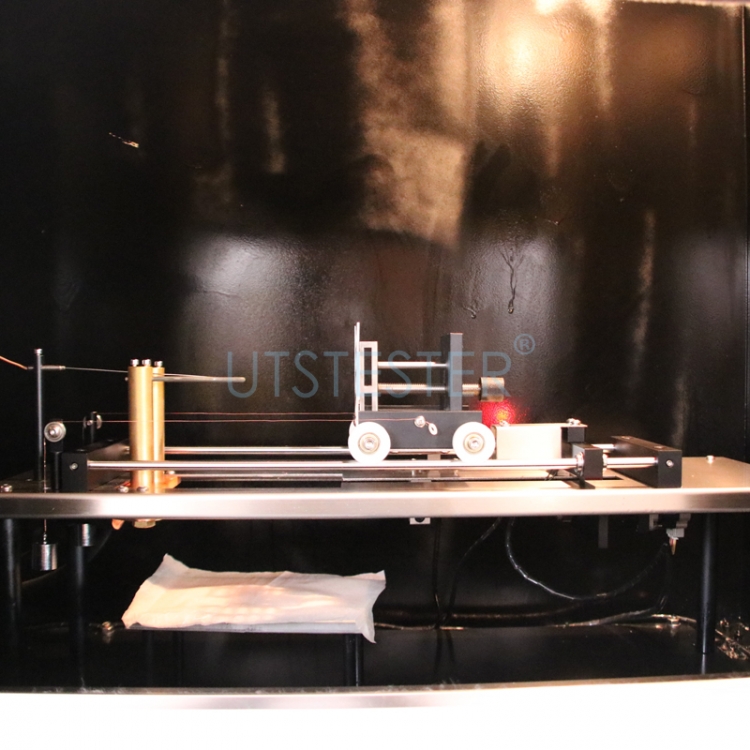

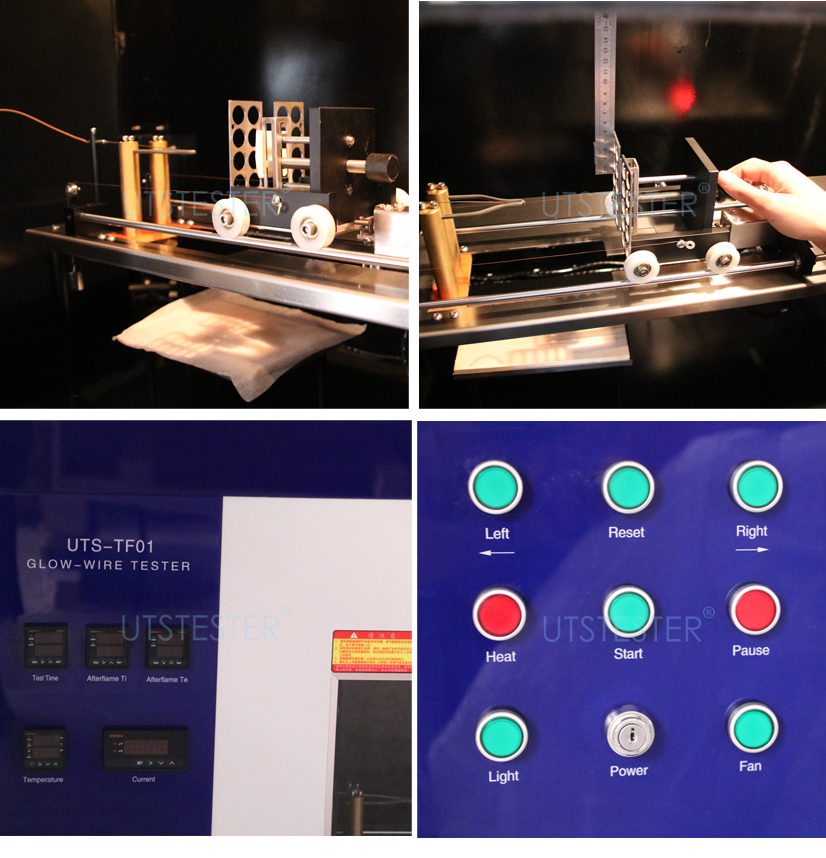

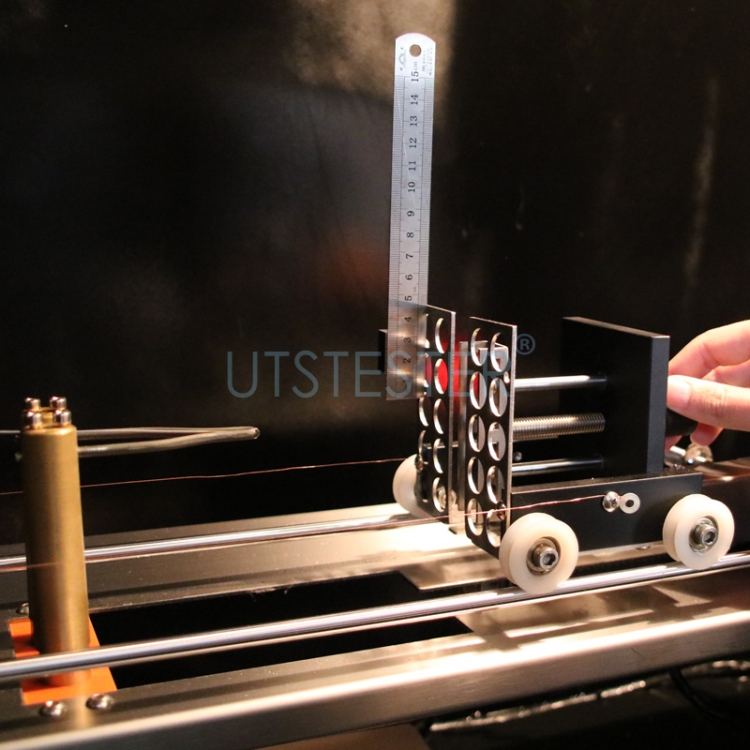

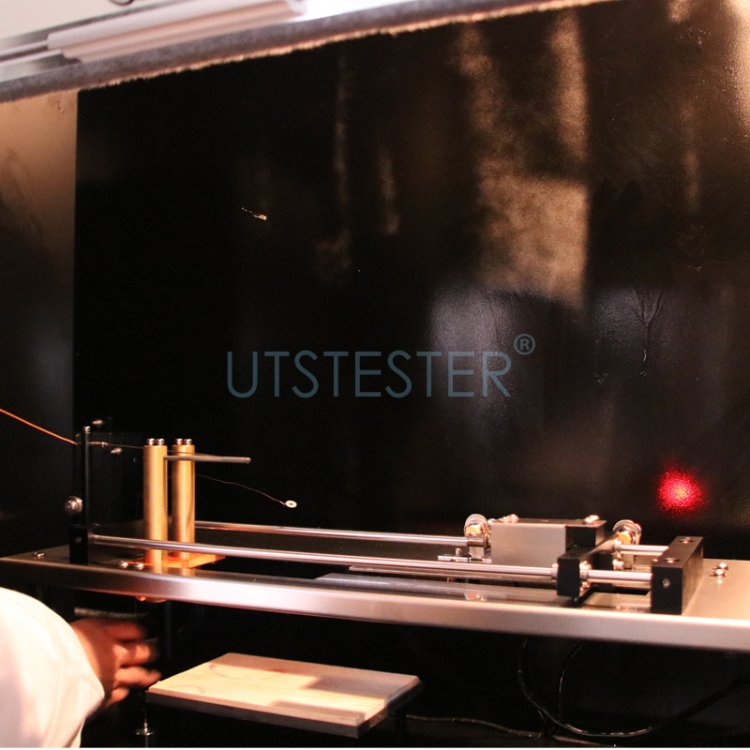

Demonstration

Specifications

Model

UTS-TF01

Temperature range

50~1050

Temperature deviation

±2

Glow wire

Φ4mm Ni/Cr(80/20)

(Professional mold forming, high dimensional precision)

Thermalcouple

Φ1.0mm K type(Original imported. Higher serve life)

Sample test pressure

1.0N±0.1N

Sample moving speed

10mm /s~25mm /s

(Available with forward and backward separate speed)

Applying temperature time

0.01s 99.99s

Ignition time range

0.1s~99.9s

Sustained combustion time range

0.1s~99.9s

Outlet diameter

100mm

Power

AC 220V  50HZ   1 2wire  10A

Inner dimension

112* 60 * 102(W*D*H)

External dimension

112 * 65* 140 (W*D*H)

Weight

150kg
